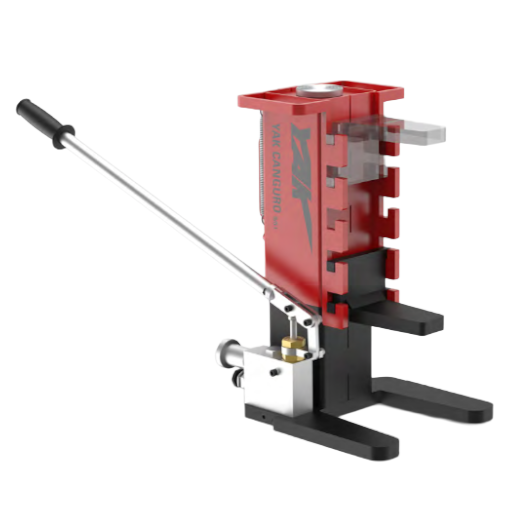

YAK CANGURO – Hydraulic Jack
Hydraulic jack with hand pump. Very flexible operation thanks to the adjustable lifting bracket that can be put in 9 different positions exploiting maximum piston stroke. Fitted with handle and wheels which make it even more practical to use. 70 and 120 mm extensions are also available on request. Ideal for reliable and safe assistance on forklift trucks and public works vehicles.

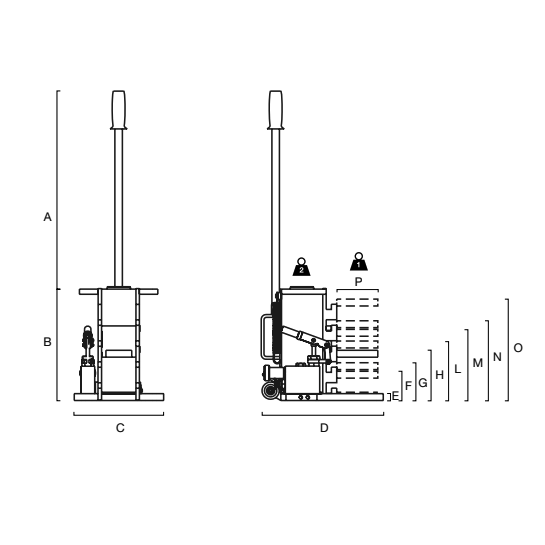

| SPECIFICATIONS | Capacity | Net Weight | Stroke | DIMENSIONS | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | L | M | N | O | P | ||||
| YAK CANGURO | 9/5 t, 9.9/5.5 ton | 30 kg, 66 lb | 150 mm, 5.91 in | 600 mm, 23.63 in | 340 mm, 13.39 in | 260 mm, 10.24 in | 345 mm, 13.58 in | 25 mm, 0.98 in | 90 mm, 3.54 in | 115 mm, 4.53 in | 150 mm, 5.91 in | 175 mm, 6.89 in | 210 mm, 8.27 in | 235 mm, 9.25 in | 300 mm, 11.81 in | 120 mm, 4.72 in |
