| SPECIFICATIONS |
Capacity |
Net Weight |

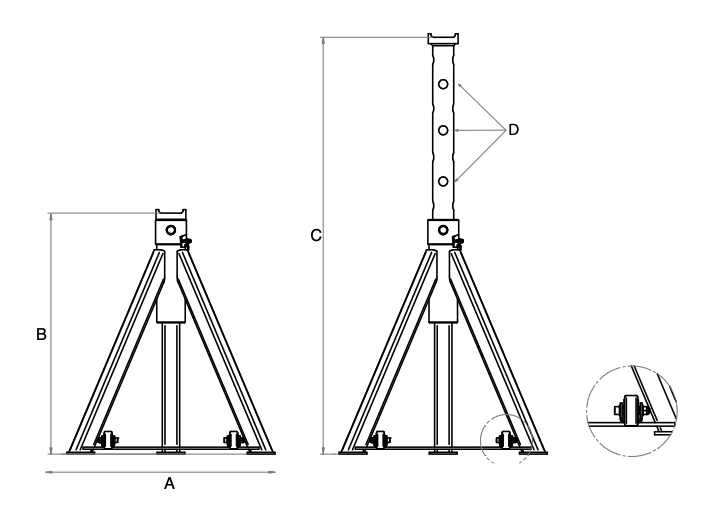

DIMENSIONS |
Wheels |
| A |
B |
C |
D |
| AS05-048 |
5 t, 5.5 ton |
7 kg, 15.4 lb |
340 mm, 13.39 in |
310 mm, 12.2 in |
480 mm, 18.9 in |
3 |
|
| AS05-073 |
5 t, 5.5 ton |
9.5 kg, 20.9 lb |
450 mm, 17.72 in |
445 mm, 17.52 in |
730 mm, 28.74 in |
5 |
|
| AS05-120 |
5 t, 5.5 ton |
16 kg, 35.3 lb |
680 mm, 26.77 in |
695 mm, 27.36 in |
1200 mm, 47.24 in |
8 |
Yes |
| AS10-048 |
10 t, 11 ton |
10 kg, 22 lb |
350 mm, 13.78 in |
310 mm, 12.2 in |
480 mm, 18.9 in |
3 |
|
| AS10-073 |
10 t, 11 ton |
13.5 kg, 29.8 lb |
440 mm, 17.32 in |
445 mm, 17.52 in |
730 mm, 28.74 in |
5 |
|
| AS10-120 |
10 t, 11 ton |
21.5 kg, 47.4 lb |
680 mm, 26.77 in |
695 mm, 27.36 in |
1200 mm, 47.24 in |
8 |
Yes |
| AS15-048 |
15 t, 16.5 ton |
13 kg, 28.7 lb |
350 mm, 13.78 in |
310 mm, 12.2 in |
480 mm, 18.9 in |
3 |
|
| AS15-073 |
15 t, 16.5 ton |
17.5 kg, 38.6 lb |
440 mm, 17.32 in |
445 mm, 17.52 in |
730 mm, 28.74 in |
5 |
|
| AS15-120 |
15 t, 16.5 ton |
27.5 kg, 60.6 lb |
680 mm, 26.77 in |
695 mm, 27.36 in |
1200 mm, 47.24 in |
8 |
Yes |
| AS20-048 |
20 t, 22 ton |
13.5 kg, 29.8 lb |
350 mm, 13.78 in |
310 mm, 12.2 in |
480 mm, 18.9 in |
3 |
|
| AS20-073 |
20 t, 22 ton |
18.5 kg, 40.8 lb |
440 mm, 17.32 in |
445 mm, 17.52 in |
730 mm, 28.74 in |
5 |
|
| AS20-120 |
20 t, 22 ton |
30 kg, 66.1 lb |
680 mm, 26.77 in |
695 mm, 27.36 in |
1200 mm, 47.24 in |
8 |
Yes |
