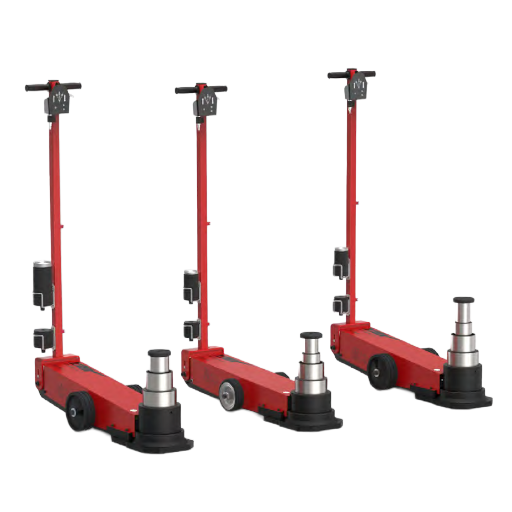

YAK 318/S | 415/R | 418/N – Air Hydraulic Jacks
Air hydraulic jack for heavy vehicles, practical and effective. The pistons move back automatically; the two descent valves guarantee perfect holding in all situations and controlled speed under load. A complete range of jacks for all stroke and capacity requirements. Ideal for workshops, tyre repairers and bodywork shops.

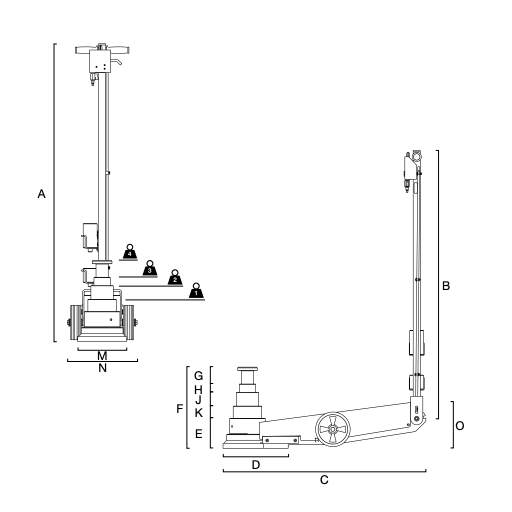

| SPECIFICATIONS | Capacity | Net Weight | Working Air Pressure | Air Waste | DIMENSIONS | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | J | K | M | N | |||||
| YAK 318/S | 80/50/25 t, 88/55/28/17 ton | 80 kg, 180 lb | 8-10 bar, 116-145 psi | 600 nl/min | 1456 mm, 57.32 in | 1311 mm, 51.61 in | 997 mm, 39.25 in | 320 mm, 12.60 in | 182 mm, 7.17 in | 399 mm, 15.7 in | – | 82 mm, 3.22 in | 71 mm, 2.80 in | 240 mm, 9.45 in | 240 mm, 9.45 in | 217 mm, 8.54 in |
| YAK 415/R | 70/43/23/13 t, 77/47/25/14 ton | 75 kg, 165 lb | 8-10 bar, 116-145 psi | 600 nl/min | 1420 mm, 55.91 in | 1310 mm, 51.57 in | 1000 mm, 39.37 in | 320 mm, 12.60 in | 150 mm, 5.91 in | 400 mm, 15.74 in | 67 mm, 2.64 in | 56 mm 2.20 in | 68 mm, 2.68 in | 240 mm, 9.45 in | 240 mm, 9.45 in | 350 mm, 13.78 in |
| YAK 418/N | 80/50/25/15 t, 88/55/28/17 ton | 77 kg, 170 lb | 8-10 bar, 116-145 psi | 600 nl/min | 1420 mm, 55.90 in | 1310 mm, 51.57 in | 1000 mm, 39.37 in | 320 mm, 12.60 in | 182 mm, 7.17 in | 477 mm, 18.77 in | 90 mm, 3.54 in | 70 mm, 2.76 in | 71 mm, 2.80 in | 240 mm, 9.45 in | 240 mm, 9.45 in | 350 mm, 13.78 in |
