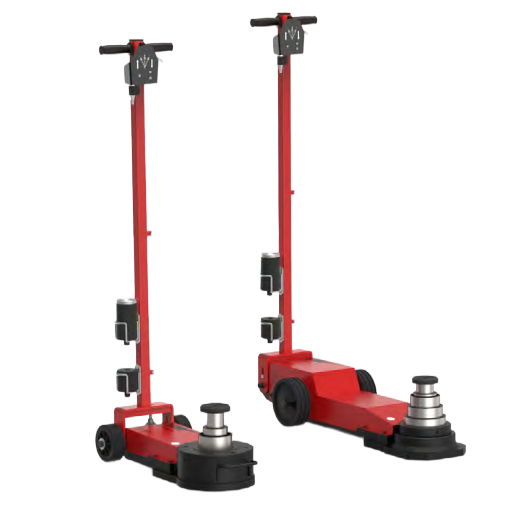

YAK 312 | 510 – Air Hydraulic Jacks
Air hydraulic jack for heavy vehicles, practical and effective. The pistons move back automatically; the two descent valves guarantee perfect holding in all situations and controlled speed under load. A complete range of jacks for all stroke and capacity requirements. Ideal for workshops, tyre repairers and bodywork shops.

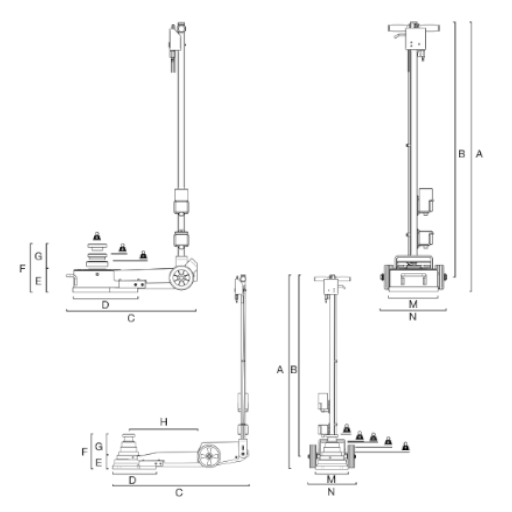

| SPECIFICATIONS | Capacity | Net Weight | Working Air Pressure | Air Waste | DIMENSIONS | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | M | N | |||||
| YAK 312 | 60/30/15 t, 66/33/17 ton | 44 kg, 97 lb | 8-10 bar, 116-145 psi | 600 nl/min | 1390 mm, 54.72 in | 1310 mm, 51.57 in | 660 mm, 25.98 in | 335 mm, 13.19 in | 120 mm, 4.72 in | 252 mm, 9.92 in | 132 mm, 5.20 in | – | 252 mm, 9.92 in | 345 mm, 13.58 in |
| YAK 510 | 44/32/22/14/8 t, 49/35/24/15/9 ton | 63 kg, 139 lb | 8-10 bar, 116-145 psi | 600 nl/min | 1385 mm, 54.53 in | 1310 mm, 51.57 in | 1000 mm, 39.37 in | 320 mm, 12.60 in | 100 mm, 3.94 in | 252.5 mm, 9.94 in | 152.5 mm, 6 in | 500 mm, 19.69 in | 240 mm, 9.45 in | 355 mm, 13.98 in |
