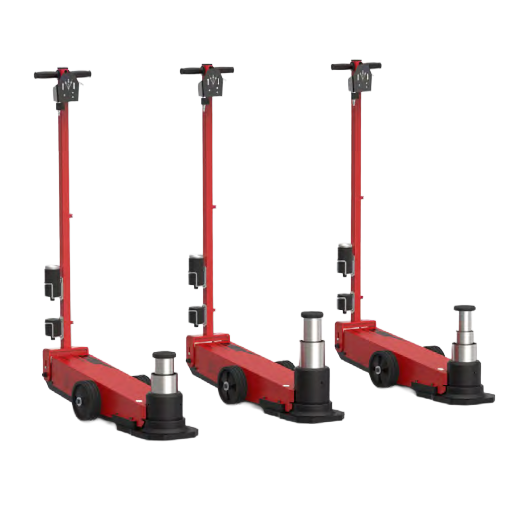

YAK 218/N | 222/N | 318/N – Portable Air Hydraulic Jacks
Air hydraulic jack for heavy vehicles, practical and effective. The pistons move back automatically; the two descent valves guarantee perfect holding in all situations and controlled speed under load. A complete range of jacks for all stroke and capacity requirements. Ideal for workshops, tyre repairers and bodywork shops.

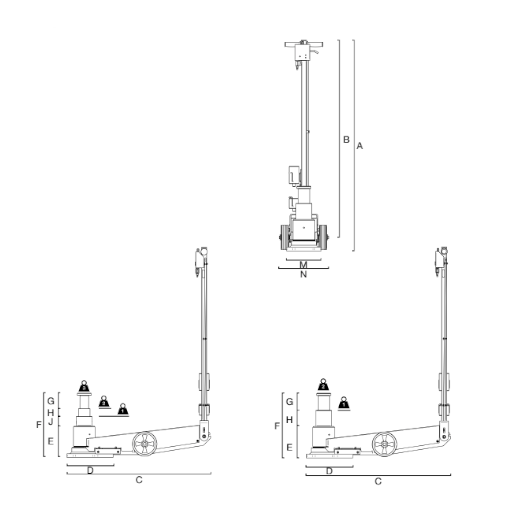

| SPECIFICATIONS | Capacity | Net Weight | Working Air Pressure | Air Waste | DIMENSIONS | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | J | M | N | |||||
| YAK 218/N | 60/30 t, 66/33 ton | 68 kg, 150 lb | 8-10 bar, 116-145 psi | 600 nl/min | 1455 mm, 57.28 in | 1310 mm, 51.57 in | 1000 mm, 39.37 in | 320 mm, 12.6 in | 181 mm, 7.13 in | 337 mm, 13.26 in | 82 mm, 3.32 in | 74 mm, 2.91 in | – | 240 mm, 9.45 in | 345 mm, 13.58 in |
| YAK 222/N | 60/30 t, 66/33 ton | 65 kg, 143 lb | 8-10 bar, 116-145 psi | 600 nl/min | 1455 mm, 57.28 in | 1310 mm, 51.57 in | 1000 mm, 39.37 in | 320 mm, 12.6 in | 221 mm, 8.70 in | 447 mm, 17.59 in | 117 mm, 4.61 in | 109 mm, 4.29 in | – | 240 mm, 9.45 in | 345 mm, 13.58 in |
| YAK 318/N | 60/30/18 t, 66/33/20 ton | 63 kg, 138 lb | 8-10 bar, 116-145 psi | 600 nl/min | 1455 mm, 57.28 in | 1310 mm, 51.57 in | 1000 mm, 39.37 in | 320 mm, 12.6 in | 180.5 mm, 7.11 in | 415.5 mm, 16.35 in | 90 mm, 3.54 in | 69.5 mm, 2.74 in | 75 mm, 2.95 in | 240 mm, 9.45 in | 345 mm, 13.58 in |
