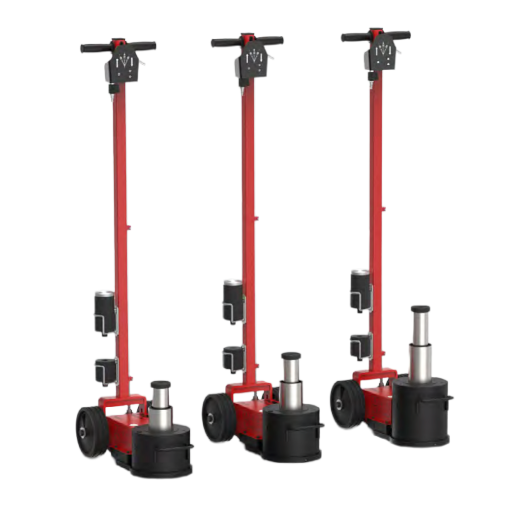

YAK 215/N | 217/N | 221/N – Portable Air Hydraulic Jacks
Air hydraulic jacks for heavy vehicles, lightweight and easy to handle, with removable handle. The pistons move back automatically; the two descent valves guarantee perfect holding in all situations and controlled speed under load. Our portable series par “excellence”, all the reliability and practicality of our jacks in a more compact version. Ideal for keeping on board the vehicle and for who provides road assistance. They can work with the vehicles’ own compressors.

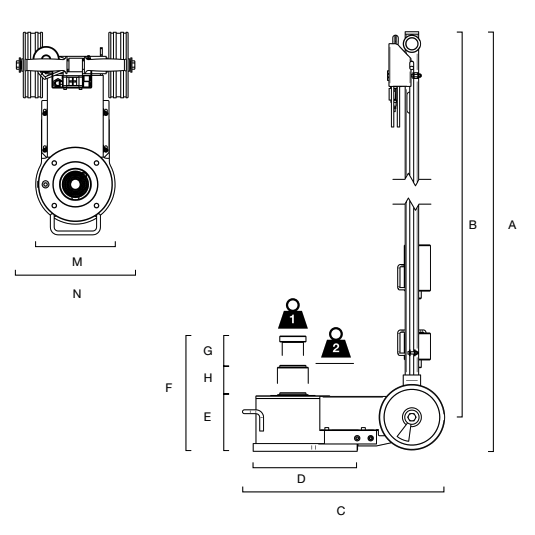

| SPECIFICATIONS | Capacity | Net Weight | Working Air Pressure | Air Waste | DIMENSIONS | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | M | N | |||||
| YAK 215/N | 40/20 t, 44/22 ton | 39 kg, 86 lb | 8-10 bar, 116-145 psi | 400 nl/min | 1400 mm, 55.12 in | 1311 mm, 56.61 in | 525 mm, 20.67 in | 325 mm, 12.80 in | 152 mm, 5.98 in | 370 mm, 14.7 in | 76 mm, 2.99 in | 71 mm, 2.80 in | 206 mm, 8.11 in | 310 mm, 12.20 in |
| YAK 217/N | 40/20 t, 44/22 ton | 41 kg, 90 lb | 8-10 bar, 116-145 psi | 400 nl/min | 1400 mm, 55.12 in | 1311 mm, 56.61 in | 525 mm, 20.67 in | 325 mm, 12.80 in | 174 mm, 6.69 in | 440 mm, 17.32 in | 88 mm, 3.46 in | 89 mm, 3.50 in | 206 mm, 8.11 in | 310 mm, 12.20 in |
| YAK 221/N | 40/20 t, 44/22 ton | 46 kg, 101 lb | 8-10 bar, 116-145 psi | 400 nl/min | 1400 mm, 55.12 in | 1311 mm, 56.61 in | 525 mm, 20.67 in | 325 mm, 12.80 in | 219 mm, 8.62 in | 469 mm, 18.46 in | 125 mm, 4.92 in | 125 mm, 4.92 in | 206 mm, 8.11 in | 310 mm, 12.20 in |
