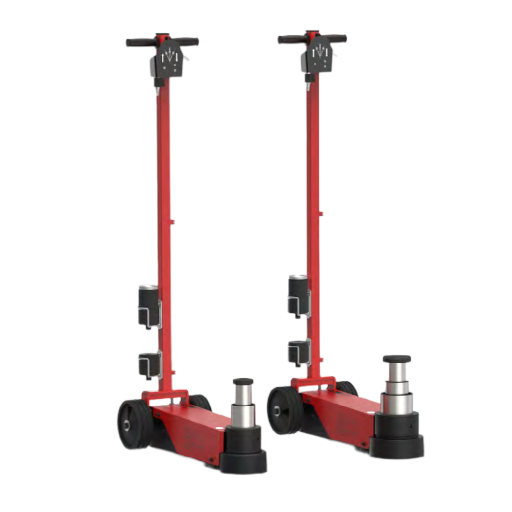

YAK 215/L | 315/L – Portable Air Hydraulic Jacks
Air hydraulic jack for heavy vehicles, practical and easy to handle. The pistons move back automatically; the two descent valves guarantee perfect holding in all situations and controlled speed under load. Designed especially to meet the specific needs of heavy vehicles with pneumatic suspensions of the latest generation for jobs where a compact size and power are a must.

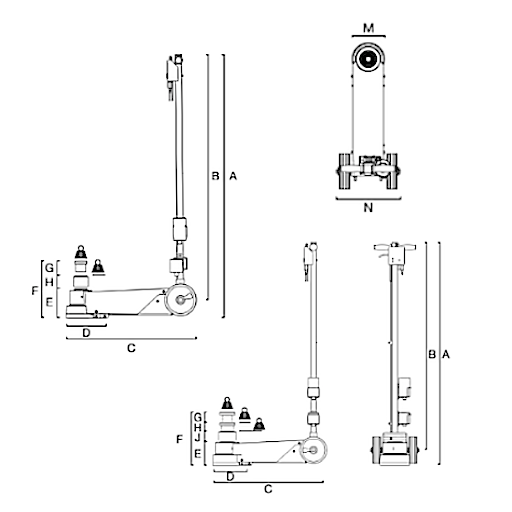

| SPECIFICATIONS | Capacity | Net Weight | Working Air Pressure | Air Waste | DIMENSIONS | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | J | M | N | |||||
| YAK 215/L | 40/20 t, 44/22 ton | 39 kg, 89 lb | 8-10 bar, 116-145 psi | 400 nl/min | 1405 mm, 55.31 in | 1310 mm, 51.57 in | 700 mm, 27.56 in | 215 mm, 8.46 in | 155 mm, 6.10 in | 302 mm, 11.88 in | 77 mm, 3.03 in | 70 mm, 2.76 in | – | 160 mm, 6.30 in | 300 mm, 11.81 in |
| YAK 315/L | 60/30/18 t, 66/33/20 ton | 46 kg, 101 lb | 8-10 bar, 116-145 psi | 400 nl/min | 1405 mm, 55.31 in | 1310 mm, 51.57 in | 720 mm, 28.35 in | 250 mm, 9.84 in | 147 mm, 5.79 in | 335 mm, 13.18 in | 66 mm, 2.6 in | 66 mm, 2.6 in | 66 mm, 2.60 in | 190 mm, 7.48 in | 300 mm, 11.81 in |
