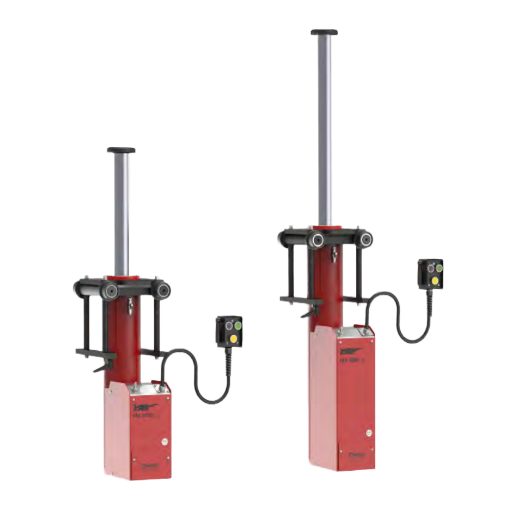

YAK 1615H | 1620H | 1815H | 1820H – Suspended Air Hydraulic Pit Jack
YAK’s new range of suspended pit jacks is designed for heavy vehicles. It is an ideal solution for service and maintenance of gearboxes and differentials, thanks to the innovations that make them unique on the market.

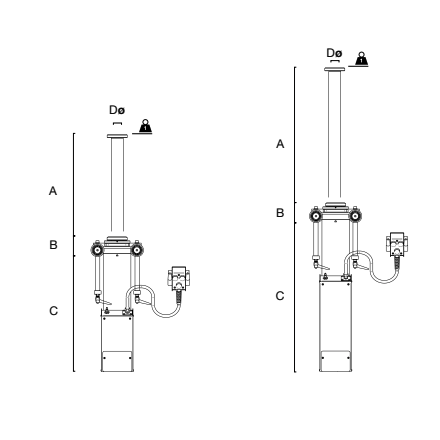

| SPECIFICATIONS | Capacity | Net Weight | Working Air Pressure | Air Waste | DIMENSIONS | |||
|---|---|---|---|---|---|---|---|---|
| A | B | C | Dø | |||||
| YAK 1615H | 15 t, 17 ton | 125 kg, 275 lb | 8-10 bar, 116-145 psi | 600 nl/min | 600 mm, 23.6 in | 110 mm, 4.3 in | 680 mm, 26.7 in | 55 mm, 2.1 in |
| YAK 1620H | 20 t, 19 ton | 125 kg, 275 lb | 8-10 bar, 116-145 psi | 600 nl/min | 600 mm, 23.6 in | 110 mm, 4.3 in | 680 mm, 26.7 in | 55 mm, 2.1 in |
| YAK 1815H | 15 t, 17 ton | 141 kg, 310 lb | 8-10 bar, 116-145 psi | 600 nl/min | 800 mm, 31.4 in | 110 mm, 4.3 in | 880 mm, 34.6 in | 55 mm, 2.1 in |
| YAK 1820H | 20 t, 19 ton | 141 kg, 310 lb | 8-10 bar, 116-145 psi | 600 nl/min | 800 mm, 31.4 in | 110 mm, 4.3 in | 880 mm, 34.6 in | 55 mm, 2.1 in |

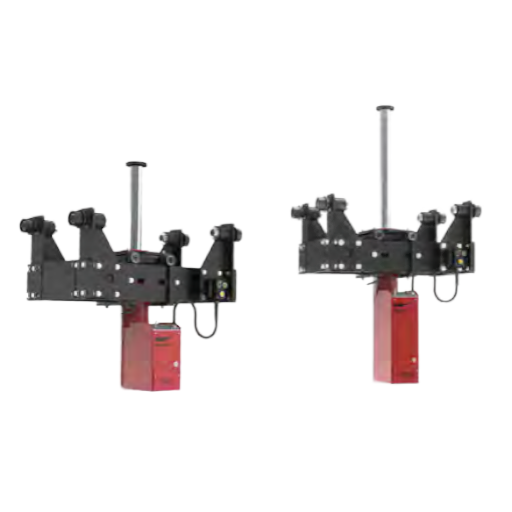

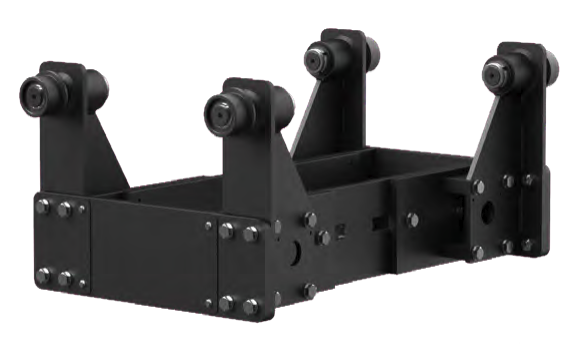

Adjustable Beam
Thanks to its adjustable and configurable beam, the jack can be adapted to any type of pit, thus reducing the waste of material and time needed to set and customise heavy custom-made beams improving convenience.

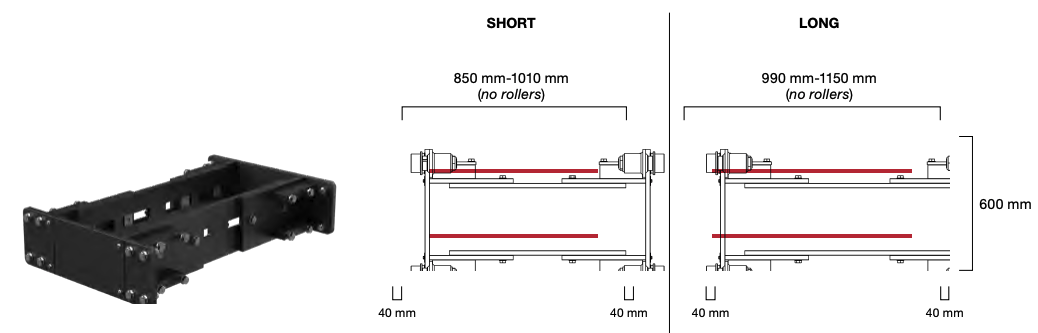

Length – Short / Long

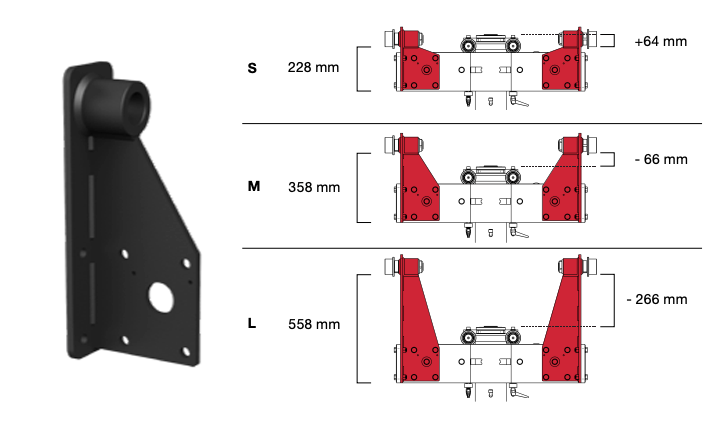

Height – S / M / L

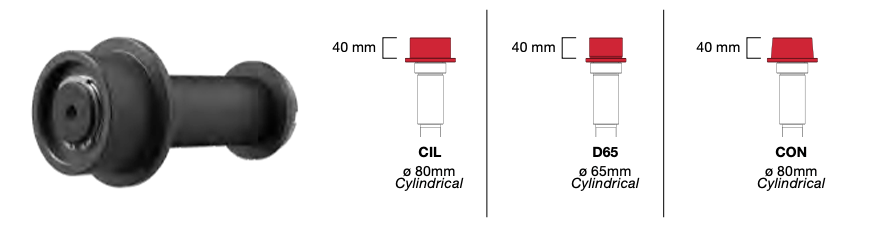

Rollers – CIL / D65 / CON
Remote Control
The new H-line jacks are all equipped with remote control to make lifting and descending operations as easy as possible, guaranteeing the operator’s maximum safety when using the equipment. The remote control is fitted with magnets at the rear allowing the operator to fix it to any metal surface at his convenience.
