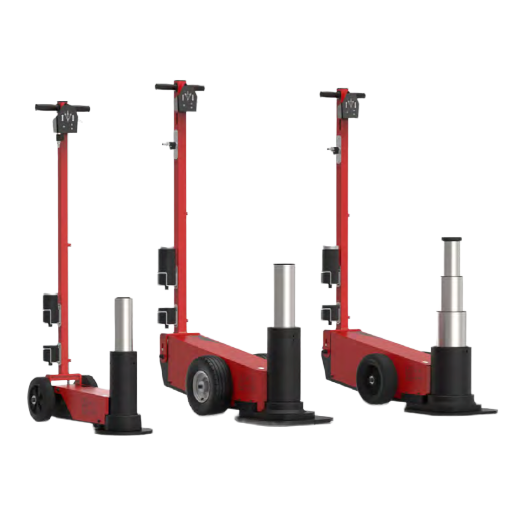

YAK 135 | 142 | 330/S – Air Hydraulic Jacks
Air hydraulic jacks for heavy vehicles, practical and effective. The pistons move back automatically; the two descent valves guarantee perfect holding in all situations and controlled speed under load. YAK 135 and 142 are Ideal for agricultural and public works vehicles. Fitted with roll-over protection plate and, on request, pneumatic wheels for working on particular difficult terrain. YAK 330 Specific for lifting the vehicle from the chassis and for all operations where maximum stroke and capacity are required. Accessories on request: pneumatic wheels. The new YAK 330/S is equipped with the new hight performance motor pump.

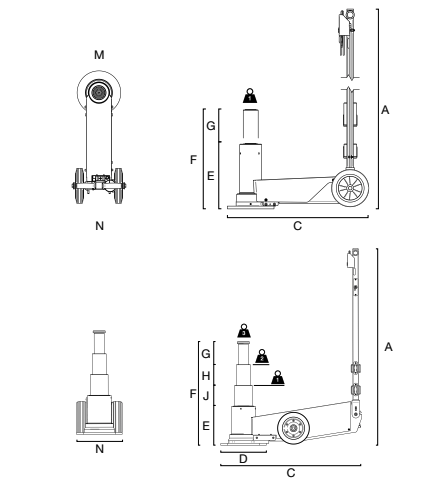

| SPECIFICATIONS | Capacity | Net Weight | Working Air Pressure | Air Waste | DIMENSIONS | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | C | D | E | F | G | H | J | M | N | |||||
| YAK 135 | 30 t, 33 ton | 57 kg, 126 lb | 8-10 bar, 116-145 psi | 400 nl/min | 1420 mm, 55.91 in | 760 mm, 29.92 in | – | 351.5 mm, 13.84 in | 573 mm, 22.55 in | 221.5 mm, 8.72 in | – | – | 360 mm, 14.17 in | 310 mm, 12.20 in |
| YAK 142 | 50 t, 55 ton | 128 kg, 282 lb | 8-10 bar, 116-145 psi | 600 nl/min | 1553 mm, 61.14 in | 1115 mm, 43.89 in | – | 420 mm, 16.53 in | 697 mm, 27.44 in | 277 mm, 10.9 in | – | – | 360 mm, 14.17 in | 390 mm, 15.35 in |
| YAK 330/S | 80/50/25 t, 88/55/28 ton | 146 kg, 322 lb | 8-10 bar, 116-145 psi | 600 nl/min | 1555 mm, 61.22 in | 1115 mm, 43.89 in | 360 mm, 14.17 in | 313 mm, 12.32 in | 818 mm, 32.2 in | 178 mm, 7.01 in | 165 mm, 6.50 in | 162 mm, 6.38 in | – | 370 mm, 14.57 in |
