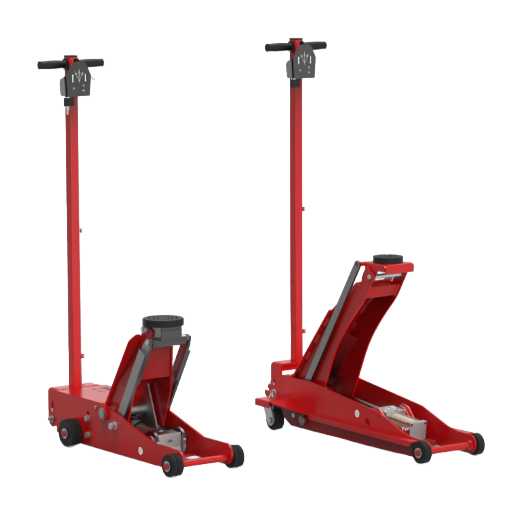

YAK 109/C | 108/S – Air Hydraulic Trolley Jack
YAK 109/C – Air hydraulic trolley jack, practical and easy to handle. The arm moves back automatically; the two descent valves guarantee perfect holding in all situations and controlled speed under load. Thanks to minimum height, maximum height and capacity these jacks are flexible and particularly suitable for cars, campers, vans, medium sized lorries, trailers and all vehicles weighing no more than 12t. (13.2 ton) Ideal for workshops, tyre repairers and bodywork shops.
YAK 108/S – Air hydraulic trolley jack, practical and easy to handle. Now equipped with pivoting wheels to facilitate use even in the smallest spaces. Thanks to minimum height, maximum height and capacity these jacks are flexible and particularly suitable for cars, campers, vans. Ideal for workshops, tyre repairers and bodywork shops.

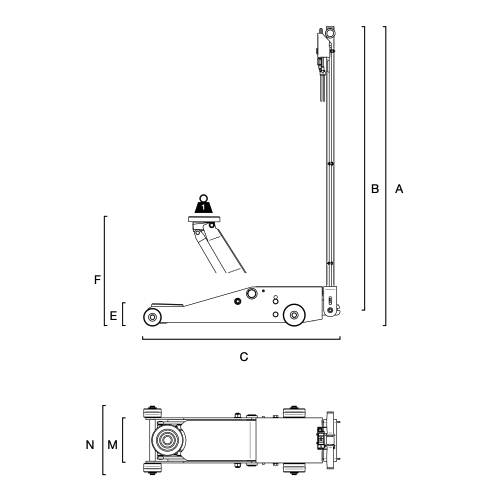

| SPECIFICATIONS | Capacity | Net Weight | Working Air Pressure | Air Waste | DIMENSIONS | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | E | F | M | N | |||||
| YAK 109/C | 5t, 5.5 ton | 75 kg, 165 lb | 8-10 bar, 116-145 psi | 400 nl/min | 1390 mm, 54.72 in | 1310 mm, 51.57 in | 910 mm, 35.82 in | 95 mm, 3.74 in | 500 mm, 16.69 in | 208 mm, 8.19 in | 208 mm, 8.19 in |
| YAK 108/S | 3t, 2.9 ton | 65 kg, 143 lb | 8-10 bar, 116-145 psi | 400 nl/min | 1436 mm, 56.53 in | – | 1090 mm, 42.91 in | 88 mm, 3.5 in | 676 mm, 16.6 in | 440 mm, 17.32 in | – |
