Winch 20m – 915508 | 915508SS

Winch 20m - 915508 | 915508SS
Winch 20m - 915508 | 915508SS - Image 2

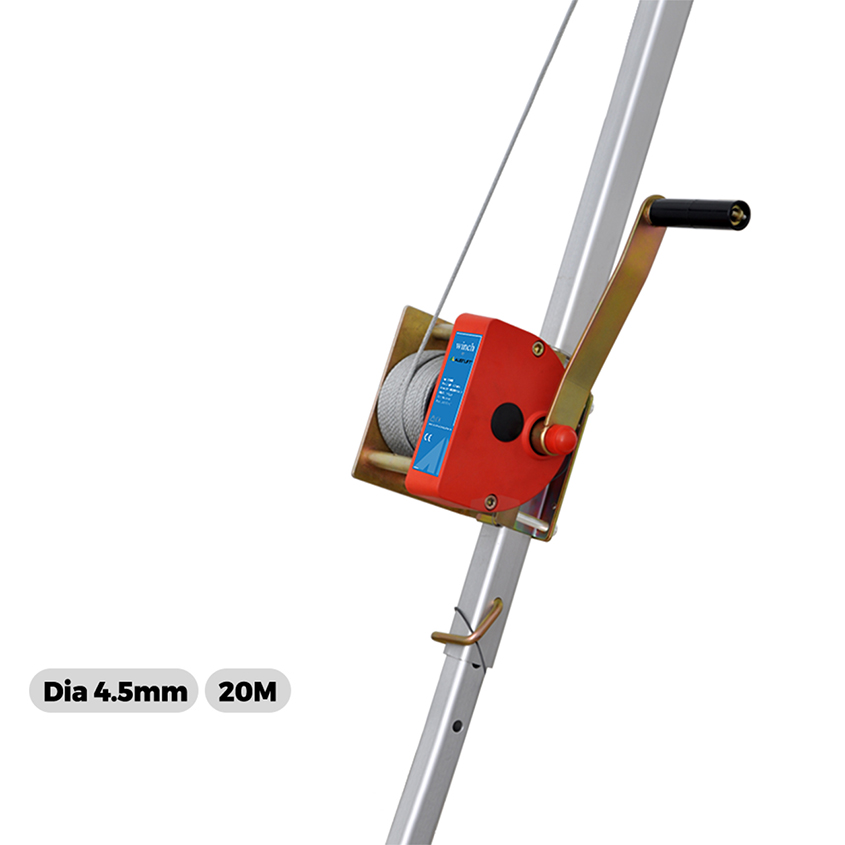

AUSTLIFT winch is designed to be used for raising or lowering of personnel or material into confined spaces. Comes with pre-installed mounting plate compatible with the mounting bracket fixed on the leg of the Tripod and compact Davit system. Consist of double action locking karabiner as a connector.

  • Winch cable: galvanised steel wire rope of diameter 4.8 mm, 20 m long.
  • Maximum lifting load capacity as per EN 1396 : 135 kg.
  • Maximum lifting load capacity as per machine directive 2006/42/EC : 250 kg.
  • The alloy steel double action locking karabiner: 17 mm gate opening, 23 kN minimum breaking strength.
  • Conforms to EN 1396:2017 (Class A).

Suitable for (Bracket not required)
915420 – Davit Compact
915507 – Tripod 7ft
915510 – Tripod 10ft
