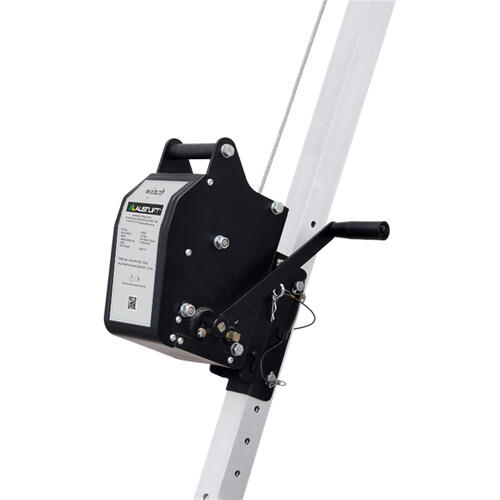

Winch 20m / 35m- 915506 | 915509

AUSTLIFT winch is designed to be used for raising or lowering of personnel or material into confined spaces. Comes with pre-installed mounting plate compatible with the mounting bracket fixed on the leg of the Tripod and compact Davit system. Consists of steel swivel snap hook as a connector.

• Winch cable: galvanised steel wire rope of diameter 6 mm.
• Maximum lifting load capacity as per EN 1496 : 135 kg.
• Maximum lifting load capacity as per machine directive 2006/42/EC : 250 kg.
• The alloy steel swivel snap hook: 20 mm gate opening, 23 kN minimum breaking strength
• Conforms to EN 1496:2017 (Class A).

Suitable for (Bracket not required)

915400 – Davit
915420 – Davit Compact
915507 – Tripod 7ft
915510 – Tripod 10ft
