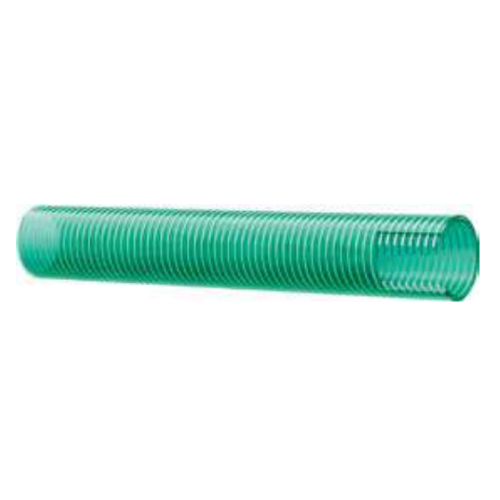

Water Suction & Delivery Light Duty – Alfagomma 264GL
Construction: green transparent PVC – abrasion and ozone resistant.
Reinforcement: white shock resistant rigid PVC.
Application: water suction and delivery.
Constant Operation: -5 °C +60 °C (+23 °F +140 °F)
| Internal Diameter | Working Pressure | Burst Pressure | Bend Radius | Vacuum | Weight | |||||
| ID mm | ID inch | bar | psi | bar | psi | mm | in | % | kg/m | lb/ft |
| 20 | 13/16″ | 7 | 100 | 21 | 300 | 110 | 4.33 | 60 | 0.20 | 0.14 |
| 25 | 1″ | 7 | 100 | 21 | 300 | 138 | 5.43 | 60 | 0.25 | 0.17 |
| 32 | 1 1/4″ | 6 | 90 | 18 | 270 | 176 | 6.93 | 60 | 0.34 | 0.23 |
| 38 | 1 1/2″ | 5 | 75 | 15 | 225 | 209 | 8.23 | 60 | 0.44 | 0.30 |
| 51 | 2″ | 5 | 75 | 15 | 225 | 281 | 11.06 | 60 | 0.65 | 0.44 |
