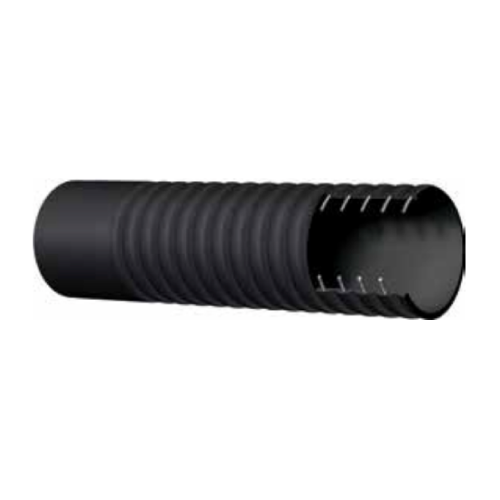

Water-slurry Suction & Delivery – Corrugated with Soft Ends – Alfagomma 221AA
Tube: Black SBR.
Reinforcement: high tensile textile cords with embedded steel helix wire
Cover: Black SBR – abrasion and ozone resistant.
Application: Water suction and delivery.
Special light weight and flexible construction for slurry tankers.
Constant Operation: -30°C +80°C (-22°F +176°F)
| Internal Diameter | Working Pressure | Burst Pressure | Bend Radius | Vacuum | Weight | |||||
| ID mm | ID inch | bar | psi | bar | psi | mm | in | % | kg/m | lb/ft |
| 76 | 3″ | 5 | 75 | 15 | 225 | 152 | 5.98 | 90 | 2.23 | 1.50 |
| 102 | 4″ | 5 | 75 | 15 | 225 | 204 | 8.03 | 90 | 2.94 | 1.98 |
| 120 | 4 3/4″ | 5 | 75 | 15 | 225 | 240 | 9.45 | 90 | 3.71 | 2.50 |
| 152 | 6″ | 3 | 45 | 9 | 135 | 304 | 11.97 | 80 | 4.65 | 3.13 |
| 203 | 8″ | 3 | 45 | 9 | 135 | 406 | 15.98 | 70 | 6.37 | 4.29 |
| 254 | 10″ | 3 | 45 | 9 | 135 | 508 | 20.00 | 12.6 | 8.49 | |
| 305 | 12″ | 3 | 45 | 9 | 135 | 610 | 24.02 | 14.3 | 9.63 | |
