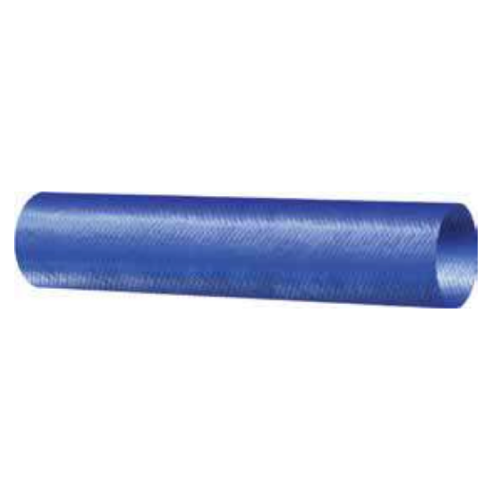

Sunny Water Delivery – Standard Duty PVC Layflat – Alfagomma 286EE
Tube: Blue PVC
Reinforcement: High tensile textile cords.
Cover: Blue PVC – abrasion and ozone resistant.
Application: Layflat water delivery for temporary supply and drainage, trickle, drip and sprinkler irrigation.
Specially designed for minimal expansions and elongation to eliminate snaking under pressure.
Safety Factor: 3:1
Constant Operation: -10°C +60°C (+14°F +140°F)
| Internal Diameter | Outer Diameter | Working Pressure | Weight | ||||
| ID mm | ID inch | OD mm | OD inch | bar | psi | kg/m | lb/ft |
| 26 | 1″ | 29 | 1.14 | 7 | 100 | 0.165 | 0.111 |
| 33 | 1 1/4″ | 36 | 1.42 | 7 | 100 | 0.200 | 0.134 |
| 41 | 1 1/2″ | 44 | 1.73 | 5 | 75 | 0.205 | 0.138 |
| 53 | 2″ | 56 | 2.20 | 5 | 65 | 0.270 | 0.181 |
| 66 | 2 1/2″ | 69 | 2.72 | 4 | 60 | 0.380 | 0.255 |
| 78 | 3″ | 81 | 3.19 | 4 | 60 | 0.530 | 0.356 |
| 104 | 4″ | 108 | 4.25 | 4 | 60 | 0.705 | 0.474 |
| 155 | 6″ | 159 | 6.26 | 3 | 45 | 1.175 | 0.790 |
| 207 | 8″ | 212 | 8.35 | 3 | 45 | 1.785 | 1.199 |
| 257 | 10″ | 262 | 10.32 | 3 | 36 | 2.650 | 1.781 |
| 308 | 12″ | 313 | 12.32 | 2 | 30 | 2.910 | 1.955 |
