Water Delivery 10 Bar (150psi) – Alfagomma 254AA

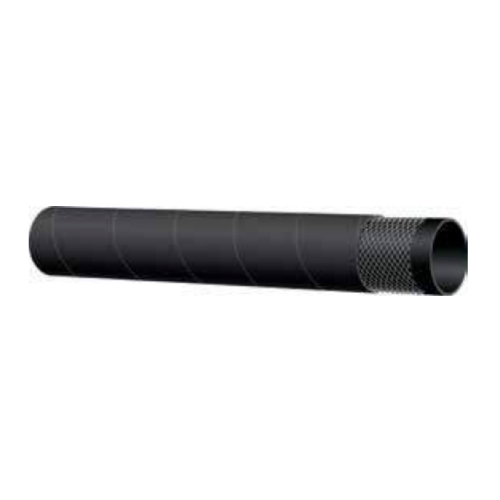

254AA Cross Section

Tube: Black SBR.
Reinforcement: High tensile textile cords.
Cover: Black SBR – abrasion and ozone resistant
Application: Water delivery in irrigation and general industrial applications.
Constant Operation: -30°C +80°C (-22°F +176°F)

Internal Diameter Outer Diameter Wall Thickness Working Pressure Burst Pressure Weight
ID mm ID inch OD mm OD Inch mm Bar psi Bar psi kg/m lb/ft
19 3/4″ 27 1.06 4 10 150 30 450 0.40 0.27
25 1″ 33 1.30 4 10 150 30 450 0.54 0.37
32 1 1/4″ 42 1.65 5 10 150 30 450 0.83 0.56
38 1 1/2″ 48 1.89 5 10 150 30 450 0.98 0.66
51 2″ 61 2.40 5 10 150 30 450 1.29 0.87
63 2 1/2″ 75 2.95 6 10 150 30 450 1.92 1.30
76 3″ 88 3.46 6 10 150 30 450 2.31 1.56
102 4″ 114 4.49 6 10 150 30 450 3.12 2.10
152 6″ 166 6.54 7 10 150 30 450 4.69 3.16
203 8″ 219 8.62 8 10 150 20 300 6.95 4.68
