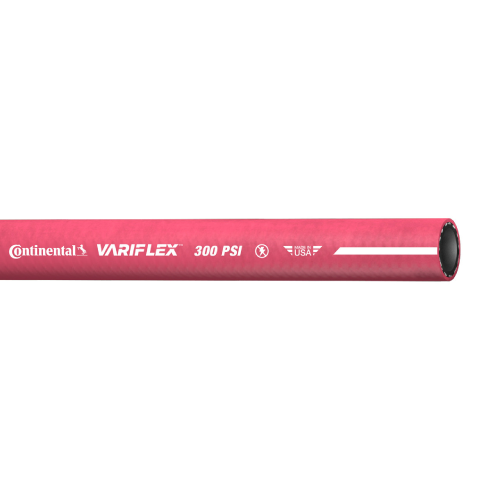

Variflex™ 300 Red Multipurpose – Continental
Tube: Nitrile synthetic rubber, ARPM Class A (High Oil Resistance)
Cover: Red, Blue, or Black Chemivic™ Synthetic Rubber, ARPM Class A (High Oil Resistance) Spiral Synthetic Yarn (3/16″ = 1 1/2″) Braided Synthetic Yarn (2″)
Reinforcement:Spiral Synthetic Yarn (3/16″ = 1 1/2″) Braided Synthetic Yarn (2″)
Application: A good-quality, economical general purpose hose for industrial air service, compressor lines, pneumatic tools, low-pressure spray and many other applications where the need for oil resistance is high. Non-conductive, minimum electrical resistance greater than one (1) megohm per inch of length of hose at 1000 V DC.
Working Pressure: 300 psi / 2.07 Mpa
Temperature: -29°C to +99°C (-20°F to 210°F)
| Inner Diameter | Outer Diameter | Weight | |||
| Inch | mm | Inch | mm | lbs./ft. | kg/m |
| 1/4 | 6.4 | 0.54 | 13.7 | 0.14 | 0.21 |
| 5/16 | 7.9 | 0.64 | 16.3 | 0.18 | 0.27 |
| 3/8 | 9.53 | 0.69 | 17.5 | 0.19 | 0.28 |
| 1/2 | 12.7 | 0.86 | 21.8 | 0.26 | 0.39 |
| 5/8 | 15.9 | 1.02 | 25.9 | 0.33 | 0.49 |
| 3/4 | 19.1 | 1.19 | 30.2 | 0.42 | 0.63 |
| 1 | 25.4 | 1.50 | 38.1 | 0.62 | 0.92 |
| 1 1/4 | 31.8 | 1.77 | 45.6 | 0.84 | 1.25 |
| 1 1/2 | 38.1 | 2.08 | 53.2 | 1.01 | 1.50 |
