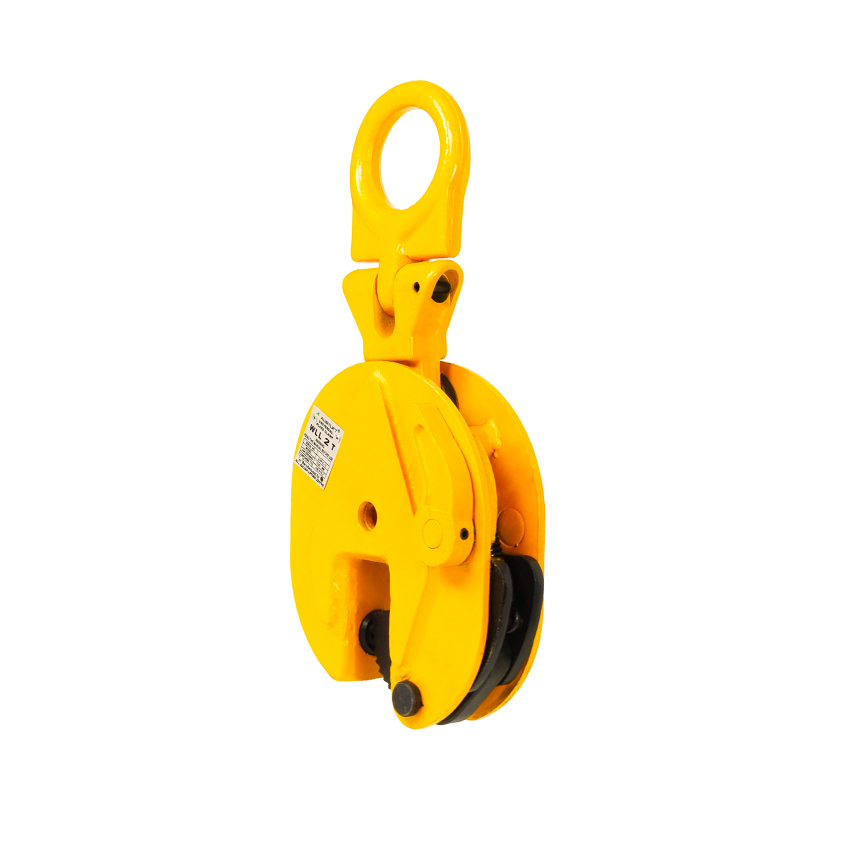

Universal Plate Clamp / Vertical Plate Grab
Austlift universal plate clamps are equipped with a universal hinged lifting eye, making it possible to lift loads form any given direction.
- Can be use on material hardness up to 37RC
- Individually serial numbered with test certificates and user manual
- Spare parts are available

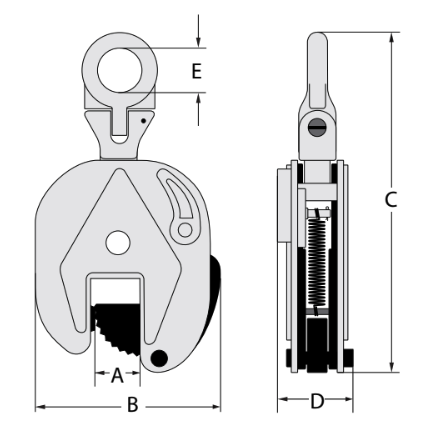

| CODE | WLL (T) | Wt. (kg) | DIMENSIONS (mm) | ||||
|---|---|---|---|---|---|---|---|
| A | B | C | D | E | |||
| 142075 | 0.75 | 2 | 0-15 | 105 | 218 | 51 | ø30 |
| 142150 | 1.5 | 7.4 | 0-20 | 170 | 370 | 70 | ø60 |
| 142200 | 2 | 7.8 | 0-25 | 175 | 375 | 72 | ø60 |
| 142300 | 3 | 16 | 0-30 | 195 | 418 | 98 | ø60 |
| 142500 | 5 | 23 | 0-50 | 230 | 480 | 110 | ø80 |
