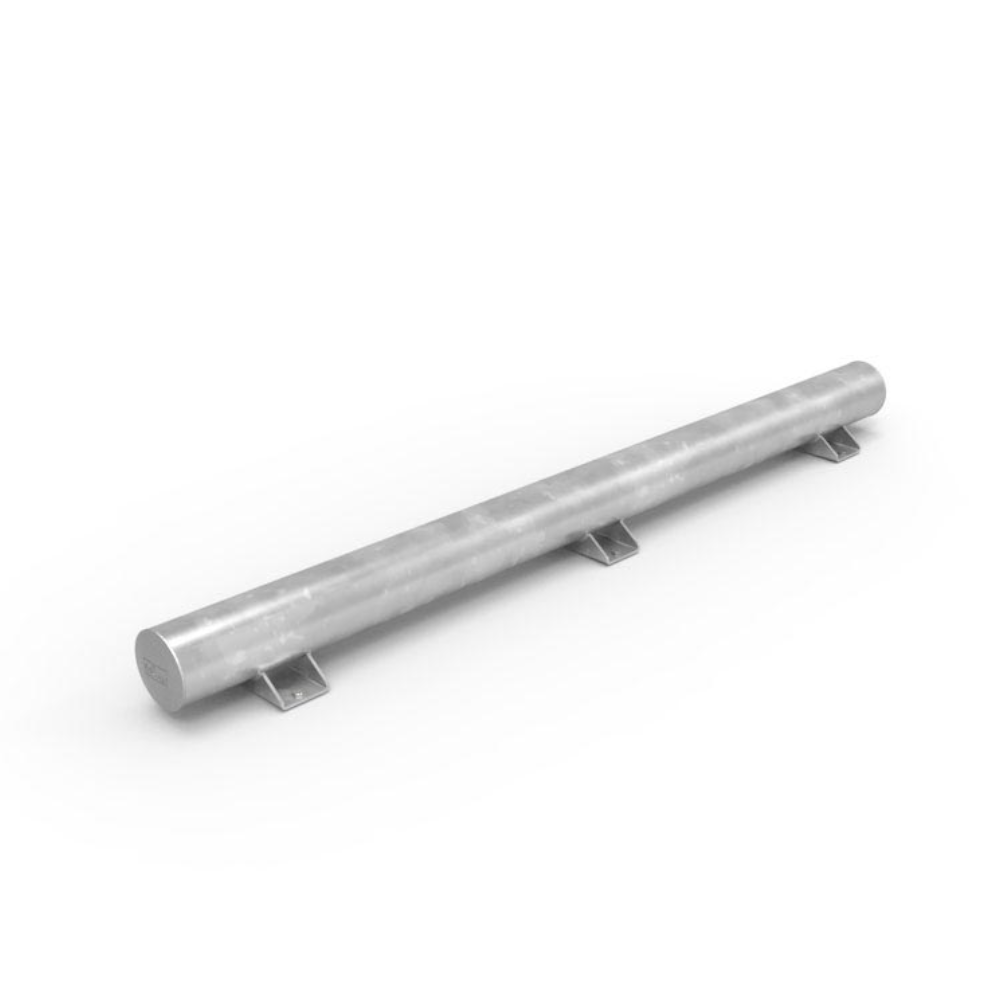

Truck Wheel Stop
- Heavy steel construction with 6 point fixing.
- Available in 2 diameters and lengths.
- Hot dip galvanised for harsh environments.
- Suitable for truck or machinery parking areas.
- Full installation service available.
Truck wheel stops are crucial safety components specifically crafted to handle the immense weight of large vehicles and machinery as they navigate into parking spaces. These sturdy installations are vital in averting damage to both the vehicles and the surrounding environment by offering a physical barrier that aids drivers in achieving correct parking alignment.
Constructed from heavy wall steel tubing, these wheel stops are designed for exceptional durability and strength. The use of heavy wall steel guarantees their ability to endure the significant pressure and impact from large trucks and equipment, which can often weigh several tons. This construction material is not only robust but also resistant to deformation, ensuring that the wheel stops retain their shape and effectiveness over time, even when subjected to the stress of frequent use.
Truck stops can be strategically utilized in highway rest areas, service centers, distribution hubs, roadside lay-bys, private depots, and remote industrial sites to offer truck drivers secure and legal places to rest in their vehicles.
Truck wheel stops are hot-dip galvanisationed to enhance their longevity and performance, protecting them from rust and deterioration caused by environmental elements such as rain, snow, and road salt. This allows the wheel stops to endure harsh weather conditions and stay operational for extended periods, reducing the necessity for regular replacements.

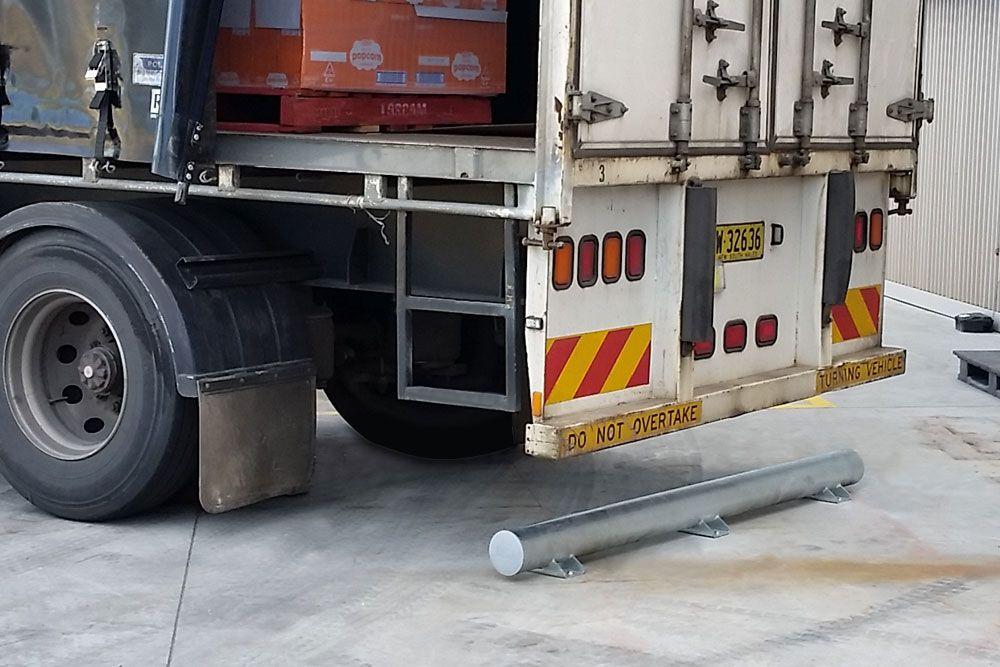

The installation of truck wheel stops is generally performed on concrete surfaces, providing a stable and secure base. The concrete foundation ensures that the wheel stops stay firmly anchored, even under the substantial weight of trucks and machinery.
| Model | TS140-G | TS140-P | TS90-G | TS90-P |
| Description | Heavy Truck Stop – 140 mm Diameter – Galvanised | Heavy Truck Stop – 140mm Diameter – Galvanised and Powder Coated Safety Yellow | Heavy Truck Stop – 90mm Diameter – Galvanised | Heavy Truck Stop – 90mm Diameter – Galvanised and Powder Coated |
| Material | Mild steel tube with 5mm wall. | Mild steel tube with 5mm wall. | Mild steel tube with 5mm wall. | Mild steel tube with 5mm wall. |
| Finish | Hot dip galvanised. | Hot dip galvanised. | Hot dip galvanised. | Hot dip galvanised. |
| Diameter | 140 mm | 140 mm | 90 mm | 90 mm |
| Height | 165 mm | 165 mm | 100 mm | 100 mm |
| Length | 2400 mm | 2400 mm | 1800 mm | 1800 mm |
| Weight | 50 kg | 50 kg | 21.7 kg | 21.7 kg |
| Fixings | 6 x M10 bolts (supplied). | 6 x M10 bolts (supplied). | 6 x M10 bolts (supplied). | 6 x M10 bolts (supplied). |
