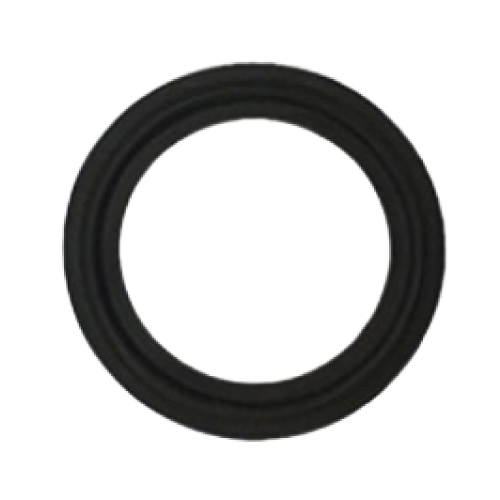

Triclover Type 1 Seal (No Flange) – Teflon / Viton / EPDM (Black or White) / Nitrile / Silicone
Temperature Range:
Viton -20°C to 205°C
EPDM Rubber -50°C to 120°C
Nitrile -40°C to 100°C
Teflon -73°C to 204°C
Silicone -67°C to 300°C
| Size | A | B | C | T |
| 1″ / 25 mm | 50.5 | 43.5 | 22.8 | 1.7 |
| 1 1/4″ / 32 mm | 50.5 | 43.5 | 28.5 | 1.7 |
| 1 1/2″ / 38 mm | 50.5 | 43.5 | 35.5 | 1.7 |
| 2″ / 50 mm | 64 | 56.5 | 48.2 | 1.7 |
| 2 1/2″ / 63 mm | 77.5 | 70.5 | 60.5 | 1.7 |
| 3″ / 76 mm | 91 | 85.5 | 73.2 | 1.7 |
| 4″ / 101 mm | 119 | 110 | 97.8 | 1.7 |
| 4 1/2″ / 110 mm | 130 | 122 | 110.8 | 1.7 |
| 5″ / 125 mm | 146.7 | 135.2 | 146 | 1.7 |
| 6″ / 150 mm | 166.8 | 156.4 | 147.6 | 1.7 |
| 8″ / 200 mm | 217.7 | 207 | 198.4 | 1.7 |
| 10″ / 250 mm | 268 | 258 | 248.5 | 1.7 |
| 12″ / 300 mm | 319 | 299.5 | 309 | 1.7 |
