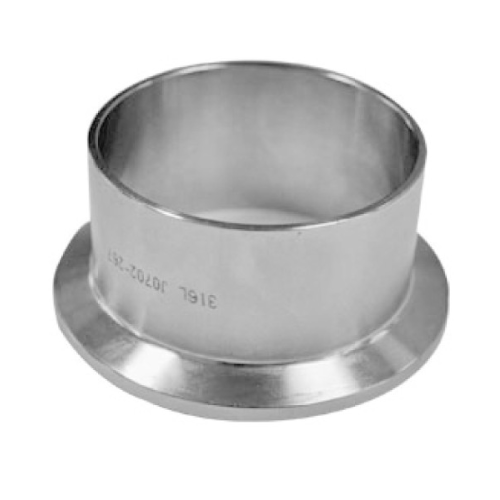

Triclover Ferrule SS 316
| Size | A | B | C | H |
| 1/2″ / 12 mm | 25.2 | 12.7 | 9.4 | 28.6 |
| 3/4″ / 18 mm | 25.2 | 19.05 | 15.7 | 28.6 |
| 1″ / 25 mm | 50.5 | 25.4 | 22.2 | 28.6 |
| 1 1/4″ / 32 mm | 50.5 | 31.8 | 28.5 | 28.6 |
| 1 1/2″ / 38 mm | 50.5 | 39.1 | 34.8 | 28.6 |
| 2″ / 50 mm | 64 | 50.8 | 47.5 | 28.6 |
| 2 1/2″ / 63 mm | 77.5 | 63.5 | 60.2 | 28.6 |
| 3″ / 76 mm | 91 | 76.2 | 72.9 | 28.6 |
| 4″ / 101 mm | 119 | 101.6 | 97.4 | 28.6 |
| 5″ / 125 mm | 145 | 126.8 | 123 | 28.6 |
| 6″ / 150 mm | 166.8 | 152.4 | 146.8 | 38.1 |
| 8″ / 200 mm | 217.7 | 203.2 | 197.6 | 38.1 |
| 10″ / 250 mm | 268 | 254 | 247.2 | 38.1 |
| 12″ / 300 mm | 319 | 304.8 | 298 | 38.1 |
