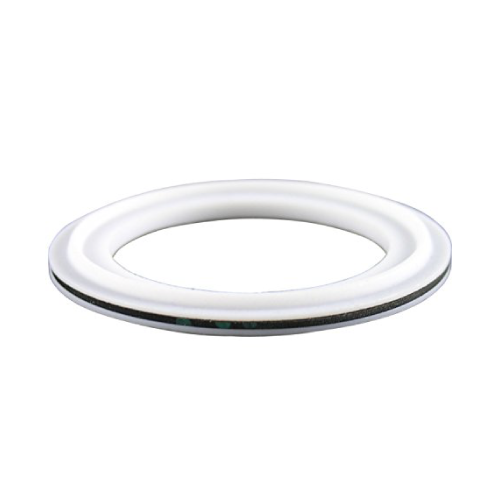

Triclover Envelope Seals – Teflon Viton / Teflon EPDM
Temperature Range:
Viton -20°C to 205°C
EPDM Rubber -50°C to 120°C
Teflon -73°C to 204°C

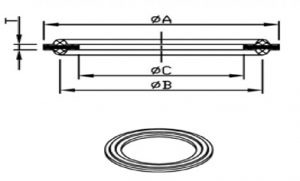

| Size | A | B | C | T |
| 1″ / 25 mm | 50.5 | 43.5 | 22.8 | 2.3 |
| 1 1/4″ / 32 mm | 50.5 | 43.5 | 28.5 | 2.3 |
| 1 1/2″ / 38 mm | 50.5 | 43.5 | 35.5 | 2.3 |
| 2″ / 50 mm | 64 | 56.5 | 48.2 | 2.3 |
| 2 1/2″ / 63 mm | 77.5 | 70.5 | 60.5 | 2.3 |
| 3″ / 76 mm | 91 | 83.5 | 73.2 | 2.3 |
| 4″ / 101 mm | 119 | 110 | 97.8 | 2.3 |
