Tigertail HD – Barfell

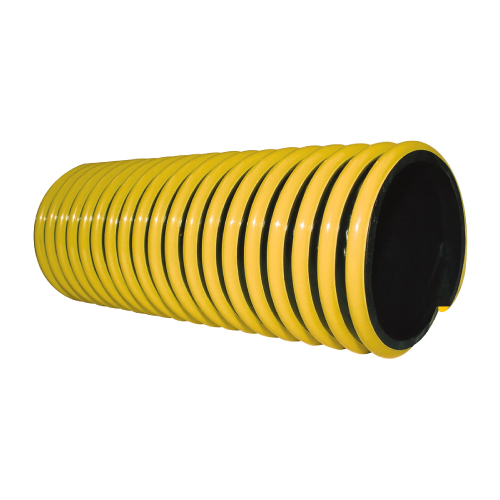

An extremely flexible suction/discharge hose with a hard wearing exposed rigid PVC spiral. Excellent chemical resistance, making the hose suitable for diesel fuels petrol, oils, sewage, and chemicals.
Colour: Black with Exposed Yellow Spiral
Temperature Range: -5°C to +60*C (+23°F to +140°F)
Chemical Resistance: Excellent
Flexibility: Excellent
Weathering Properties: Good
Abrasion Resistance: Excellent
Application: Collections of waste on environmental waste trucks, pumping the contents of grease pits, sewage collection, pumping of fuels, lubricants and most chemicals.
| Diameter (mm) | Vacuum Rating | Working Press. (at 20°C) | Min Bend Radius | Weight | ||
| ID | OD | KPa/20°C | Mpa | P.S.I | mm | kg/m |
| 44.5 | 55.5 | -80.0 | 0.3 | 45 | 180 | 0.64 |
| 50.8 | 61 | -80.0 | 0.3 | 45 | 220 | 0.88 |
| 63.7 | 77 | -80.0 | 0.3 | 45 | 270 | 1.27 |
| 76 | 91 | -80.0 | 0.3 | 45 | 350 | 1.62 |
| 102 | 118 | -80.0 | 0.3 | 45 | 450 | 2.43 |
| 127.8 | 149 | -80.0 | 0.3 | 45 | 475 | 3.99 |
| 150 | 172 | -80.0 | 0.3 | 45 | 500 | 5.10 |
| 200 | 224 | -80.0 | 0.3 | 45 | 650 | 7.55 |
