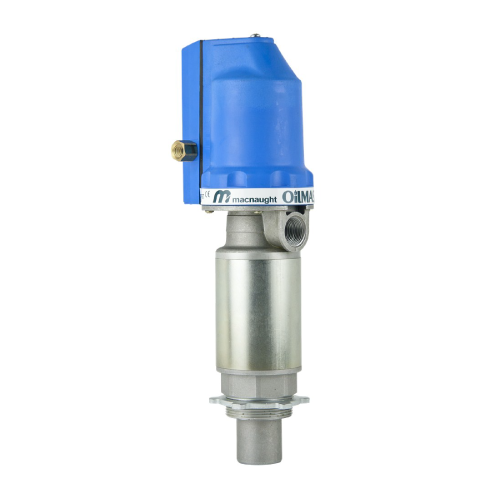

T-Series Oil Stub Pumps – Macnaught

T-Series Oil Stub Pumps - Macnaught
T-Series Oil Stub Pumps - Macnaught - Image 2

OILMASTER pump proven reliable air motor design for performance and reliability. Supplied as bare pump with 2″ bung adaptor only.

Technical Specifications

Model T112S-01 T312S-01 T512S-01
Pump Ratio 1:1 3:1 5:1
Flow Rate 23 L/min 13 L/min 11 L/min
Inlet 1″ BSPF 1″ BSPF 1″ BSPF
Outlet 3/4″ BSPF 3/4″ BSPF 1/2″ BSPF
Fluids Suitable for oils & coolants up to SAE90 viscosity Suitable for oils & coolants up to SAE140 viscosity Suitable for oils & coolants up to SAE140 viscosity
