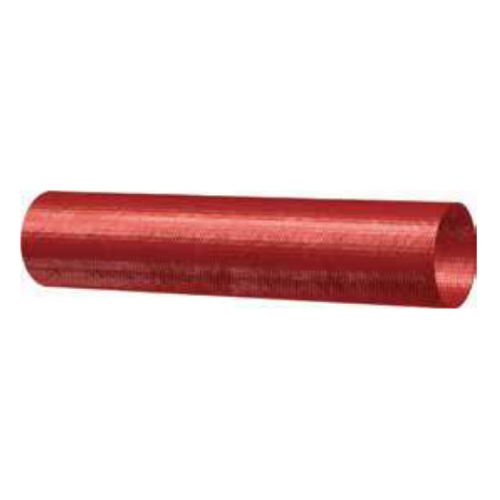

Sunny Water Delivery – Heavy Duty PVC Layflat – Alfagomma 288HH
Tube: Red PVC
Reinforcement: High tensile textile cords.
Cover: Red PVC – abrasion and ozone resistant.
Application: Layflat water delivery for industrial dewatering, low tensile loading travelling irrigators and sprinkler irrigation. Specially designed for minimal expansion and elongation to eliminate snaking under pressure.
Working Pressure: 10 bar / 150 psi
Safety Factor: 3:1
Constant Operation: -10°C +60°C (+14°F +140°F)
| Internal Diameter | Outer Diameter | Working Pressure | Weight | ||||
| ID mm | ID inch | OD mm | OD inch | bar | psi | kg/m | lb/ft |
| 40 | 1 1/2″ | 44 | 1.73 | 10 | 150 | 0.29 | 0.19 |
| 53 | 2″ | 57 | 2.24 | 10 | 150 | 0.42 | 0.28 |
| 66 | 2. 1/2″ | 70 | 2.76 | 10 | 150 | 0.54 | 0.36 |
| 79 | 3″ | 83 | 3.27 | 9 | 130 | 0.66 | 0.44 |
| 104 | 4″ | 109 | 4.29 | 9 | 130 | 1.00 | 0.67 |
| 155 | 6″ | 161 | 6.34 | 7 | 100 | 1.68 | 1.13 |
| 207 | 8″ | 213 | 8.39 | 5 | 75 | 2.20 | 1.48 |
