Straight Union Reducing

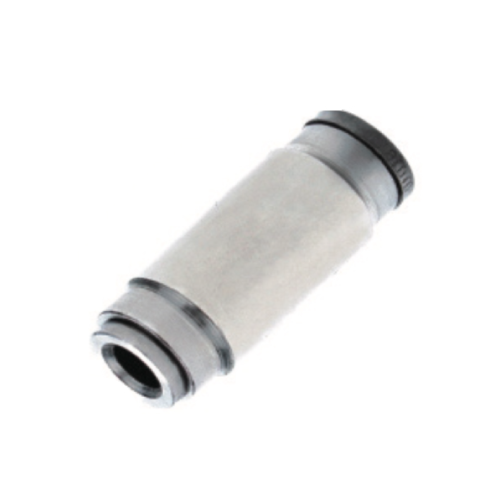

Nickel Plated Brass Tube-to-Tube Straight Union Reducing Push-In Fitting
Reducing straight union, metric tube.
- One-touch joints are use in pneumatic piping. Easy to connect/disconnect tube with one touch.
- Can be applied and removed easily in confined spaces
- Can be used under a wide range of pressures
Specifications
| Tubing A | 12mm, 10mm, 8mm, 6mm |
| Tubing B | 10mm, 8mm, 6mm, 4mm |
| Material | Nickel Plated Brass |
| Connection Style | Tube-to-Tube |
| Fitting Shape | Straight |
| Fluid | Compressed Air |
| Working Pressure Range | -0.8 ~ 15 Bar |
| Temperature Range | -10 ~ 60°C |
| Application Tube Material | Polyurethane, Nylon, Polyethylene, and Polypropylene |
