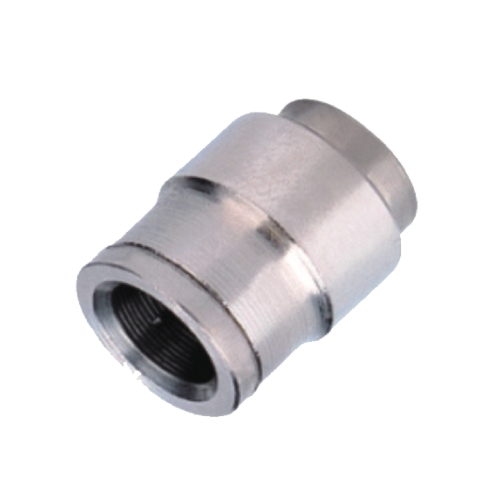

Straight Tube Cap
Nickel Plated Brass Straight Tube Cap Push-In Fitting
Cap, metric and imperial tube.
- One-touch joints are use in pneumatic piping. Easy to connect/disconnect tube with one touch.
- Can be applied and removed easily in confined spaces
- Can be used under a wide range of pressures
Specifications
| Tubing A | 1/2″, 3/8″, 1/4″, 16mm, 12mm, 10mm, 8mm, 6mm, 4mm |
| Material | Nickel Plated Brass |
| Fitting Shape | Straight |
| Fluid | Compressed Air |
| Working Pressure Range | -0.8 ~ 15 Bar |
| Temperature Range | -10 ~ 60°C |
| Application Tube Material | Polyurethane, Nylon, Polyethylene, and Polypropylene |
