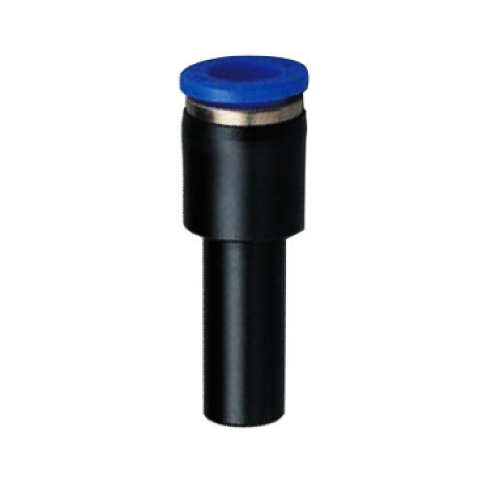

Straight Plug-In Reducer
Composite Tube-to-Tube Straight Plug-In Reducer
Plug-in reducer, metric and imperial tube.
- One-touch joints are use in pneumatic piping. Easy to connect/disconnect tube with one touch.
- Can be applied and removed easily in confined spaces
- Can be used under a wide range of pressures
Specifications
| Tubing A | 3/8″, 5/16″, 12mm, 10mm, 8mm, 6mm |
| Tubing B | 5/16″, 1/4″, 10mm, 8mm, 6mm, 4mm |
| Material | Composite |
| Connection Style | Tube-to-Tube |
| Fitting Shape | Straight |
| Fluid | Air (no other gases or liquids) |
| Working Pressure Range | 0 – 284 Psi | 0 ~ 20 Kgf/c㎡(0~1960kPa) |
| Negative Pressure | -29.5″ Hg | -750mmHg(10Torr) |
| Temperature Range | 0 ~ 80°C |
| Application Tube Material | Polyurethane and Nylon |
