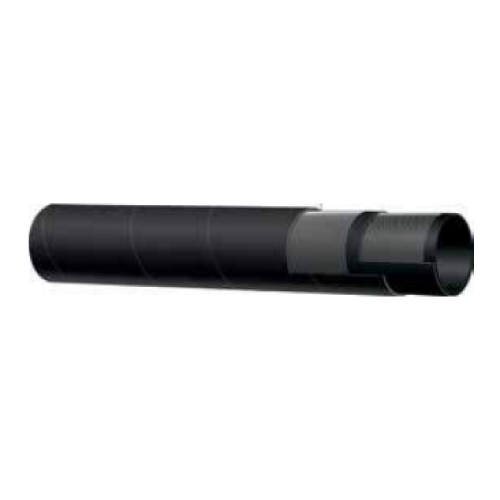

Steam 6 Bar (90psi) / Hot Water 15 Bar (225 psi) – Alfagomma 350AA
Tube: black conductive EPDM.
Reinforcement: high tensile textile cords.
Cover: black conductive EPDM – heat, abrasion and ozone resistant.
Application: saturated steam and hot water delivery in general industrial applications.
Working Pressure: 6 bar / 90 psi
Burst Pressure: 60 bar / 900 psi
Constant Operation: water -40°C +120°C (-40°F +248°F)
steam +165°C (+330°F)
| Internal Diameter | Outer Diameter | Wall Thickness | Weight | |||
| ID mm | ID inch | OD mm | OD Inch | mm | kg/m | lb/ft |
| 13 | 1/2″ | 23 | 0.91 | 5 | 0.37 | 0.25 |
| 16 | 5/8″ | 26 | 1.02 | 5 | 0.43 | 0.29 |
| 19 | 3/4″ | 29 | 1.14 | 5 | 0.47 | 0.32 |
| 25 | 1″ | 35 | 1.38 | 5 | 0.59 | 0.40 |
| 30 | 1 3/16″ | 44 | 1.73 | 7 | 0.91 | 0.62 |
| 32 | 1 1/4″ | 46 | 1.81 | 7 | 0.95 | 0.64 |
| 38 | 1 1/2″ | 52 | 2.05 | 7 | 1.11 | 0.75 |
| 40 | 1 9/16″ | 54 | 2.13 | 7 | 1.16 | 0.78 |
| 51 | 2″ | 67 | 2.64 | 8 | 1.71 | 1.15 |
