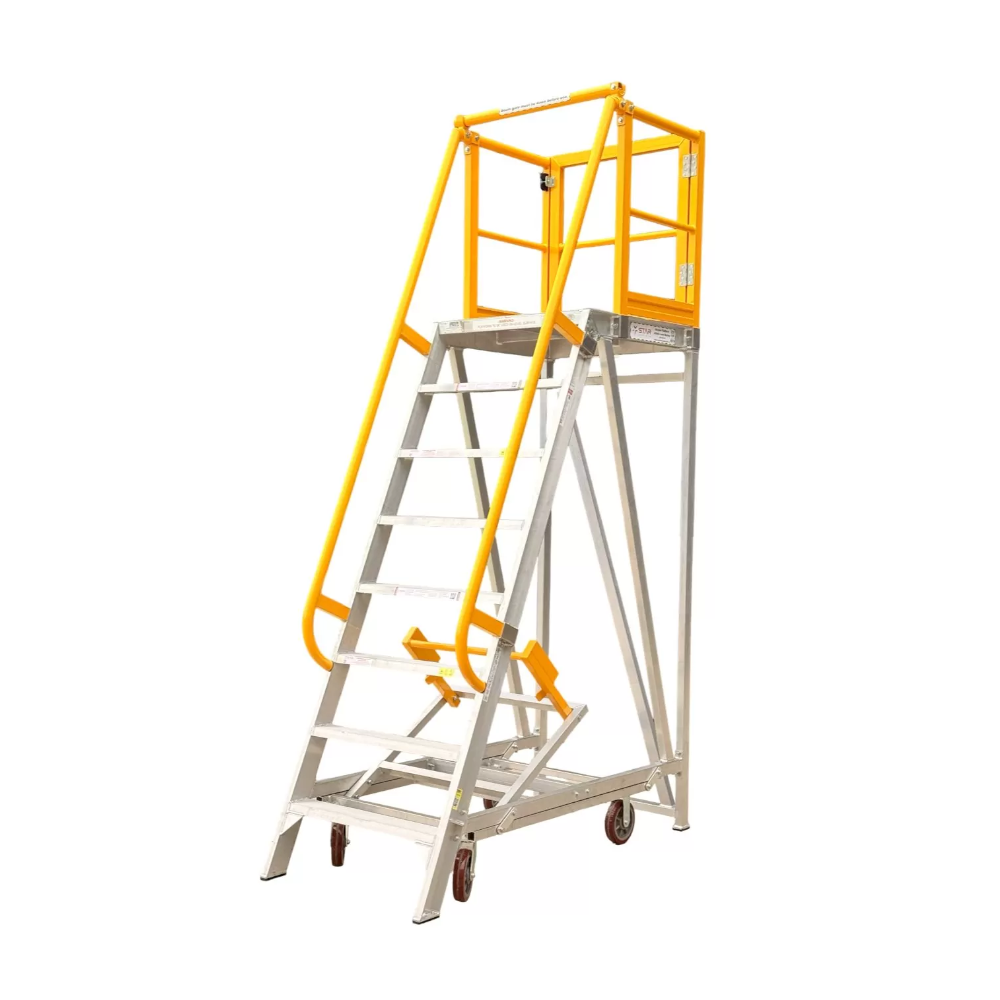

Star Aluminium Work Platform Ladders

Star Aluminium Work Platform Ladders
Star Aluminium Work Platform Ladders - Image 2
  • Heavy Duty platform load-rated at 450kg
  • Complies with Australian Standards
  • Lifetime Structural Warranty
  • Aluminium Description: 60mm x 40mm x 3mm RHS, 48mm x 4.47mm
    tube, 100mm x 40mm x 4mm channel, 100mm step section, 3mm checker plate. Alloy temper 6061T6.
  • Handrail height 900mm
  • 3mm Checker Plate
  • Safety boom arm at front
  • Safety gate at rear
Model STAR P2′ STAR P3′ STAR P4′ STAR P1400′ STAR P5′ STAR P6′ STAR P7′ STAR P8′ STAR P9′ STAR P10′ STAR P11′ STAR P12′
Platform Height 600 mm 900 mm 1200 mm 1400 mm 1500 mm 1800 mm 2100 mm 2400 mm 2700 mm 3000 mm 3300 mm 3600 mm
Platform Area 750 x 900 mm 750 x 900 mm 750 x 900 mm 750 x 900 mm 750 x 900 mm 750 x 900 mm 900 x 900 mm 900 x 900 mm 900 x 900 mm 1000 x 1000 mm 1000 x 1000 mm 1000 x 1000 mm
Total Base Length 1200 mm 1300 mm 1400 mm 1487 mm 1529 mm 1653 mm 1777 mm 1902 mm 2026 mm 2236 mm 2360 mm 2484 mm
Approx. Weight 40 kg 55 kg 60 kg 70 kg 72 kg 80 kg 90 kg 100 kg 125 kg 135 kg 145 kg 155 kg
