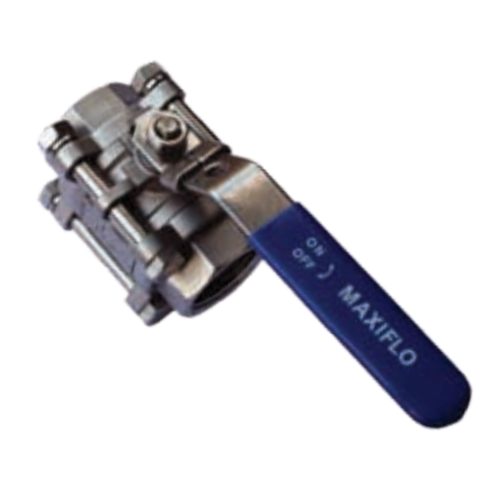

Stainless Steel Ball Valve (3-Piece) – Maxiflo
Thread: AS1722.2
Max Working Temperature: 180°C
Cold Working Pressure: 6895kPa
Applications – For air, water, Hot/Cold corrosive fluids in harsh environments

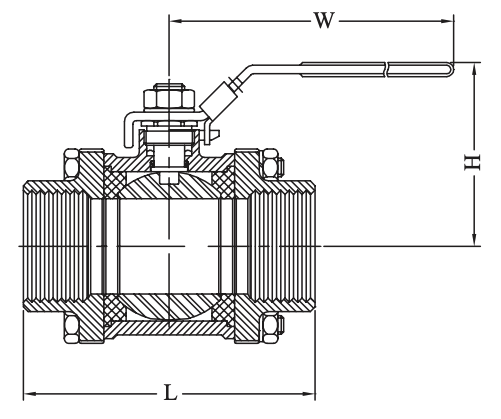

| Imperial Size | L (mm) | H (mm) | W (mm) | Torque inch/lbs | Approx. kg/pc |
| 1/4 | 50 | 48 | 100 | 40 | 0.29 |
| 3/8 | 50 | 48 | 100 | 40 | 0.29 |
| 1/2 | 63.4 | 52 | 100 | 43 | 0.39 |
| 3/4 | 71 | 61 | 127 | 65 | 0.61 |
| 1 | 80.6 | 65 | 127 | 101 | 0.86 |
| 1 1/4 | 94 | 79 | 154 | 158 | 1.37 |
| 1 1/2 | 104 | 83 | 154 | 187 | 2.04 |
| 2 | 126.4 | 97 | 192 | 230 | 3.74 |
| 2 1/2 | 160 | 135 | 244 | 430 | 6.44 |
| 3 | 179.5 | 144 | 244 | 1380 | 10.20 |
| 4 | 220 | 157 | 280 | 2400 | 20.49 |
| Part | Material |
| Body | CF8M |
| Ball | 316 Stainless Steel |
| Seat | Teflon (PTFE) |
| Stern | 316 Stainless Steel |
| Lever | 316 Stainless Steel with Locking Device |
