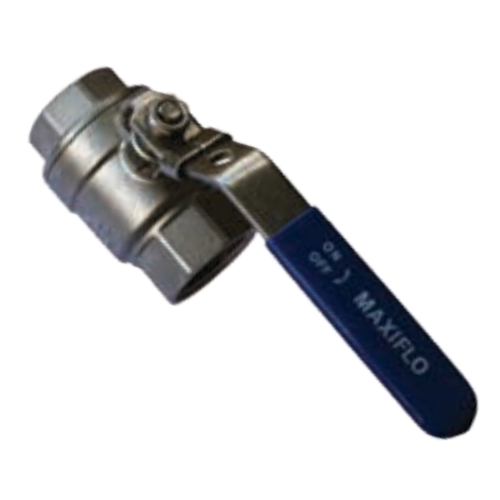

Stainless Steel Ball Valve (2-Piece) – Maxiflo
Thread: AS1722.2
Max Working Temperature: 180°C
Cold Working Pressure: 6895kPa
Applications – For air, water, Hot/Cold corrosive fluids in harsh environments

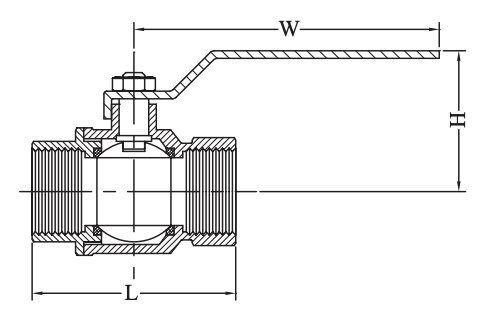

| Imperial Size | L (mm) | H (mm) | W (mm) | Torque inch/lbs | Approx. kg/pc |
| 1/4 | 48 | 48 | 100 | 36 | 0.18 |
| 3/8 | 48 | 48 | 100 | 36 | 0.19 |
| 1/2 | 58 | 52 | 100 | 43 | 0.26 |
| 3/4 | 65.7 | 61 | 127 | 65 | 0.4 |
| 1 | 77 | 65 | 127 | 101 | 0.59 |
| 1 1/4 | 90 | 79 | 154 | 158 | 1 |
| 1 1/2 | 98 | 83 | 154 | 187 | 1.32 |
| 2 | 121 | 97 | 192 | 230 | 2.46 |
| 2 1/2 | 145 | 135 | 244 | 430 | 4.83 |
| 3 | 166 | 144 | 244 | 1380 | 7.45 |
| Part | Material |
| Body | CF8M |
| Ball | 316 Stainless Steel |
| Seat | Teflon (PTFE) |
| Stern | 316 Stainless Steel |
| Lever | 316 Stainless Steel with Locking Device |
