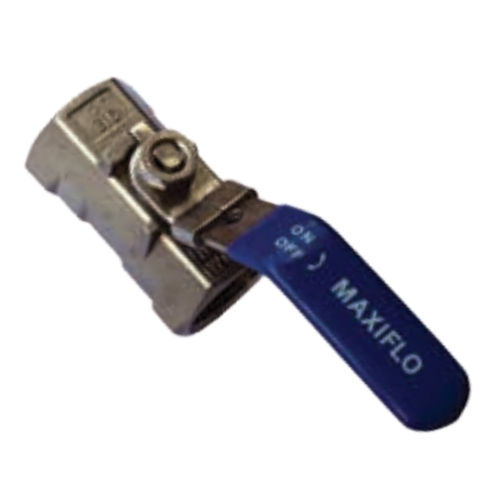

Stainless Steel Ball Valve (1-Piece) – Maxiflo
Thread: AS1722.2
Max Working Temperature: 180°C
Cold Working Pressure: 6895kPa
Applications – For air, water, Hot/Cold corrosive fluids in harsh environments
| Imperial Size | L (mm) | H (mm) | W (mm) | D (mm) | Torque inch/lbs | Approx. kg/pc |
| 1/4 | 40 | 33 | 67 | 5 | 12 | 0.06 |
| 3/8 | 45 | 36 | 67 | 7 | 12 | 0.1 |
| 1/2 | 58 | 37 | 93 | 9 | 12 | 0.16 |
| 3/4 | 60 | 42 | 93 | 12.5 | 18 | 0.26 |
| 1 | 71 | 52 | 103 | 16 | 36 | 0.38 |
| 1 1/4 | 78 | 56 | 103 | 20 | 54 | 0.61 |
| 1 1/2 | 82.5 | 65 | 125 | 25 | 72 | 0.85 |
| 2 | 100 | 70 | 125 | 32 | 84 | 1.4 |
| Part | Material |
| Body | CF8M |
| Ball | 316 Stainless Steel |
| Seat | Teflon (PTFE) |
| Stern | 316 Stainless Steel |
| Lever | 316 Stainless Steel with Locking Device |
