Square Bollards Heavy Duty Steel
- Fixed, square surface mount and below ground bollards are designed for traffic control situations and asset protection.
- Surface mount bollards have fully welded base plates and are suitable for installation onto any concrete surface.
- Below ground bollards have fully welded anchoring bars for installation into new concrete footings. Suitable for installation in asphalt or any soft surface where a concrete footing will be necessary.
- Manufactured from heavy wall mild steel.
- Galvanised and powder coated or galvanised only.
- Available in two sizes.
- Standard Class 1 reflective band (for powder coated models only).
- All our bollards are supplied complete with fixings.
- Optional chain ring kits are available for connecting chains or ropes to our bollards.
As Australasia’s premier provider of property, traffic control, and asset protection solutions, Heavy Duty Steel Square Bollards set the industry standard for strength and reliability. Engineered for maximum durability, each bollard is crafted from heavy-wall mild steel to form an impenetrable barrier against unauthorised vehicle access and ram-raid threats. Trusted by leading organisations across the industrial, educational institutes, and commercial sectors, our solutions are designed to safeguard your most valuable assets and critical infrastructure with unmatched precision and assurance.

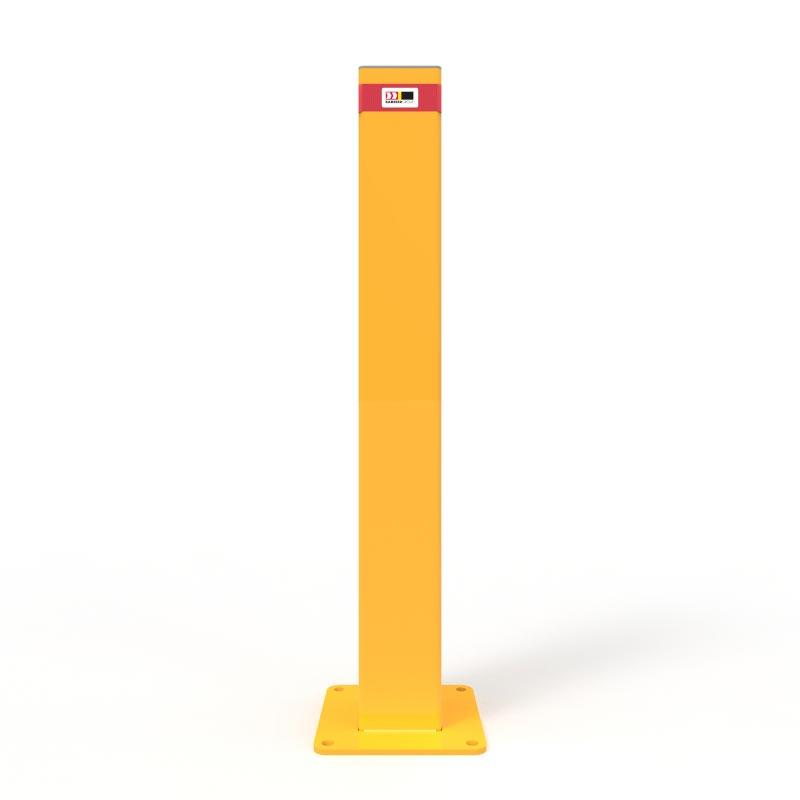

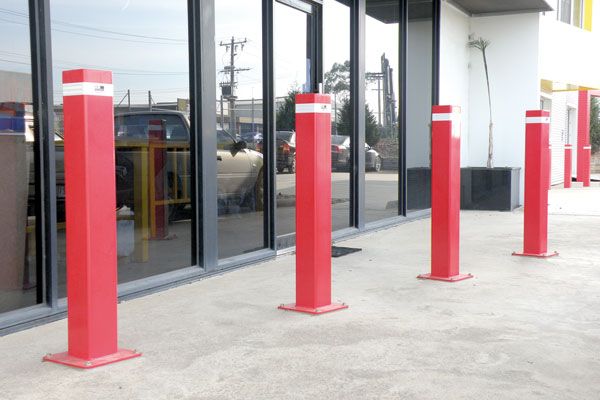

We offer flexible installation to meet diverse site requirements. Our Surface Mount Square Bollards feature robust, fully welded base plates and are suitable for permanent installation directly onto existing concrete surfaces. Alternatively, our Below Ground Square Bollards are equipped with fully welded starter bars for secure embedding into new concrete footings, which are essential for optimal performance on asphalt, paving, or any soft surface where maximum sub-surface anchoring is required.
Each square steel bollard is constructed from heavy-wall mild steel and undergoes hot-dip galvanisation as a standard procedure to ensure durable protection against rust and corrosion, thereby guaranteeing longevity in the varied environmental conditions of Australasia’s. For enhanced safety and regulatory compliance, the standard final coating is a safety yellow powder finish, which offers high visibility essential for the effective deployment of square safety bollards. Additionally, alternative colours can be accommodated upon request to align with specific corporate branding requirements.
Barrier Group’s Square Bollards are also supplied with all necessary high-tensile fixings for immediate installation. Furthermore, for sites requiring flexible perimeter security, optional chain rings are available for connecting chains or ropes; these rings can also be purchased separately for easy retrofitting to existing bollards by simply drilling and tapping M10 threads as required.
We also enhance our service by offering factory-backed installations to save you the hassle. Eliminate complexity and ensure compliance with our complete, end-to-end service offering.
Below Ground
| Code | Description | Square Size | Height Above Ground | Depth Below Ground | Wall Thickness | Weight | Finish |
| CS90BG-G | Bollard 90mm Square Below Ground – Galvanised | 90 mm | 1000 mm | 400 mm | 5 mm | 16.5 kg | HDG |
| CS90BG | Bollard 90mm Square Below Ground – Galvanised and Powder Coated | 90 mm | 1000 mm | 400 mm | 5 mm | 16.5 kg | HDG+PC |
| CS150BG-G | Bollard 150mm Square Below Ground – Galvanised | 150 mm | 1200 mm | 500 mm | 5 mm | 38 kg | HDG |
| CS150BG | Bollard 150mm Square Below Ground – Galvanised and Powder Coated | 150 mm | 1200 mm | 500 mm | 5 mm | 38 kg | HDG+PC |
Surface Mount
| Code | Description | Square Size | Height Above Ground | Wall Thickness | Base Plate Diameter | Base Plate Thickness | Weight | Finish |
| CS90SM-G | Bollard 90mm Square Surface Mounted – Galvanised | 90 mm | 1000 mm | 5 mm | 200 mm | 6 mm | 12.75 kg | HDG |
| CS90SM | Bollard 90mm Square Surface Mounted – Galvanised and Powder Coated | 90 mm | 1000 mm | 5 mm | 200 mm | 6 mm | 12.75 kg | HDG+PC |
| CS150SM-G | Bollard 150mm Square Surface Mounted – Galvanised | 150 mm | 1200 mm | 5 mm | 300 mm | 10 mm | 32 kg | HDG |
| CS150SM | Bollard 150mm Square Surface Mounted – Galvanised and Powder Coated | 150 mm | 1200 mm | 5 mm | 300 mm | 10 mm | 32 kg | HDG+PC |
