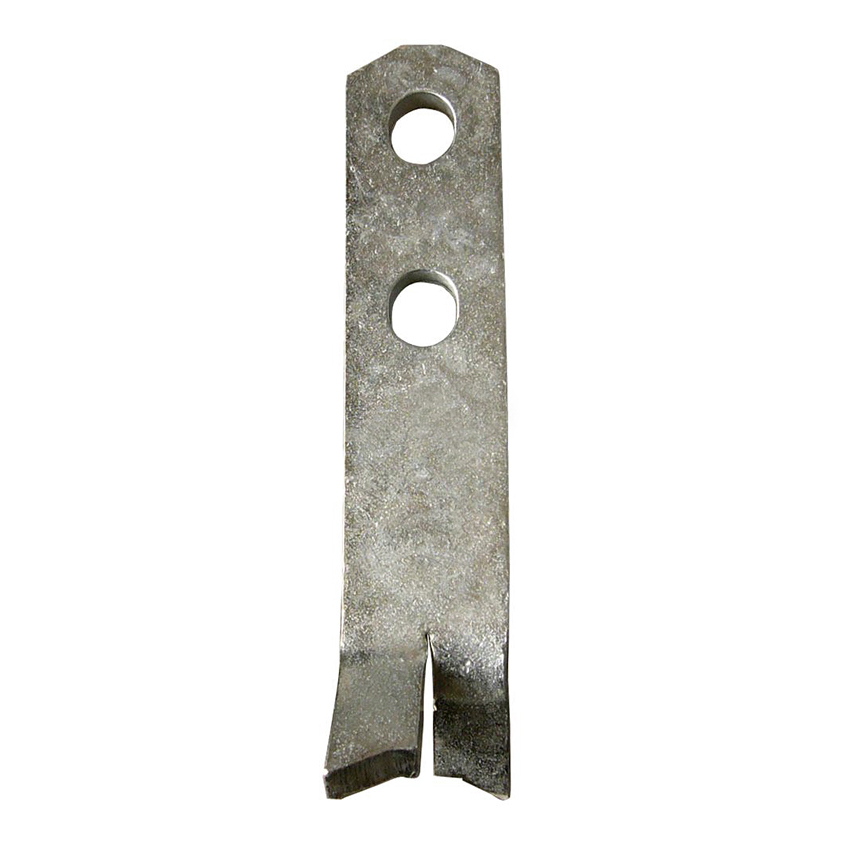

Spread Anchor
Austlift Spread Anchors are produced from high strength low alloy steel plates. Austlift Spread Anchors have high tensile strength and good elongation. Due to special material, Austlift Spread Anchors have high impact test value and can be used under low temperature circumstances (up to -20°C)
- Upper hole of Spread Anchor is used for connection with Austlift Ring Clutch. Bottom hole is used for reinforcement.
- Due to reinforcement, force is transmitted to precast concrete element.
- Austlift Spread Anchors can be used for lifting of precast concrete girders, plates other elements.

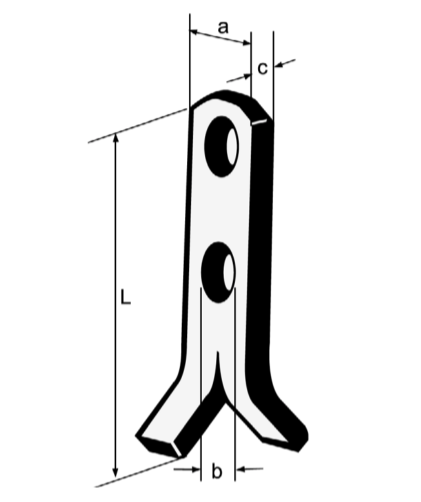

| CODE | WLL | Wt. | DIMENSIONS (mm) | |||
|---|---|---|---|---|---|---|
| (T) | (kg) | a | b | c | L | |
| 730711 | 0.7 | 0.113 | 30 | 14 | 5 | 110 |
| 731411 | 1.4 | 0.136 | 30 | 14 | 6 | 110 |
| 731416 | 1.4 | 0.20 | 30 | 14 | 6 | 160 |
| 732515 | 2.5 | 0.312 | 30 | 14 | 10 | 150 |
| 732510 | 2.5 | 0.428 | 30 | 14 | 10 | 200 |
| 732525 | 2.5 | 0.514 | 30 | 14 | 10 | 250 |
| 733016 | 3 | 0.439 | 40 | 18 | 10 | 160 |
| 733020 | 3 | 0.523 | 40 | 18 | 10 | 200 |
| 733028 | 3 | 0.823 | 40 | 18 | 10 | 280 |
| 734018 | 4 | 0.60 | 40 | 18 | 12 | 180 |
| 734024 | 4 | 0.824 | 40 | 18 | 12 | 240 |
| 734032 | 4 | 1.1 | 40 | 18 | 12 | 320 |
| 735018 | 5 | 0.765 | 40 | 18 | 15 | 180 |
| 735024 | 5 | 1.0 | 40 | 18 | 15 | 240 |
| 735040 | 5 | 1.7 | 40 | 18 | 15 | 400 |
| 737526 | 7.5 | 1.7 | 60 | 26 | 16 | 260 |
| 737530 | 7.5 | 2.0 | 60 | 26 | 16 | 300 |
| 737542 | 7.5 | 2.9 | 60 | 26 | 16 | 420 |
| 739030 | 10 | 2.5 | 60 | 26 | 20 | 300 |
| 739037 | 10 | 3.1 | 60 | 26 | 20 | 370 |
| 739052 | 10 | 4.5 | 60 | 26 | 20 | 520 |
