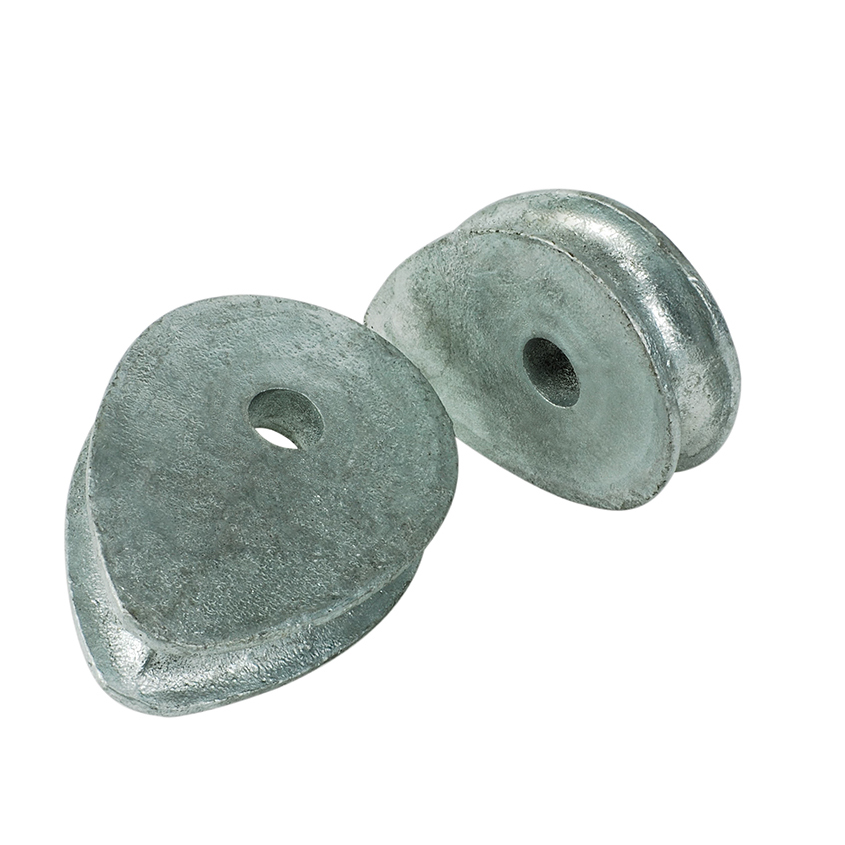

Solid Eye Thimble
FOR LIFTING PURPOSES
Austlift solid heart thimbles are commonly used to terminate crane ropes and are ideal where the thimble is required to interface directly with a rigging screw, turnbuckle or other rigging accessory where limited articulation is desired.
- Made from heat treated high tensile steel material.
- Hot dipped galvanised finish.
- Refer to the Australian Standards for advice on drilling larger hole sizes.
- Pre-drilled pilot hole.
| CODE | SIZE (mm) | MBF (kN) | Wt. (kg) | DIMENSIONS (mm) | ||||
|---|---|---|---|---|---|---|---|---|
| A | B | C | E | W | ||||
| 302914 | 14 | 124 | 0.7 | 56 | 40 | 15 | 9 | 10 |
| 302916 | 16 | 161 | 1 | 70 | 50 | 17.5 | 11 | 10 |
| 302918 | 18 | 204 | 1.49 | 130 | 90 | 28.5 | 20 | 10 |
| 302920 | 20 | 252 | 1.93 | 140 | 100 | 31 | 22 | 10 |
| 302928 | 28 | 494 | 5.0 | 200 | 140 | 42 | 31 | 10 |
| 302932 | 32 | 646 | 6.7 | 220 | 160 | 47 | 35 | 10 |
| 302940 | 40 | 1010 | 12.7 | 280 | 200 | 58 | 44 | 10 |
