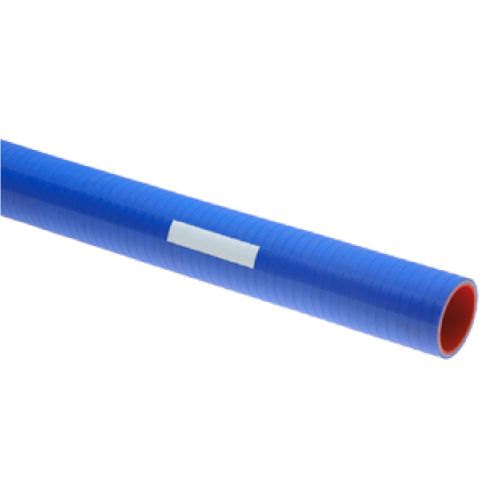

Silicone Radiator Straight Lengths – Gates
Construction: Premium 4-ply polyester construction. Industry-standard blue cover colour for easy identification. High heat resistance material meets or exceeds OE specifications. Resistant to electrochemical degradation (ECD). UV and ozone resistant
Application: Used when hose routing passes near turbo or hot side of the charged air system. Meets and exceeds all requirements
TMC RP303B Grade I and Grade II
Temperature: -53.9°C +176.6°C (-65°F to +350°F) recommended operating temperature range.
Packaging: 3ft / 0.91m
Caution: Do not use for fuel or oil transfer applications
| Internal Diameter | |
| In. | mm |
| 1/4 | 6.35 |
| 3/8 | 9.525 |
| 1/2 | 12.7 |
| 5/8 | 15.875 |
| 3/4 | 19.05 |
| 7/8 | 22.225 |
| 1 | 25.4 |
| 1 1/16 | 26.9875 |
| 1 1/8 | 28.575 |
| 1 1/4 | 31.75 |
| 1 5/16 | 33.3375 |
| 1 3/8 | 34.925 |
| 1 1/2 | 38.1 |
| 1 5/8 | 41.275 |
| 1 3/4 | 44.45 |
| 1 7/8 | 47.625 |
| 2 | 50.8 |
| 2 1/8 | 53.975 |
| 2 1/4 | 57.15 |
| 2 3/8 | 60.325 |
| 2 1/2 | 63.5 |
| 2 5/8 | 66.675 |
| 2 3/4 | 69.85 |
| 2 7/8 | 73.025 |
| 3 | 76.2 |
| 3 1/8 | 79.375 |
| 3 1/4 | 82.55 |
| 3 3/8 | 85.725 |
| 3 1/2 | 88.9 |
| 3 3/4 | 95.25 |
| 4 | 101.6 |
| 4 1/2 | 114.3 |
| 5 | 127 |
| 5 1/2 | 139.7 |
| 6 | 152.4 |
