SH Type Socket and Hose Barb Hi Cupla – Nitto
From factory air line to pneumatic tool connection, available in various body materials, sizes and end configurations. Excellent durability.
- An excellent general purpose coupling for connecting factory air supply to pneumatic tools.
- Steel coupling is suitable for air. Brass or stainless steel is suitable for water. Note that fluid will come out from the plug when disconnected.
- Critical structural parts of steel models are heat-treated for increased strength giving greater durability and resistance to wear.
- Available in various body materials, sizes and end configurations applicable to a wide range of applications.

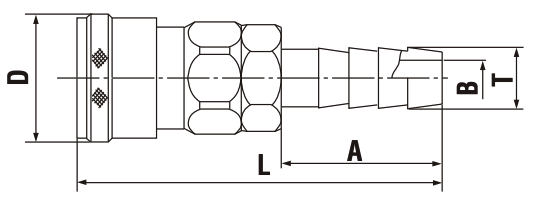

| Model | Application (Hose) | Mass (g) Steel | Mass (g) Brass | Mass (g) S/Steel | L (mm) | øD (mm) | A (mm) | øT (mm) | øB (mm) |
| 17SH | 1/4″ | 99 | – | – | (69.5) | (26.5) | 27 | 7.2 | 4.5 |
| 20SH | 1/4″ | 99 | 105 | 97 | (72.5) | (26.5) *1 | 30 | 9 | 5 |
| 30SH | 3/8″ | 102 | 107 | 100 | (76.5) | (26.5) *1 | 34 | 11.3 | 7.5 |
| 40SH | 1/2″ | 115 | 122 | 113 | (78.5) | (26.5) *1 | 36 | 15 | 9 |
| 400SH | 1/2″ | 220 | 235 | 230 | (83) | 35 | 36 | 15 | 9 |
| 600SH | 3/4″ | 243 | 262 | 242 | (92) | 35 | 45 | 21 | 14 |
| 800SH | 1″ | 327 | 350 | 325 | (102) | 35 | 55 | 27 | 16 |
*1 : D = 25.4 for brass and stainless steel models.
Not suitable for vacuum application in either connected or disconnected condition.
Fluid must run form socket to plug.
