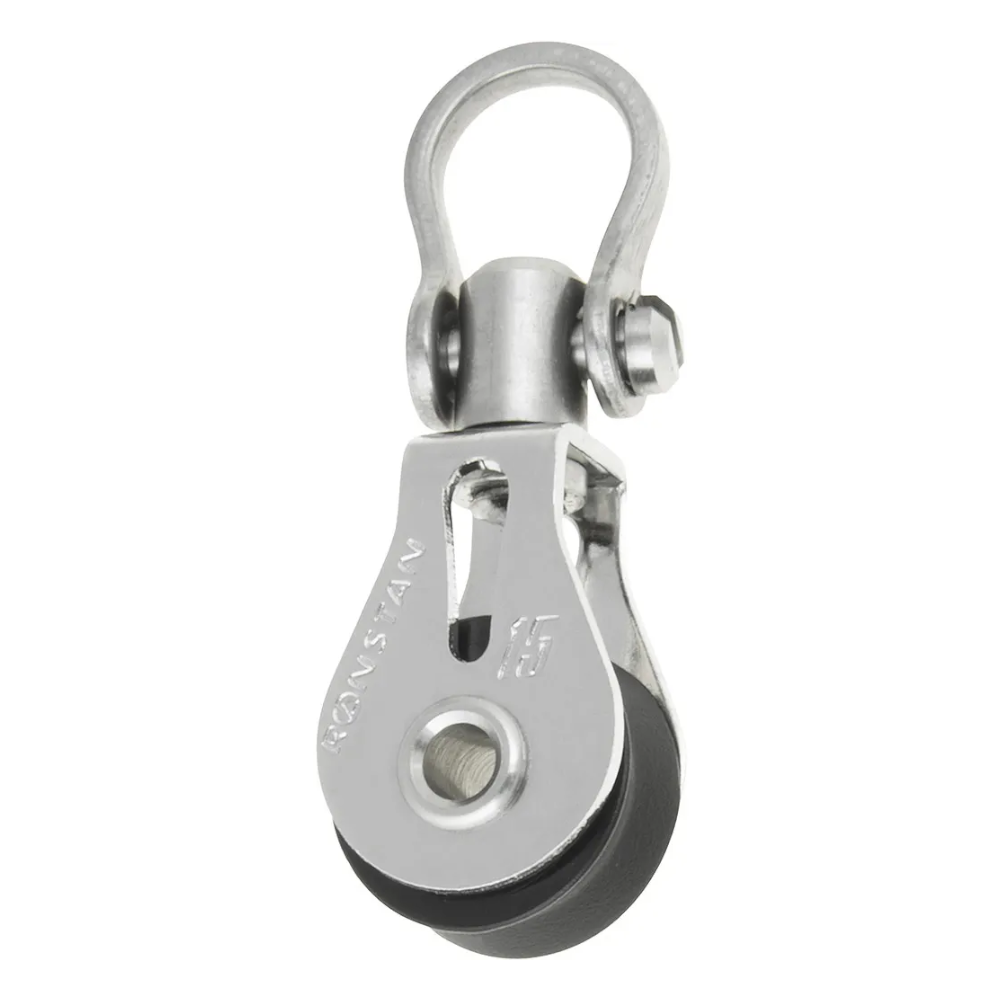

Series 15 Ball Bearing Block with Swivel Shackle – RF15100
A lightweight yet strong block with a single 15mm sheave, stainless steel cheeks and swivel shackle head.
Materials
BB Sheaves: UV stabilised acetal
Ball Bearings: Stainless Steel
Cheeks: Grade 316 Stainless Steel
Applications
Dinghy Control Lines
Vangs, Cunninghams and Tweakers
Shock Cord Tensioning Systems
Features
Smallest and lightest ball bearing block available
Precision moulded acetal sheave running on stainless steel ball bearings provide high performance & low friction
| Code | Description | Sheave Diameter | Max Rope Diameter | Pin Diameter | Maximum Working Load | Breaking Load | Weight | |||
| mm | in. | mm | in. | mm | in. | kg | kg | g | ||
| RF15100 | Single block, swivel shackle head | 15 | 5/8 | 5 | 3/16 | 3 | 1/8 | 120 | 400 | 11 |
