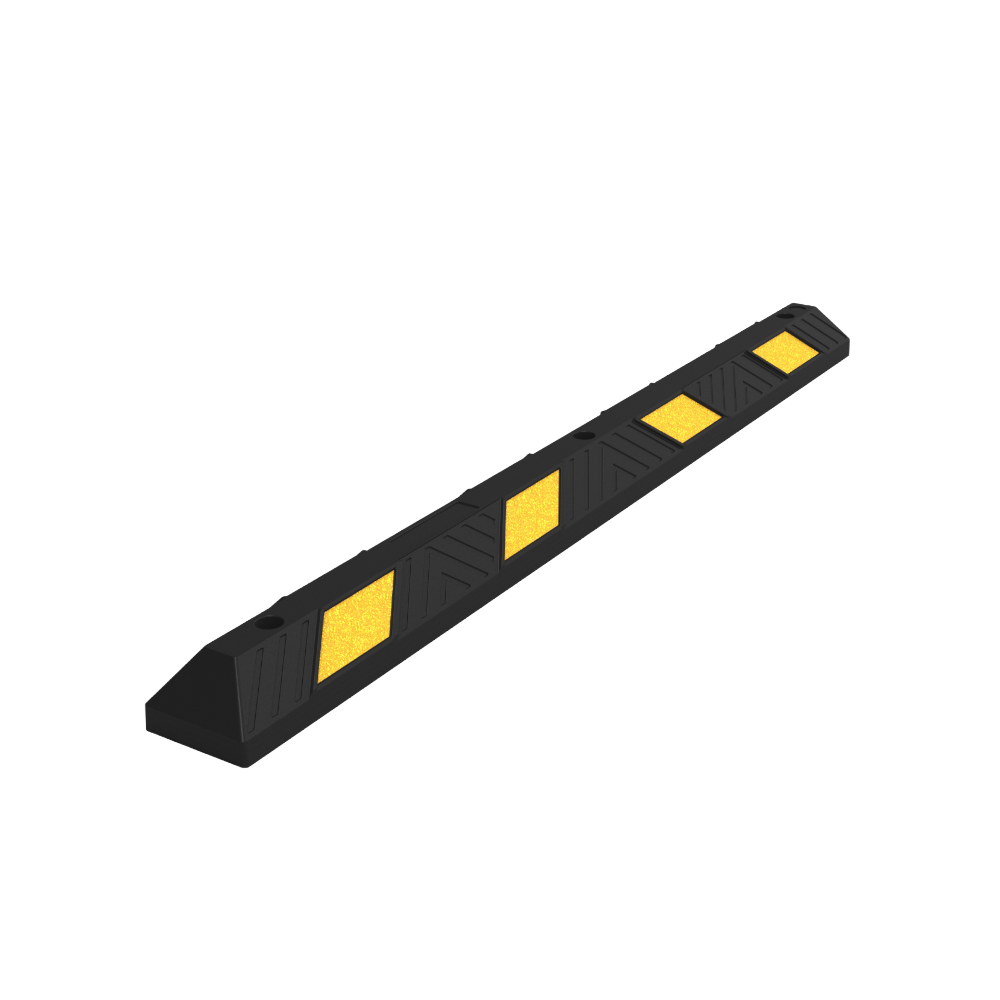

Rubber Wheel Stop

Rubber Wheel Stop
Rubber Wheel Stop - Image 2
Rubber Wheel Stop - Image 3
Rubber Wheel Stop - Image 4
  • Complies with AS/NZS 2890.1:2004
  • Recycled and natural rubber that won’t chip or corrode
  • Hi Vis Panels available in Yellow or Green or Blue
  • Economical and easy to install
  • Fixings sold separately

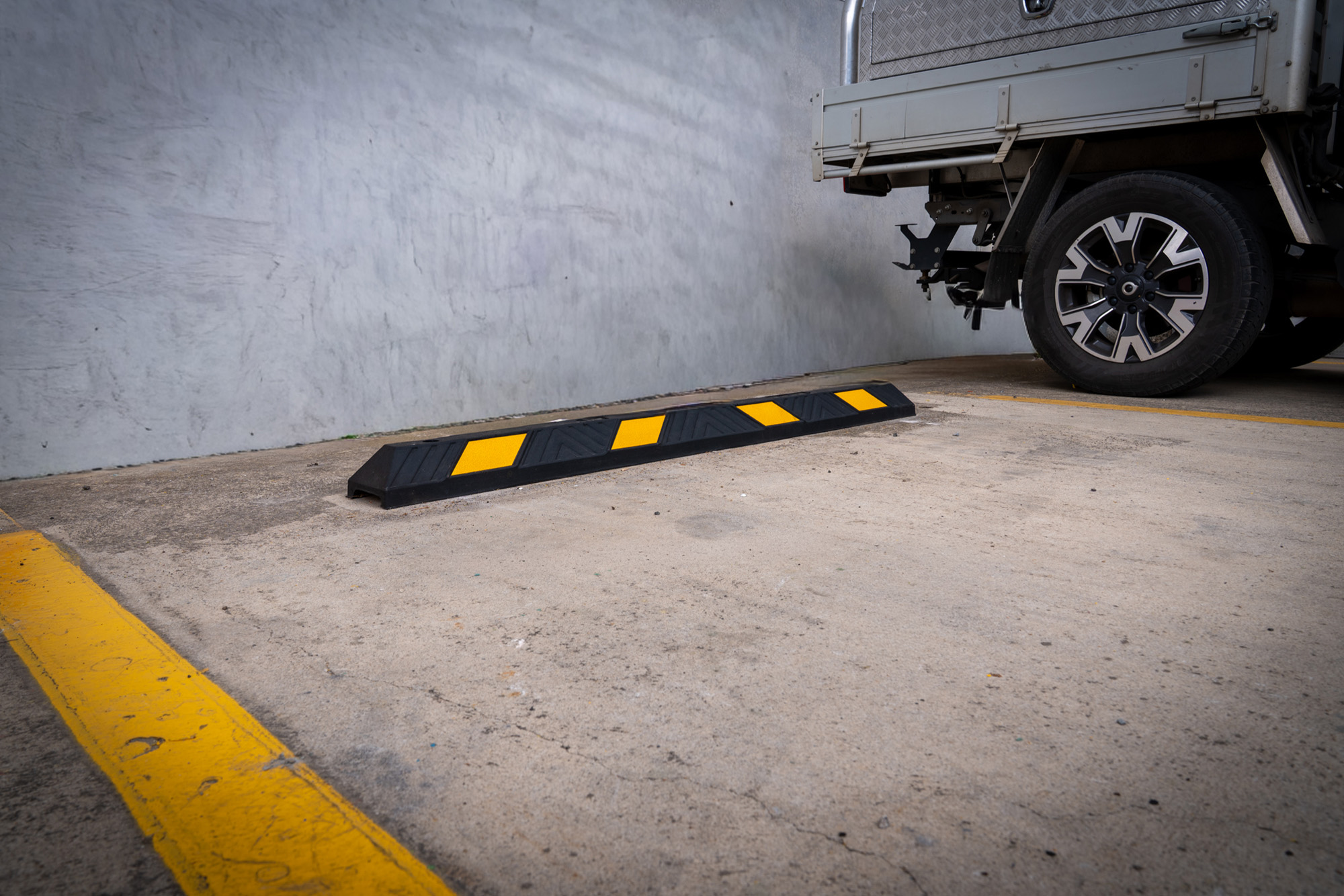

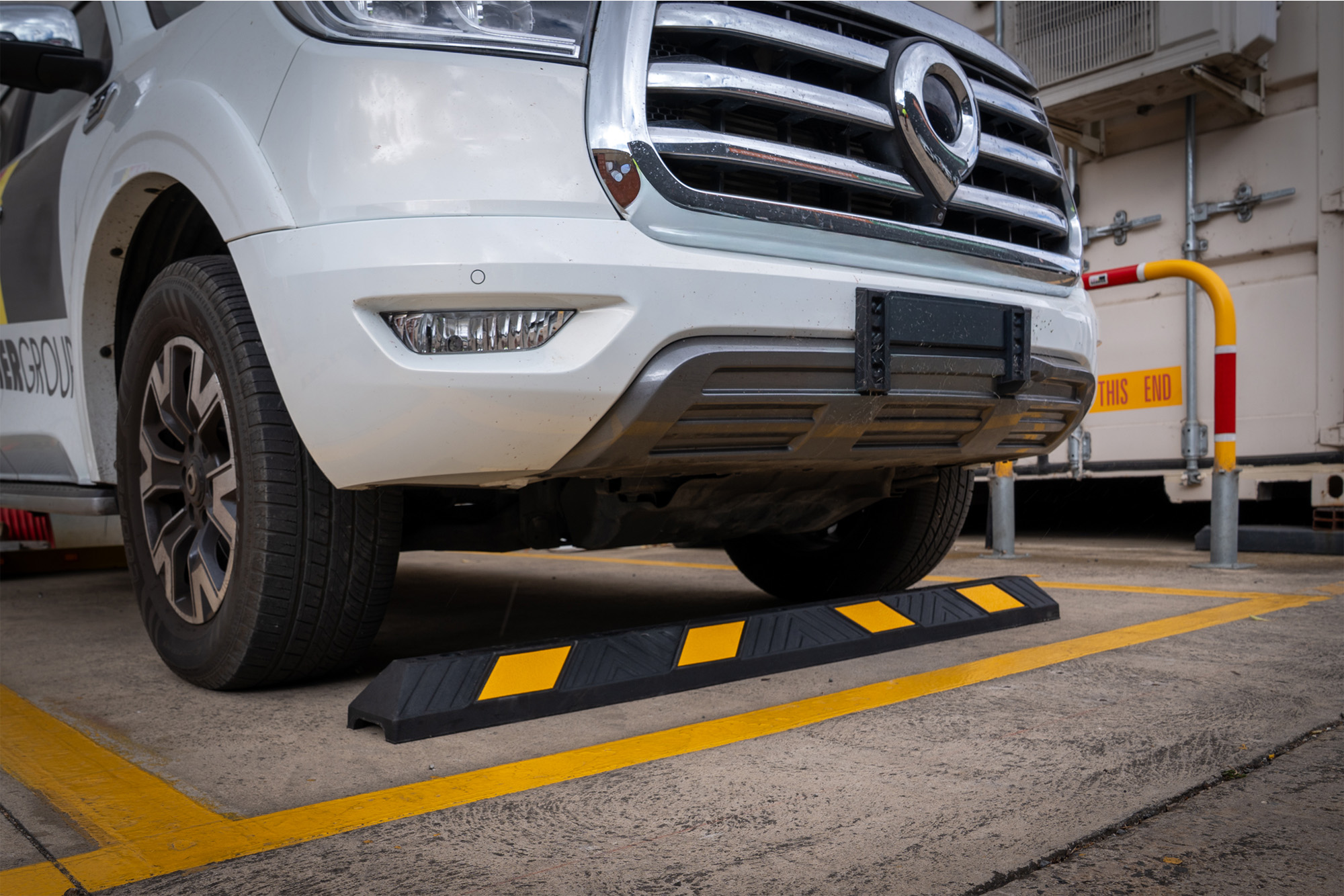

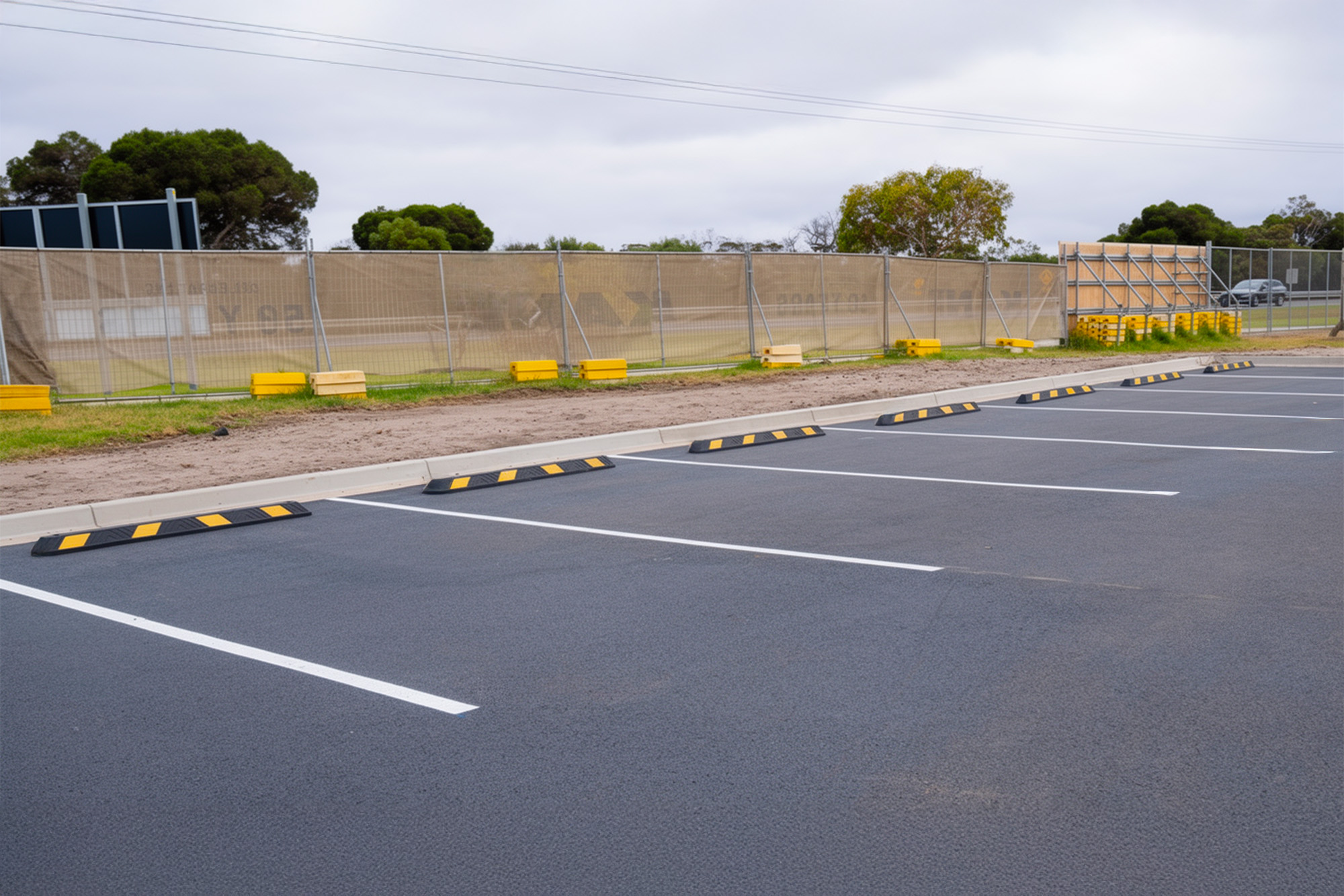

Complying with AS/NZS 2890.1:2004, Barrier Group Rubber Wheel Stops meet the growing parking demand for people with private and public car parks. While the black wheel stop with hi vis yellow panels is regularly installed in generic parking spaces, the demand for wheel stops designed to be used within designated Disabilities and the Electric Vehicle (EV) car spaces has also increased. The blue panel model highlights parking spaces reserved for people with disabilities and the green panels utilised in EV charging station car parks.

What is a wheel stop?

Wheel stop limits the travel of a vehicle into a parking space for the following reasons:

  • Where overhang may become inconvenient or hazardous for pedestrians.
  • Prevent contact with an end barrier or high kerb.
  • Prevent encroachment into an opposing parking space.
 A wheel stop must not be in the path of pedestrians accessing a parked vehicle.

Installation of the rubber wheel stops can be with either a KIT14 (M10 x 150mm Hex Head Coach Screw and Anchor Plug/Washer kit) or with Gravel Spikes. Three fixings points in each wheel stop unit allow for a secure placement. Fixings are sold separately to allow for these different applications.

As part of our ongoing commitment to product improvement, from January 2026, the RWS1650 will be updated to include several enhancements that increase durability and visual appeal.

Model RWS1650 RWS1650-BG RWS1650-BB
Description Rubber Wheel Stop – Black/Yellow Rubber Wheel Stop 1650mm – Black/Green Rubber Wheel Stop – Black/Blue
Material Recycled and natural rubber Recycled and natural rubber Recycled and natural rubber
Finish Solid Black Rubber with Hi-Vis Yellow panels Solid Black Rubber with Hi-Vis Green panels Solid Black Rubber with Hi-Vis Blue panels
Length 1650 mm 1650 mm 1650 mm
Width 160 mm 160 mm 160 mm
Height 100 mm 100 mm 100 mm
Weight 12 kg 12 kg 12 kg
Fixings 3 x 150 mm Masonry anchors (gravel spikes optional) 3 x 150 mm Masonry anchors (gravel spikes optional) 3 x 150 mm Masonry anchors (gravel spikes optional)



Additional parts

Model Description
KIT43 Fixing Kit of 3 x Asphalt Screw Bolt Anchor and Washer
KIT14 Fixing Kit for RWS1650
Spikes Gravel Spike 12mm x 300mm – Galvanised
FIX1426 12 x 225mm Asphalt Screw Bolt Anchor and Washer – Galvanised
