Round Bollards Heavy Duty Steel – Angled Cap

Round Bollards Heavy Duty Steel - Angled Cap
Round Bollards Heavy Duty Steel - Angled Cap - Image 2
  • Heavy-duty 90mm & 140mm round bollards
  • 30° angled cast aluminium caps
  • Galvanised or hot dipped powder coated finish
  • Surface Mount or Below Ground installations
  • Caps also sold separately and can be retro fitted to existing bollards
  • Prevents items from being sat/discarded on top of the bollard

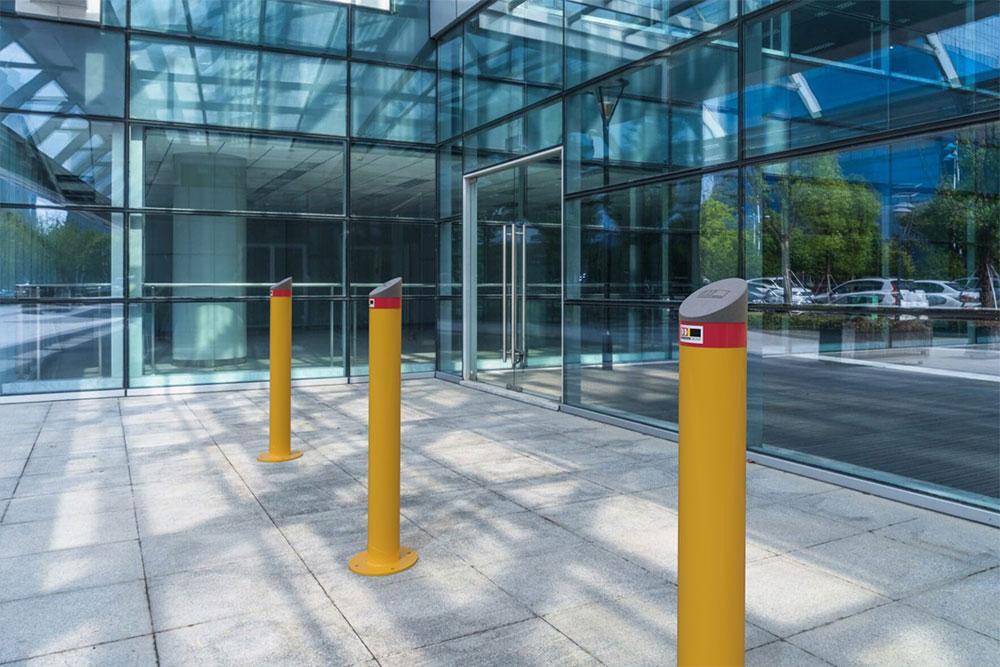

As the leading supplier and manufacturer of high-security and urban planning solutions across Australia and New Zealand, the Angled Cap Heavy Duty Steel Round Bollard provides modern permanent protection with modern architectural aesthetics. These formidable heavy-duty steel bollards are engineered for permanent defence in critical zones such as car parks, high-foot-traffic businesses, and shared public spaces in major metropolitan and rural areas.

The defining feature is the streamlined, 30° sloped cap, which not only imparts a contemporary urban look but is also a deliberate functional design element that prevents unsightly litter and rubbish from resting on the steel bollard post top, significantly enhancing facility maintenance and visual appeal.

The Angled Cap Heavy Duty Steel Bollard is available in both a surface-mounted and a robust below-ground steel bollard model, ensuring secure installation across a wide range of commercial and industrial environments. These bollards are manufactured from high-grade steel and are available in a standard hot-dip galvanised finish to ensure increased corrosion resistance, or with a durable powder-coated safety yellow finish, which is the standard high-visibility option; alternative colours can be supplied upon request.

Furthermore, the innovative angled caps are designed to perfectly fit our existing 90mm and 140mm heavy-duty round steel bollard range. They can be purchased separately for cost-effective retrofitting to existing steel bollards.

Optional chain rings are available for connecting chains or ropes. Chain ring kits are sold in pairs and may also be purchased separately for retrofitting to existing bollards, requiring drilling and tapping M10 threads as necessary.

We also enhance our service by offering factory-backed installations to save you the hassle. Eliminate complexity and ensure compliance with our complete, end-to-end service offering.

Below Ground

Code Description Bollard Diameter Height Above Ground Depth Below Ground Wall Thickness Weight Finish
CA90BG-G Bollard 90mm Below Ground with Cast Aluminium Angled Cap – Galvanised 90 mm 1060 mm 380 mm 5 mm 14.8 kg HDG
CA90BG Bollard 90mm Below Ground with Cast Aluminium Angled Cap – Galvanised and Powder Coated 90 mm 1060 mm 380 mm 5 mm 14.8 kg HDG+PC
CA140BG-G Bollard 140mm Below Ground with Cast Aluminium Angled Cap – Galvanised 140 mm 1290 mm 500 mm 5 mm 29.4 kg HDG
CA140BG Bollard 140mm Below Ground with Cast Aluminium Angled Cap – Galvanised and Powder Coated 140 mm 1290 mm 500 mm 5 mm 29.4 kg HDG+PC

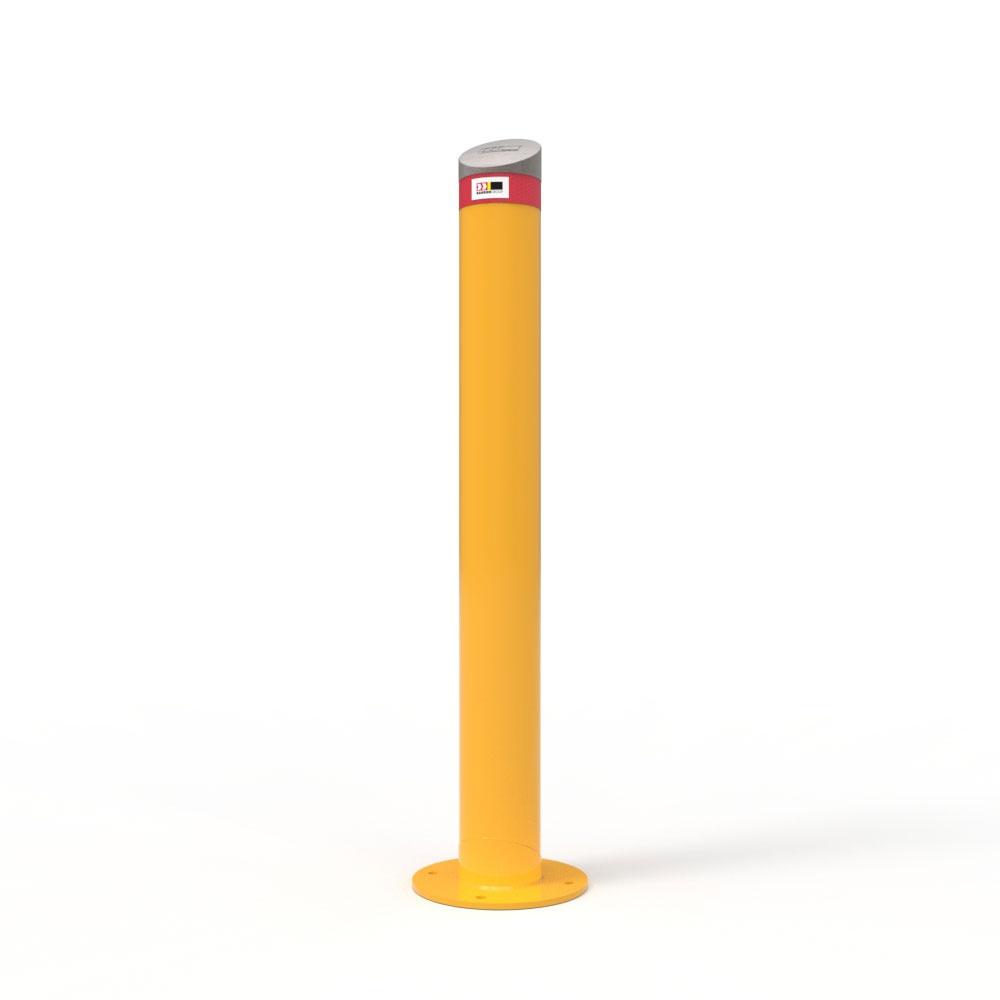

Surface Mount

Code Description Bollard Diameter Height Above Ground Wall Thickness Base Plate Diameter Base Plate Thickness Weight Finish
CA90SM-G Bollard 90mm Surface Mounted with Cast Aluminium Angled Cap – Galvanised 90 mm 1060 mm 5 mm 225 mm 6 mm 11.3 kg HDG
CA90SM Bollard 90mm Surface Mounted with Cast Aluminium Angled Cap – Galvanised and Powder Coated 90 mm 1060 mm 5 mm 225 mm 6 mm 11.3 kg HDG+PC
CA140SM-G Bollard 140mm Surface Mounted with Cast Aluminium Angled Cap – Galvanised 140 mm 1290 mm 5 mm 300 mm 10 mm 25.1 kg HDG
CA140SM Bollard 140mm Surface Mounted with Cast Aluminium Angled Cap – Galvanised and Powder Coated 140 mm 1290 mm 5 mm 300 mm 10 mm 25.1 kg HDG+PC
