Round Bollards Heavy Duty Steel
- Cast aluminium caps provide a high quality finish.
- Standard class 1 reflective band.
- Fully welded heavy steel base plate.
- Welded anchoring bars for fixing into concrete footing.
- Galvanised and powder coated or galvanised only.
- Optional chain ring kits are available for connecting chains or ropes to our bollards.

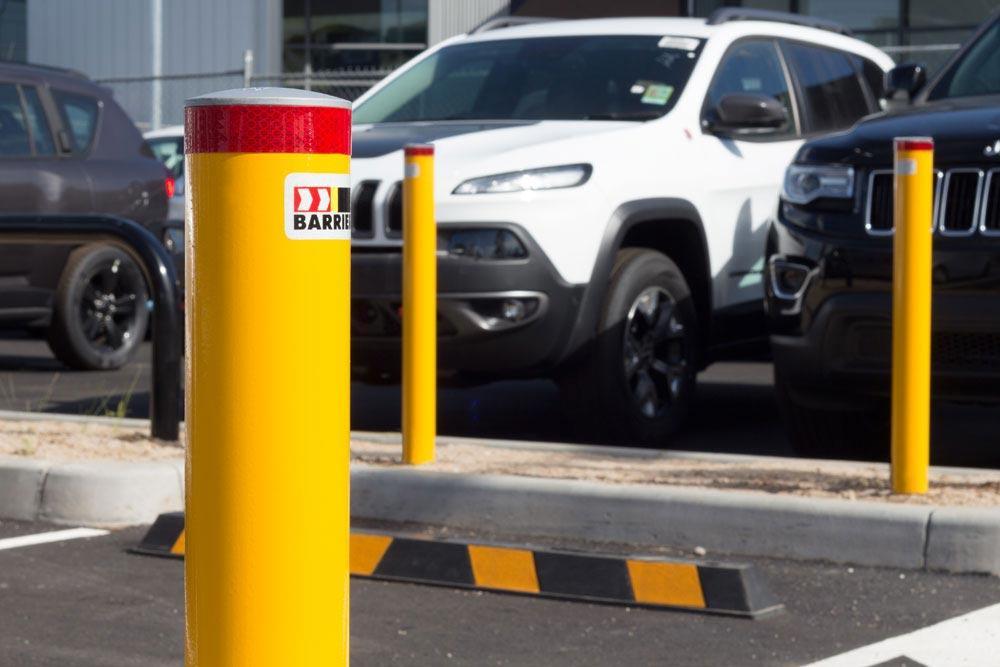

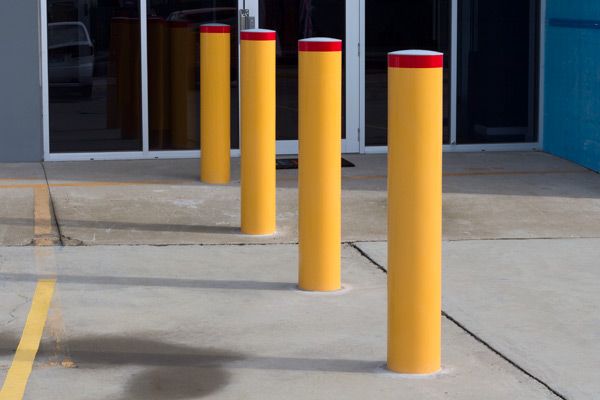

Our fixed round, surface mount and in-ground bollards are designed for traffic control situations and asset protection.
The surface mount bollards have fully welded base plates and are suitable for installation onto any concrete surface. The in-ground bollards have fully welded starter bars for installation into new concrete footings. Suitable for installation in asphalt or any soft surface where a concrete footing will be necessary.
All our bollards are supplied complete with necessary fixings. They are manufactured from heavy wall mild steel and hot dip galvanised as standard with the option of powder coating as a final finish. (Safety yellow is our standard colour. Other colours are available on request).
Optional chain rings are available for connecting chains or ropes. Chain ring-kits are sold as pairs and can also be purchased separately for retro fitting to existing bollards by drilling and tapping M10 threads as required.
Below Ground
| Code | Description | Bollard Diameter | Height Above Ground | Depth Below Ground | Wall Thickness | Weight | Finish |
| C90BG-G | Bollard 90mm Below Ground – Galvanised | 90 mm | 1000 mm | 380 mm | 5 mm | 12 kg | HDG |
| C90BG | Bollard 90mm Below Ground – Galvanised and Powder Coated | 90 mm | 1000 mm | 380 mm | 5 mm | 12 kg | HDG+PC |
| C140BG-G | Bollard 140mm Below Ground – Galvanised | 140 mm | 1200 mm | 500 mm | 5 mm | 29 kg | HDG |
| C140BG | Bollard 140mm Below Ground – Galvanised and Powder Coated | 140 mm | 1200 mm | 500 mm | 5 mm | 29 kg | HDG+PC |
| C165BG-G | Bollard 165mm Below Ground – Galvanised | 165 mm | 1300 mm | 650 mm | 5 mm | 40 kg | HDG |
| C165BG | Bollard 165mm Below Ground – Galvanised and Powder Coated | 165 mm | 1300 mm | 650 mm | 5 mm | 40 kg | HDG+PC |
| C220BG-G | Bollard 220mm Below Ground – Galvanised | 220 mm | 1300 mm | 650 mm | 6.4 mm | 53 kg | HDG |
| C220BG | Bollard 220mm Below Ground – Galvanised and Powder Coated | 220 mm | 1300 mm | 650 mm | 6.4 mm | 53 kg | HDG+PC |
Surface Mount
| Code | Description | Bollard Diameter | Height Above Ground | Wall Thickness | Base Plate Diameter | Base Plate Thickness | Weight | Finish |

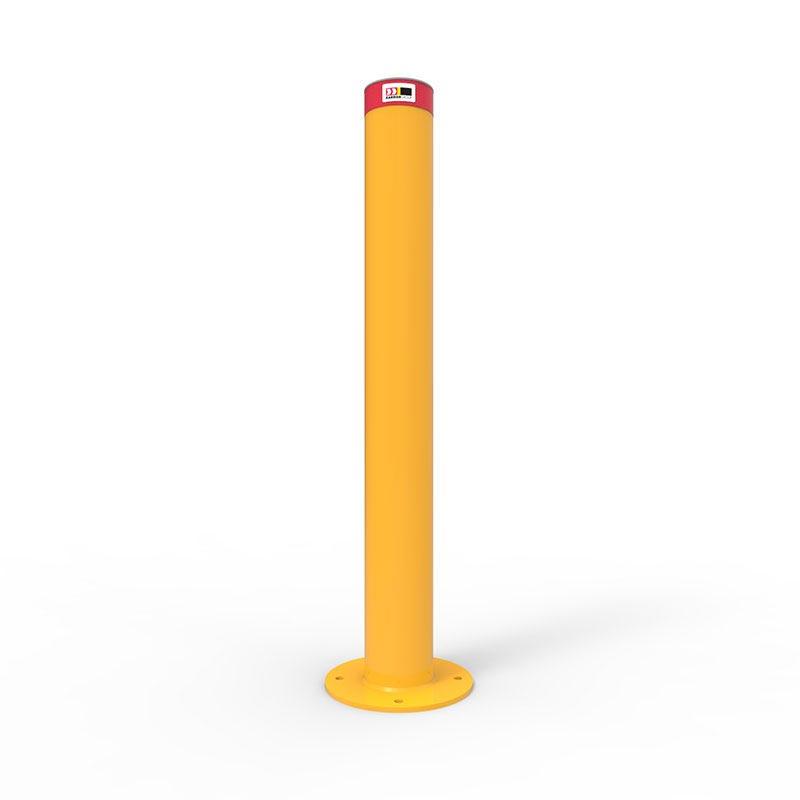

| C90SM-G | Bollard 90mm Surface Mounted – Galvanised | 90 mm | 1000 mm | 5 mm | 225 mm | 6 mm | 9 kg | HDG |
| C90SM | Bollard 90mm Surface Mounted – Galvanised and Powder Coated | 90 mm | 1000 mm | 5 mm | 225 mm | 6 mm | 9 kg | HDG+PC |
| C140SM-G | Bollard 140mm Surface Mounted – Galvanised | 140 mm | 1200 mm | 5 mm | 300 mm | 10 mm | 23 kg | HDG |
| C140SM | Bollard 140mm Surface Mounted – Galvanised and Powder Coated | 140 mm | 1200 mm | 5 mm | 300 mm | 10 mm | 23 kg | HDG+PC |
| C165SM-G | Bollard 165mm Surface Mounted – Galvanised | 165 mm | 1300 mm | 5 mm | 350 mm | 10 mm | 34 kg | HDG |
| C165SM | Bollard 165mm Surface Mounted – Galvanised and Powder Coated | 165 mm | 1300 mm | 5 mm | 350 mm | 10 mm | 34 kg | HDG+PC |
| C220SM-G | Bollard 220mm Surface Mounted – Galvanised | 220 mm | 1300 mm | 6.4 mm | 400 mm | 12 mm | 45 kg | HDG |
| C220SM | Bollard 220mm Surface Mounted – Galvanised and Powder Coated | 220 mm | 1300 mm | 6.4 mm | 400 mm | 12 mm | 45 kg | HDG+PC |
Accessories
| Code | Description |
| HDGC6 | Chain 6mm – Galvanised |
| HDGC6-Y | Chain 6mm – Galvanised and Powder Coated Safety Yellow |
| RKIT-G | Chain Ring Kit to suit Heavy Wall Bollards – Stainless |
| RKIT-E | Chain Ring Kit to suit Economy Bollards – Stainless |
