Rib-Rail Modular Guard Rail
- Modular design allows maximum design flexibility.
- Heavy steel rails are powder coated safety yellow.
- Solid bolted rail to post connections.
- Large 250 x 250 steel base plates for maximum hold down.
- All components supplied packaged in individual cardboard cartons.

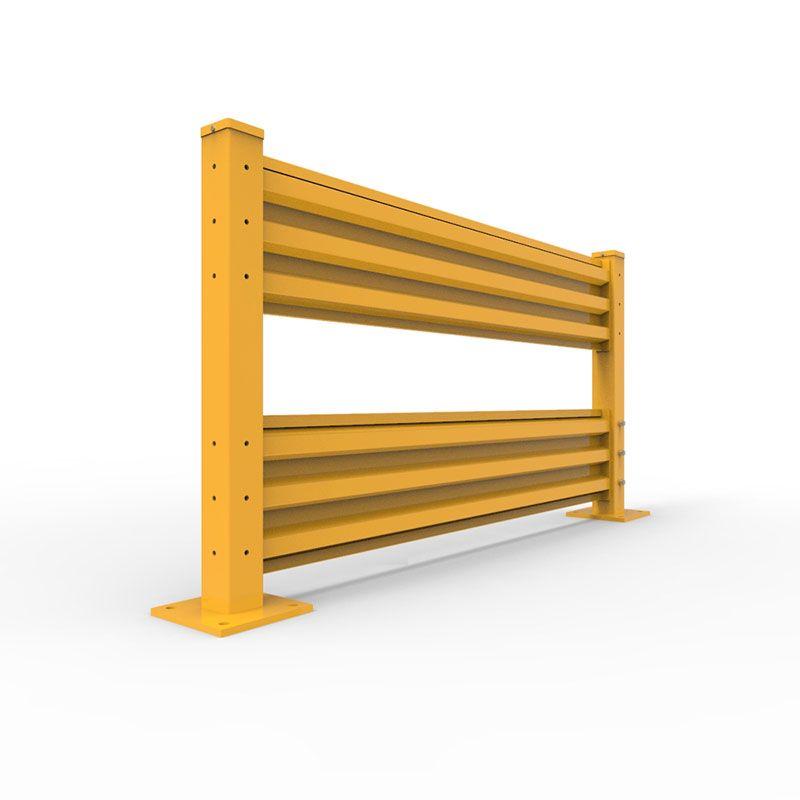

Rib-Rail is a powder coated steel modular guardrail system comprising four standard length steel rails used with either single or double height posts. The bolt on rails can attach to the posts on any of the four sides for maximum flexibility.
Rib-Rail is ideal for applications in and around warehouses and factories, it is impact rated to 4500kgs at 6 km/h. Posts are supplied with all necessary fixings.
| Code | Image | Description | Material | Size | Finish | Connection |

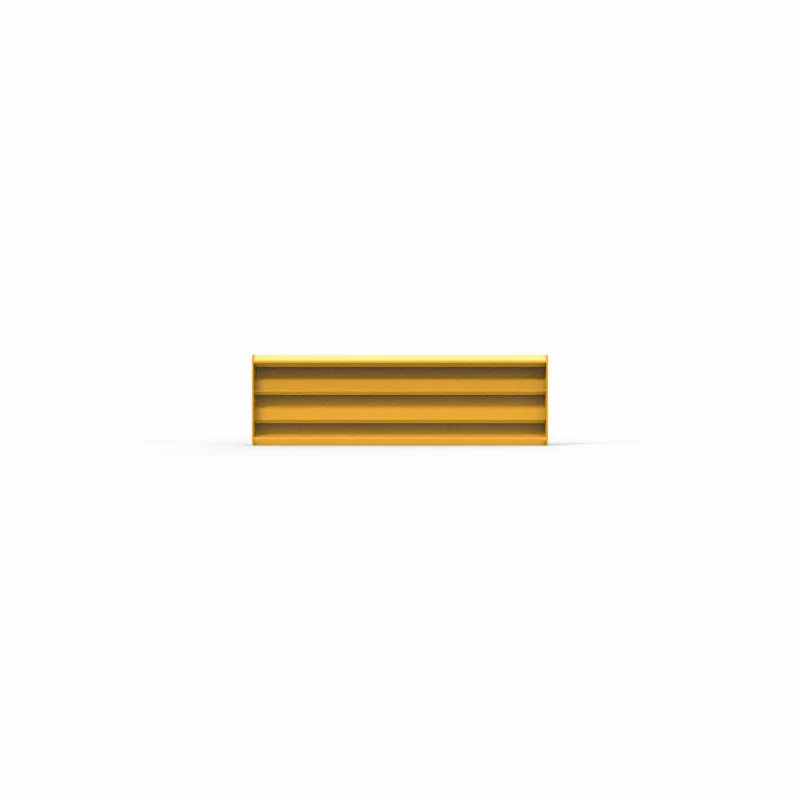

| RR1220-Y |  |
Rib-Rail 1220 x 380 Including Fixings – Powder Coated Safety Yellow | Steel | 375 (H) x 1220 (L) mm | Powder-coated Safety Yellow | Bolt-on |

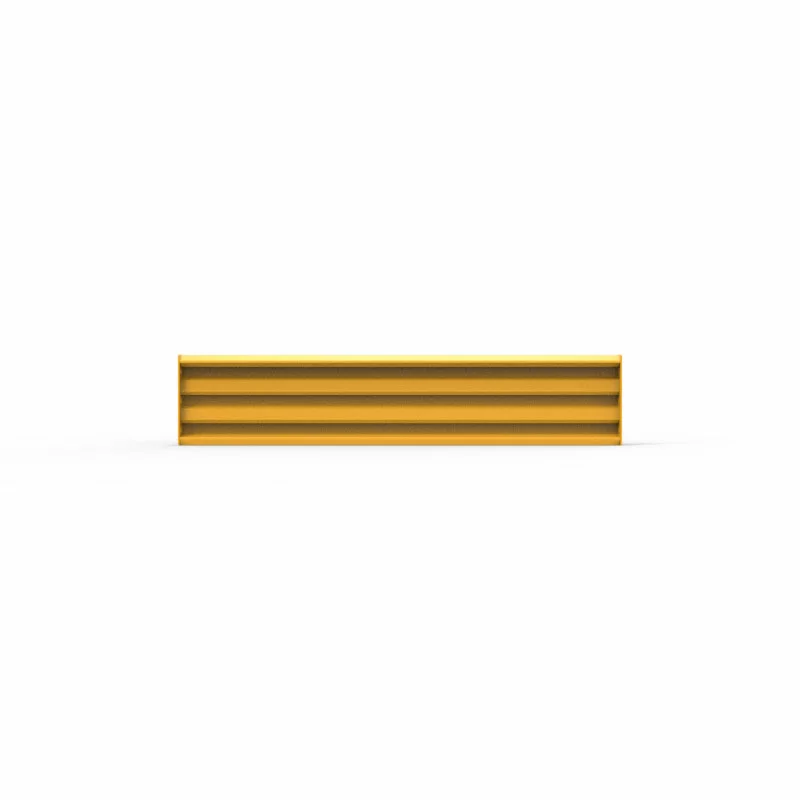

| RR1830-Y |  |
Rib-Rail 1830 x 380 Including Fixings – Powder Coated Safety Yellow | Steel | 375 (H) x 1830 (L) mm | Powder-coated Safety Yellow | Bolt-on |

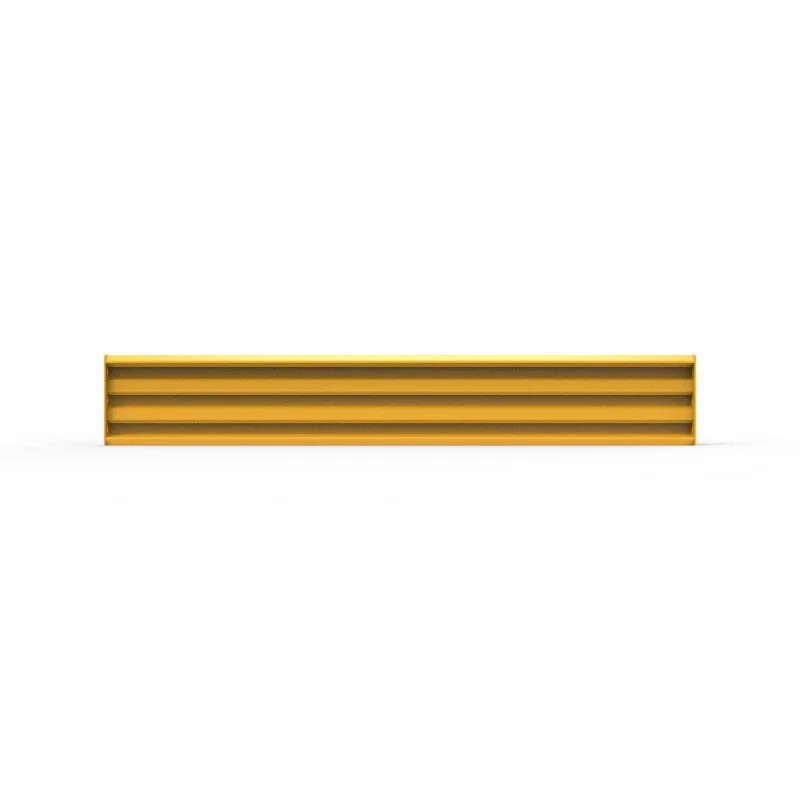

| RR2440-Y |  |
Rib-Rail 2440 x 380 Including Fixings – Powder Coated Safety Yellow | Steel | 375 (H) x 2440 (L) mm | Powder-coated Safety Yellow | Bolt-on |

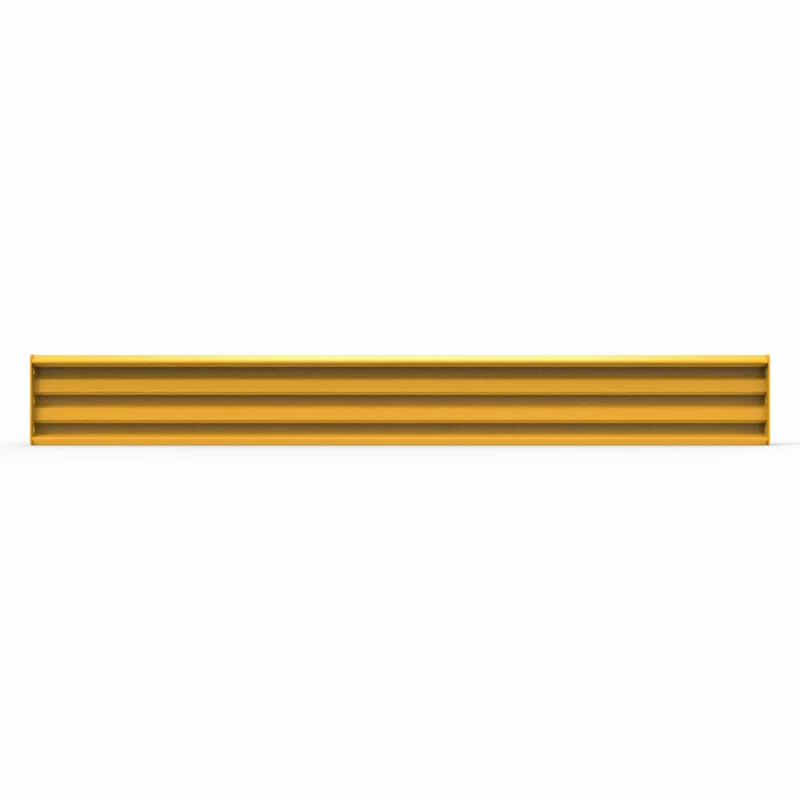

| RR3050-Y |  |
Rib-Rail 3050 x 380 Including Fixings – Powder Coated Safety Yellow | Steel | 375 (H) x 3050 (L) mm | Powder-coated Safety Yellow | Bolt-on |

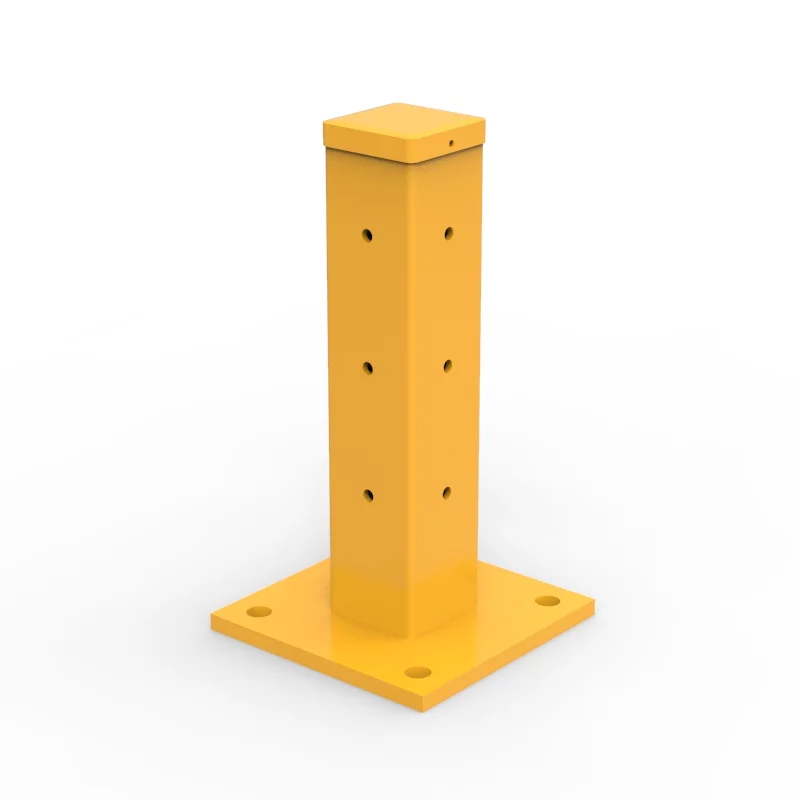

| RRP480-SM |  |
Rib-Rail Single Height Post 480mm Including Fixings – Powder Coated Safety Yellow | Steel | 100 x 6 mm WT post with 254 x 16 mm thick base, 470 mm H | Powder-coated Safety Yellow | Bolt-on |
|

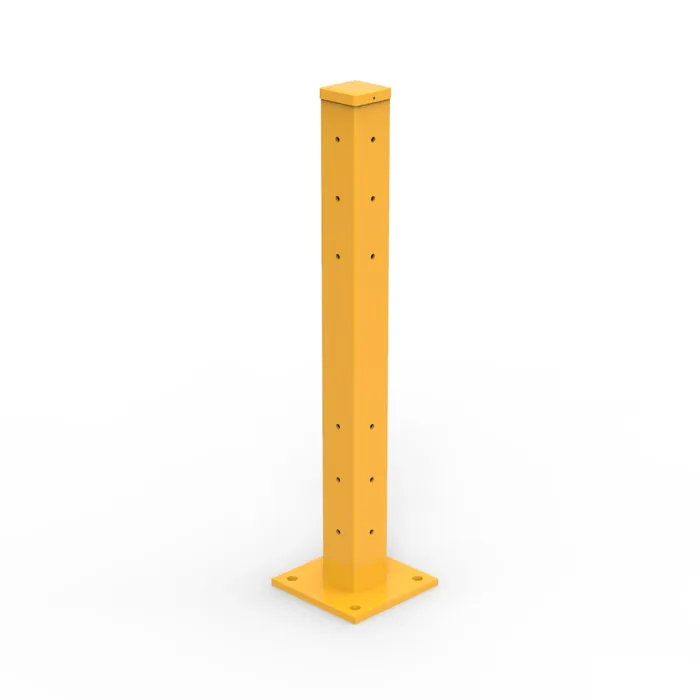

RRP1100-SM
|
 |
Rib-Rail Double Height Post 1100mm Including Fixings – Powder Coated Safety Yellow | Steel | 100 x 6 mm WT post with 254 x 16 mm thick base, 1100 mm H | Powder-coated Safety Yellow | Bolt-on |
