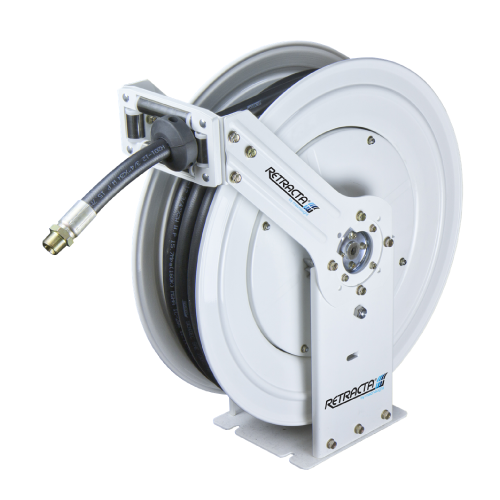

Retracta F Series HD Twin Pedestal Reel – Air / Water / Oil / Grease

Retracta F Series HD Twin Pedestal Reel - Air / Water / Oil / Grease

The Retracta F Series range of heavy duty reels are designed and manufactured using the highest quality materials and finish that guarantee reliability and durability. The reels are ideal for use in a wide range of applications and can be fitted in a variety of positions such as wall, floor, tank, truck or overhead.

  • Adjustable roller guide direction for versatility
  • Fully Serviceable
  • Twin pedestal for strength and stability
  • Heavy duty powder coated steel construction
  • Heavy duty steel spring enclosure for safety and reliability
  • Two spring packs for maximum hose return power
Frame Twin Ped HD Twin Ped HD Twin Ped HD Twin Ped HD Bare Reel Twin Ped HD Twin Ped HD
Nominal Size (ID) 3/8″ 1/2″ 1/2″ 3/4″ 3/4″ 3/4″
Nominal Size Hose Capacity 15m 15m 20m 15m 15m 20m
Fluid Type Grease Oil Air/Water Oil/Water/Air Oil Air/Water
Working Pressure 5000 PSI 1250 PSI 250 PSI 2000 PSI 1250 PSI 250 PSI
Shaft Material Stainless Steel Stainless Steel Stainless Steel Stainless Steel Stainless Steel Stainless Steel
O’ring Material Viton Viton Viton Viton Viton Viton
Housing Material Zinc Coated Brass Zinc Coated Brass Zinc Coated Brass Zinc Coated Brass Zinc Coated Brass Zinc Coated Brass
Swivel Inlet 3/8″ BSPF 1/2″ BSPF 1/2″ BSPF 3/4″ BSPM 3/4″ BSPF 3/4″ BSPF
Swivel Outlet 3/8″ BSPF 1/2″ BSPF 1/2″ BSPF 3/4″ BSPM 3/4″ BSPF 3/4″ BSPF
Hose ID 3/8″ 1/2″ 1/2″ n/a 3/4″ 3/4″
Supplied Length 15 m 15 m 20 m 15 m 15 m 20 m
Outlet 3/8″ 1/2″ 1/2″ n/a 3/4″ 3/4″

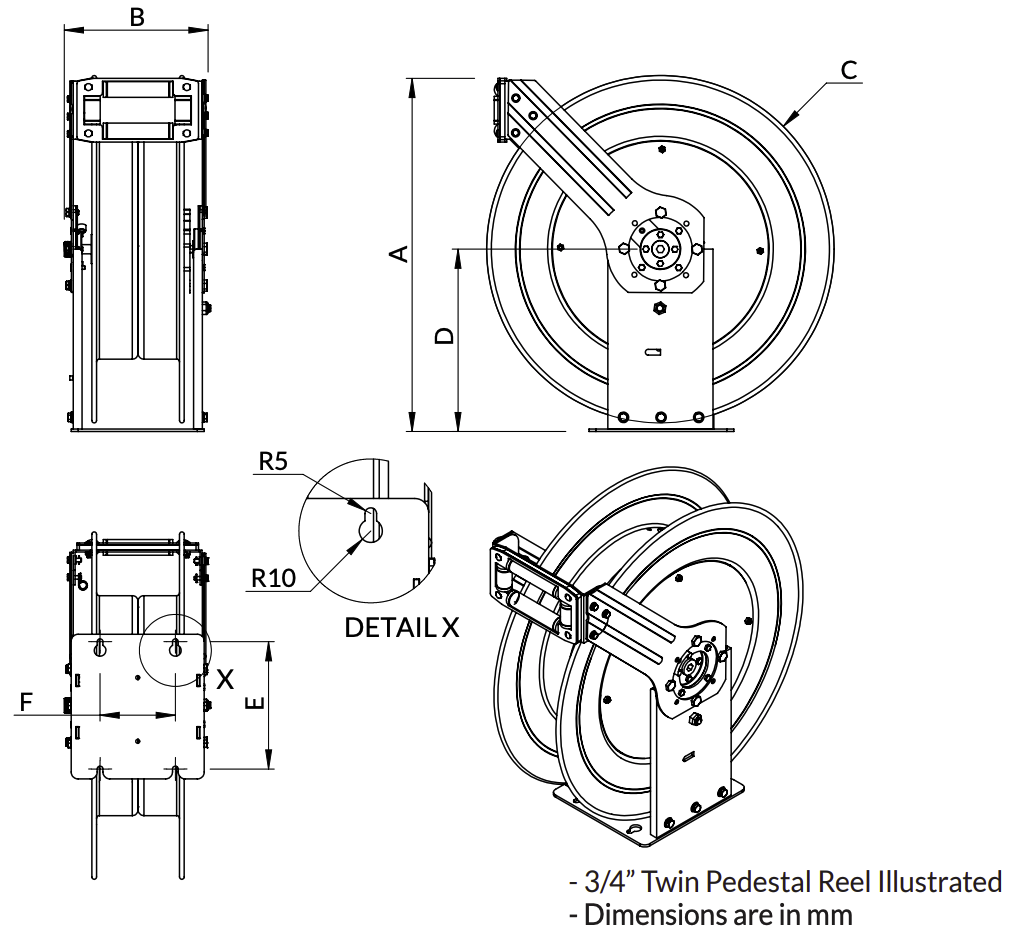

Nominal Size A B C D E F G H Min Bend Radius
3/8″ 550 180 Ø515 280 216 130 R4.8 R10 140
1/2″ 550 180 Ø515 280 216 130 R4.8 R10 140
1/2″ 610 248 Ø600 315 220 130 R5 R10 190
