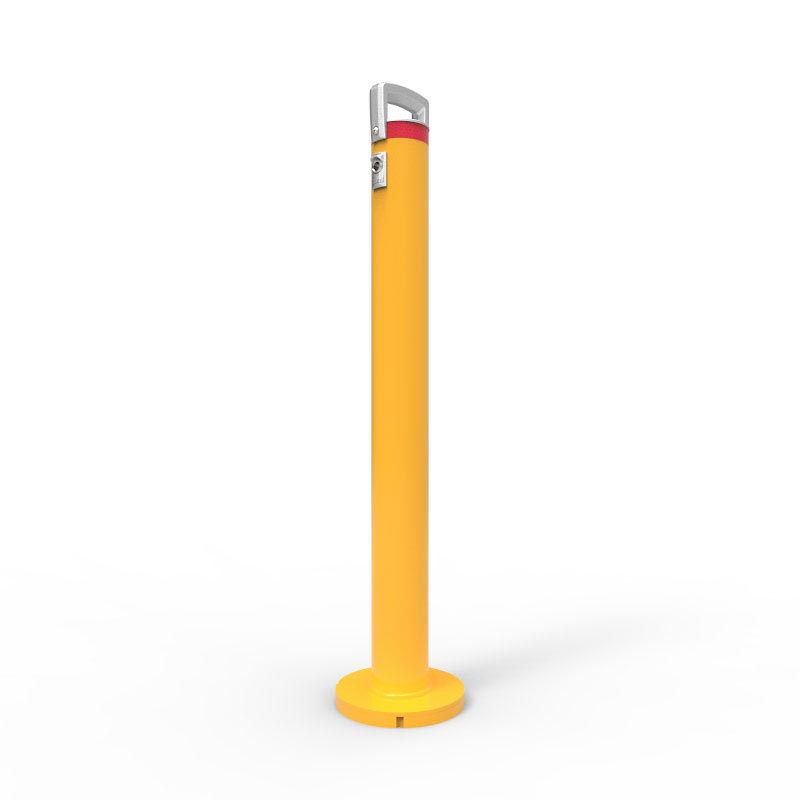

Removable Bollards Surface Mount Cam-Lok
- Galvanised, powder coated or 316 stainless-steel finishes
- Choice of premium or economy lock and keys
- Heavy-duty receiver shoe may be used as a storage unit for inactive bollards
- Fixing points not accessible when bollard is in use
- No core drilling or slab penetration
Heavy-duty surface mount removable bollards with a choice of premium or economy locking systems.
Surface mount removable bollards are designed for applications where the floor cannot be core drilled or penetrated, such as suspended, prestressed slabs or clean areas such as food preparation or pharmaceutical processing. They are available in two different models, the Cam-lok and the Tee-lok. Structurally both models are identical but offer different locking systems depending on the level of security required.

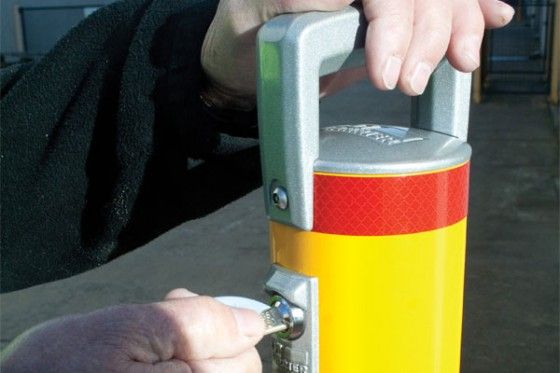

The Premium Cam-lok model is a heavy-duty bollard that locks into the surface mounted receiver shoe via an internal locking system which utilises a high security cam lock with registered keys. 2 keys are supplied per order. Additional keys may be purchased if required. Keys can be keyed alike or keyed different.
The Economy Cam-Lok model offers the same heavy-duty bollard specifications but with a basic lock and key system that is not aligned to a registered security database. These keys can only be duplicated by supplying the original key at time of cutting.

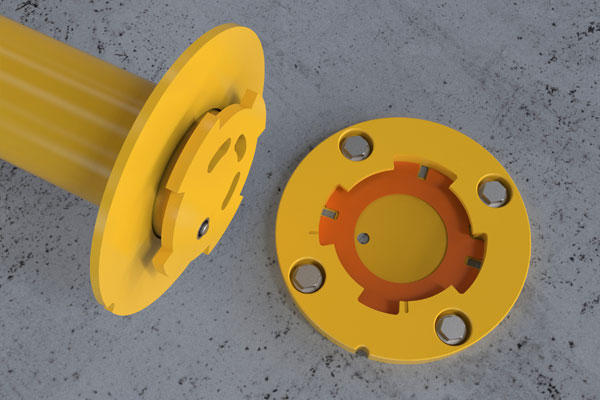

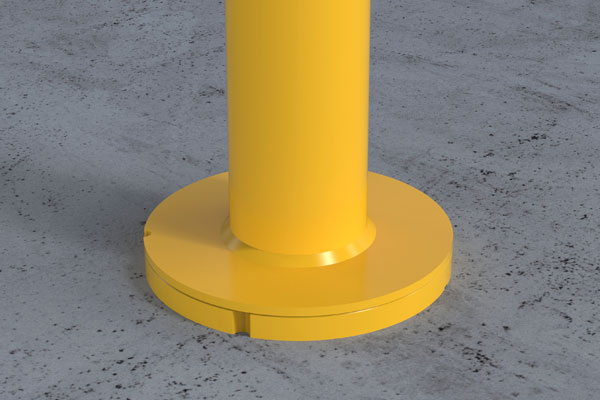

Bollards and receiver shoes are sold separately, and additional shoes may be purchased to use for storage purposes in an alternative location when the bollards are not in use. The fixing points within the bollard receiver shoe are not accessible when the bollard is in use, providing maximum security. Installation is simple and easy with the receiver shoe only requiring 4 x 12mm fixing holes drilled to 65mm deep.
Bollards are available in plain galvanised finishes, a standard safety yellow powder coated finish or custom powder coated colours upon request. The sleek stainless steel version has a flat top with no handle.
| Code | Description | Bollard Diameter | Bollard Height | Bollard Wall Thickness | Base Plate Diameter | Shoe Height | Weight (kg) | Finish |
| SMCL | Cam-lok Surface Mounted Removable Bollard 90mm Premium Lock – Galvanised and Powder Coated | 90 | 950 | 5 | 200 | 20 | 12 | HDG+PC |
| SMCLE | Cam-lok Surface Mounted Removable Bollard 90mm Economy Lock – Galvanised and Powder Coated | 90 | 950 | 5 | 200 | 20 | 12 | HDG+PC |
| SMCL-G | Cam-lok Surface Mounted Removable Bollard 90mm Premium Lock – Galvanised | 90 | 950 | 5 | 200 | 20 | 12 | HDG |
| SMCLE-G | Cam-lok Surface Mounted Removable Bollard 90mm Economy Lock – Galvanised | 90 | 950 | 5 | 200 | 20 | 12 | HDG |
| SMCL-SS | Cam-lok Surface Mounted Removable Bollard 90mm Premium Lock – 316 Stainless Steel | 90 | 950 | 3.05 | 200 | 20 | 12 | SS |
| SMCLE-SS | Cam-lok Surface Mounted Removable Bollard 90mm Economy Lock – 316 Stainless Steel | 90 | 950 | 3.05 | 200 | 20 | 12 | SS |
Note: All dimensions in mm. Finish: Hot Dip Galvanised (HDG) only, or Hot Dip Galvanised (HDG) & Powder Coated (PC), or 316 Stainless Steel (SS).
Additional Parts
| Code | Description |
| SMCLH-SS | Cam-lok/Tee-lok Receiver Shoe – 316 Stainless Steel |
| SMCLH-Z | Cam-lok/Tee-lok Receiver Shoe – Zinc Plated |
| SMCLH | Cam-lok/Tee-lok Receiver Shoe – Zinc Plated and Powder Coated Yellow |
