Removable Bollards In-ground Sleeve-Lok
- Available in three diameters with a choice of in-ground sleeves (sold separately).
- Thousands installed in a wide variety of indoor and outdoor applications over a 14 year period.
- Widely used for managing vehicle access in restricted areas. These include industrial sites, parks and gardens and numerous other public space environments.

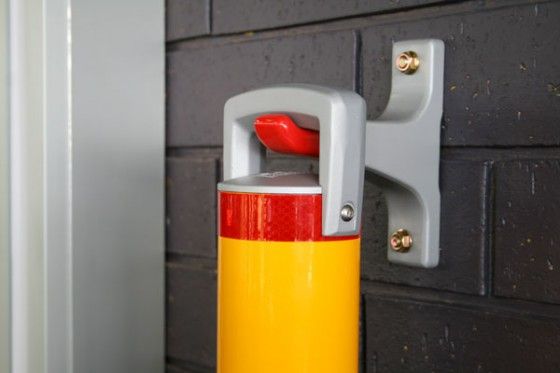

- Sleeve-Loks use a simple padlock design whereby the cap on the in-ground sleeve is secured to a high strength steel shackle welded onto the bollard.
- Sleeve-Lok removable bollards come in two styles. Freestanding and roller door models, for the protection of factory roller shutter doors.
- Cast aluminium caps and handles finished in a silver grey metallic powder coat.
- Galvanised and powder coated or galvanised only.
- Stainless steel models are made from marine grade 316 stainless steel with matching flat caps or aluminium caps and handles.
- Optional chain ring kits available.

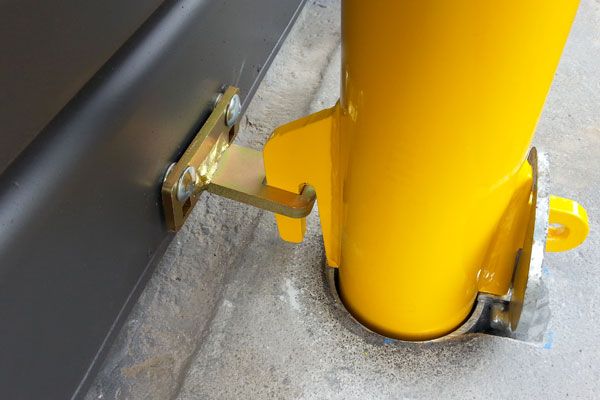

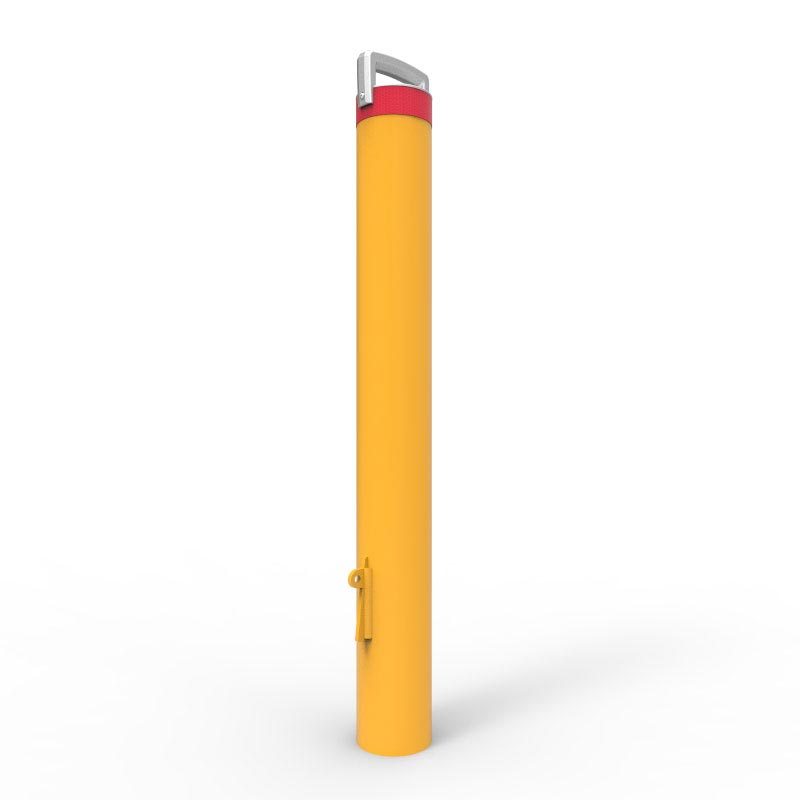

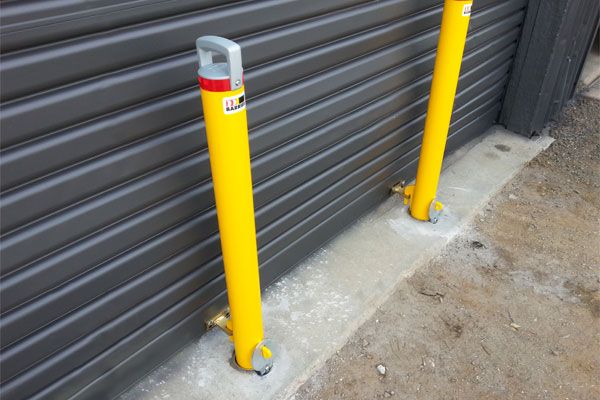

Bollard designed for warehouse roller door protection
The Sleeve-Lok range of removable bollards with their heavy steel construction are well suited to help combat “Ram-raids” on businesses. They have served this security role now for over 12 years with thousands having been installed in all manner of applications. We find that our Sleeve-Loks are also very widely used for managing vehicle access in restricted areas. These include industrial sites, parks and gardens and numerous other public space environments.
Sleeve-Lok removable bollards are differentiated from the Cam-Lok range by their locking method. Where the Cam-Loks use high security locks with an internal locking mechanism, the Sleeve-Loks use a simple padlock design whereby the cap on the in-ground sleeve is secured to a high strength steel shackle welded onto the bollard. Sleeve-Lok removable bollards come in two styles. Freestanding for shop front or public open space installations, and roller door models for the protection of factory roller shutter doors.
In keeping with a greater demand for an aesthetically pleasing design in street furniture and fixtures used in public open spaces, we have undertaken a major re-design of our removable bollard range. This is evident in the smart new cast aluminium caps and handles on the Sleeve-Lok bollards.
Another area of improvement and one where our entire bollard range differs from our competitors, is that they are all hot dip galvanised during manufacture. This includes bollards that have a powder coated finish. This is a significant development as hot dip galvanising has a dramatic impact on reducing corrosion and increasing the service life of the bollard.
| Code | Description | Bollard Diameter | Height Above Ground | Depth Below Ground | Wall Thickness | Weight (kg) | Finish | New Concrete Sleeves | Sleeves Height | Core Drilled Sleeves | Sleeve Height |
| BSL63 | Sleeve-lok Removable Bollard 63mm – Galvanised and Powder Coated | 63 | 900 | 150 | 1.6 | 4.5 | HDG+PC | BSL63S-NC | 300 | BSL63S-CD | 150 |
| BSL63-G | Sleeve-lok Removable Bollard 63mm Rollerdoor – Galvanised | 63 | 900 | 150 | 1.6 | 4.5 | HDG | BSL63S-NC | 300 | BSL63S-CD | 150 |
| BSL90 | Sleeve-lok Removable Bollard 90mm – Galvanised and Powder Coated | 90 | 950 | 200 | 5 | 12 | HDG+PC | BSL90S-NC | 425 | BSL90S-CD | 225 |
| BSL90-G | Sleeve-lok Removable Bollard 90mm – Galvanised | 90 | 950 | 200 | 5 | 12 | HDG | BSL90S-NC | 425 | BSL90S-CD | 225 |
| BSL90-SS | Sleeve-lok Removable Bollard 90mm – 316 Stainless Steel | 90 | 883 | 200 | 3.05 | 9 | SS | BSL90SS-NC | 425 | BSL90SS-CD | 225 |
| BSL90-SSH | Sleeve-lok Removable Bollard 90mm – 316 Stainless Steel with Handle | 90 | 950 | 200 | 3.05 | 9 | SS+H | BSL90SS-NC | 425 | BSL90SS-CD | 225 |
| BSL90RD | Sleeve-lok Removable Bollard 90mm Rollerdoor – Galvanised and Powder Coated | 90 | 950 | 200 | 5 | 12.2 | HDG+PC | BSL90S-NC | 425 | BSL90S-CD | 225 |
| BSL90RD-G | Sleeve-lok Removable Bollard 90mm Rollerdoor – Galvanised | 90 | 950 | 200 | 5 | 12.2 | HDG | BSL90S-NC | 425 | BSL90S-CD | 225 |
| BSL140 | Sleeve-lok Removable Bollard 140mm – Galvanised and Powder Coated | 140 | 1050 | 200 | 5 | 21 | HDG+PC | BSL140S-NC | 425 | BSL140S-CD | 225 |
| BSL140-G | Sleeve-lok Removable Bollard 140mm – Galvanised | 140 | 1050 | 200 | 5 | 21 | HDG | BSL140S-NC | 425 | BSL140S-CD | 225 |
| BSL140-SS | Sleeve-lok Removable Bollard 140mm – 316 Stainless Steel | 140 | 983 | 200 | 3.4 | 21 | SS | BSL140SS-NC | 425 | BSL140SS-CD | 225 |
| BSL140-SSH | Sleeve-lok Removable Bollard 140mm – 316 Stainless Steel with Handle | 140 | 1050 | 200 | 3.4 | 21 | SS+H | BSL140SS-NC | 425 | BSL140SS-CD | 225 |
Note: All dimensions in mm. Finish: Hot Dip Galvanised (HDG) only/and Powder Coated (PC), or 316 Stainless Steel (SS) only/and Aluminium cap with handle (H).
Additional Parts
| Code | Description |
| BSL140S-CD | Sleeve-lok Removable Bollard 140mm Core Drilled Sleeve |
| BSL140SS-CD | Sleeve-lok Removable Bollard 140mm Core Drilled Sleeve – Stainless Lid |
| BSL140S-NC | Sleeve-lok Removable Bollard 140mm New Concrete Sleeve |
| BSL140SS-NC | Sleeve-lok Removable Bollard 140mm New Concrete Sleeve – Stainless Lid |
| BSL63S-CD | Sleeve-lok Removable Bollard 63mm Core Drilled Sleeve |
| BSL63S-NC | Sleeve-lok Removable Bollard 63mm New Concrete Sleeve |
| BSL90S-CD | Sleeve-lok Removable Bollard 90mm Core Drilled Sleeve |
| BSL90SS-CD | Sleeve-lok Removable Bollard 90mm Core Drilled Sleeve – Stainless Lid |
| BSL90S-NC | Sleeve-lok Removable Bollard 90mm New Concrete Sleeve |
| BSL90SS-NC | Sleeve-lok Removable Bollard 90mm New Concrete Sleeve – Stainless Lid |
