Removable Bollards In-Ground Cam-Lok
- Cam-Lok removable bollards come in two styles. Freestanding and roller door models for the protection of factory roller shutter doors.
- Highest quality ‘Bi-Lock’ removable core lock mechanisms with security registered keying.
- Cast aluminium caps and handles finished in a Silver-Grey powder coat.
- Two keys provided per order with additional keys available on request (keyed alike option available).
- Galvanised and powder coated or galvanised only.
- Stainless steel models are made from marine grade 316 stainless steel with matching flat caps or aluminium caps and handles.
- Optional chain ring kits available.
The Cam-lok range of removable bollards with their heavy steel construction were originally designed to help combat ‘Ram-raids’ on businesses. While they still serve this security role with thousands of them now in the field, we find that our Cam-lok’s are being used more and more in architectural environments for managing vehicle access in restricted areas.

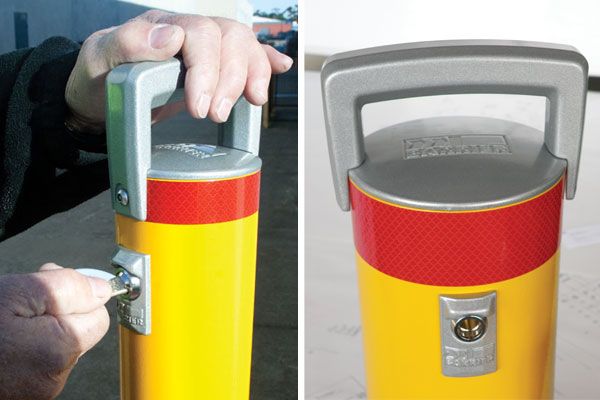

These architectural applications vary from the security role in that there is a greater demand for an aesthetically pleasing design, hence the use of polished stainless steel instead of the more industrial powder coated finishes. However some things never change, one of these is our insistence on using only the very highest quality ‘Bi-lock’ removable core lock mechanisms with security registered keying.
These are very expensive and make up a substantial part of the cost of the finished bollard, which is why most competitors removable bollards currently on the market use cheap, very poor quality locks that are unreliable and readily breached. While this may reduce the initial investment, it compromises the effectiveness of the bollard and the long term security of your assets.

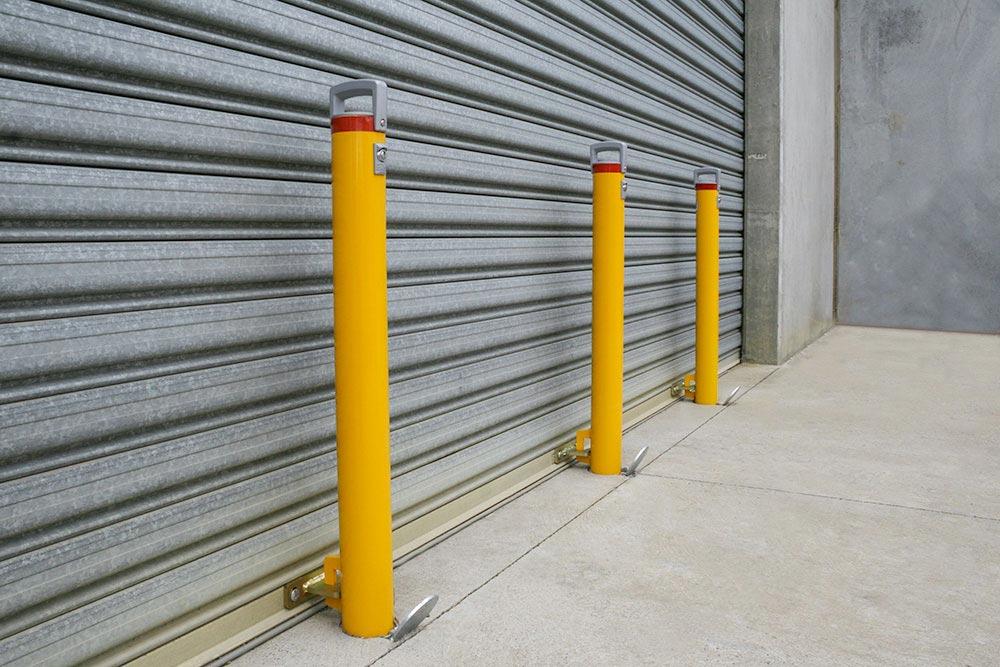

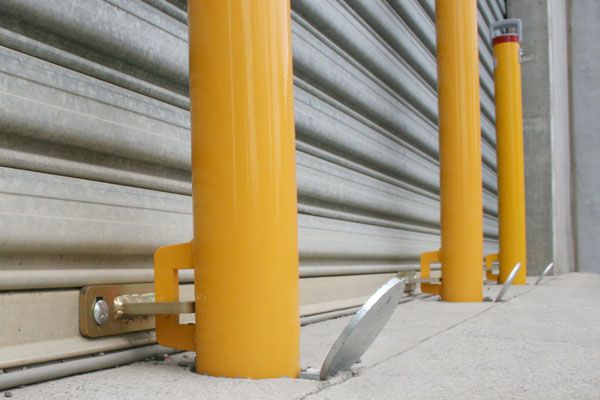

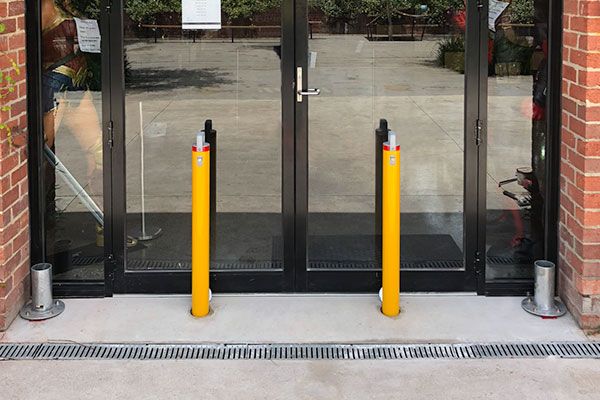

Another area where our product differs from most is that all our steel bollards (including those with powder coated finishes) are hot dip galvanised during manufacture. Alternatively our stainless steel models are made from marine grade 316. Cam-lok removable bollards come in two styles. Freestanding for shop front or public open space installations, and roller door models for the protection of factory roller shutter doors.
Our Cam-Lok removable in-ground bollards are now available with the choice of high quality cam locks with security registered keys, OR economy cam locks at a reduced cost. All other structural features and accessories remain the same for both ranges.

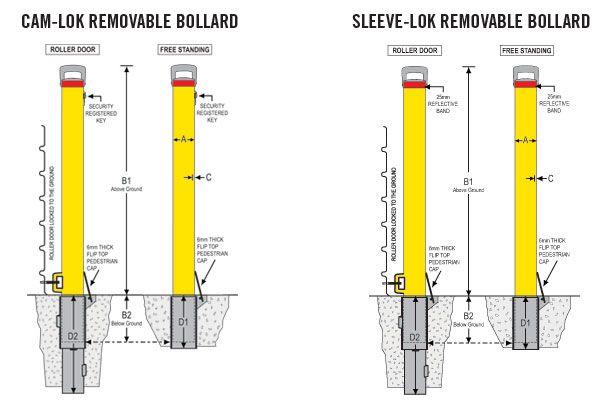

| Code | Description | Bollard Diameter | Height Above Ground | Depth Below Ground | Wall Thickness | Weight | Finish | New Concrete Sleeves 425 mm High | Core Drilled Sleeves 225 mm High |
| BCL90* | Cam-lok Removable Bollard 90mm Premium Lock – Galvanised and Powder Coated | 90 | 950 | 200 | 5 | 12.3 | HDG+PC | BCL90S-NC | BCL90S-CD |
| BCL90E* | Cam-lok Removable Bollard 90mm Economy Lock – Galvanised and Powder Coated | 90 | 950 | 200 | 5 | 12.3 | HDG+PC | BCL90S-NC | BCL90S-CD |
| BCL90-G* | Cam-lok Removable Bollard 90mm Premium Lock – Galvanised | 90 | 950 | 200 | 5 | 12.3 | HDG | BCL90S-NC | BCL90S-CD |
| BCL90E-G* | Cam-lok Removable Bollard 90mm Economy Lock – Galvanised | 90 | 950 | 200 | 5 | 12.3 | HDG | BCL90S-NC | BCL90S-CD |
| BCL90-SS* | Cam-lok Removable Bollard 90mm Premium Lock – 316 Stainless Steel | 90 | 883 | 200 | 3.05 | 9 | SS | BCL90SS-NC | BCL90SS-CD |
| BCL90E-SS* | Cam-lok Removable Bollard 90mm Economy Lock – 316 Stainless Steel | 90 | 883 | 200 | 3.05 | 9 | SS | BCL90SS-NC | BCL90SS-CD |
| BCL90-SSH* | Cam-lok Removable Bollard 90mm Premium Lock – 316 Stainless Steel with Handle | 90 | 950 | 200 | 3.05 | 9 | SS+H | BCL90SS-NC | BCL90SS-CD |
| BCL90E-SSH* | Cam-lok Removable Bollard 90mm Economy Lock – 316 Stainless Steel with Handle | 90 | 950 | 200 | 3.05 | 9 | SS+H | BCL90SS-NC | BCL90SS-CD |
| BCL90RD* | Cam-lok Removable Bollard 90mm Roller Door Premium Lock – Galvanised and Powder Coated | 90 | 950 | 200 | 5 | 12.5 | HDG+PC | BCL90S-NC | BCL90S-CD |
| BCL90RDE* | Cam-lok Removable Bollard 90mm Rollerdoor Economy Lock – Galvanised and Powder Coated | 90 | 950 | 200 | 5 | 12.5 | HDG+PC | BCL90S-NC | BCL90S-CD |
| BCL90RD-G* | Cam-lok Removable Bollard 90mm Roller Door Premium Lock – Galvanised | 90 | 950 | 200 | 5 | 12.5 | HDG | BCL90S-NC | BCL90S-CD |
| BCL90RDE-G* | Cam-lok Removable Bollard 90mm Rollerdoor Economy Lock – Galvanised | 90 | 950 | 200 | 5 | 12.5 | HDG | BCL90S-NC | BCL90S-CD |
| BCL140* | Cam-lok Removable Bollard 140mm Premium Lock – Galvanised and Powder Coated | 140 | 1050 | 200 | 5 | 21 | HDG+PC | BCL140S-NC | BCL140S-CD |
| BCL140E* | Cam-lok Removable Bollard 140mm Economy Lock – Galvanised and Powder Coated | 140 | 1050 | 200 | 5 | 21 | HDG+PC | BCL140S-NC | BCL140S-CD |
| BCL140-G* | Cam-lok Removable Bollard 140mm Premium Lock – Galvanised | 140 | 1050 | 200 | 5 | 21 | HDG | BCL140S-NC | BCL140S-CD |
| BCL140E-G* | Cam-lok Removable Bollard 140mm Economy Lock – Galvanised | 140 | 1050 | 200 | 5 | 21 | HDG | BCL140S-NC | BCL140S-CD |
| BCL140-SS* | Cam-lok Removable Bollard 140mm Premium Lock – 316 Stainless Steel | 140 | 983 | 200 | 3.4 | 21 | SS | BCL140SS-NC | BCL140SS-CD |
| BCL140E-SS* | Cam-lok Removable Bollard 140mm Economy Lock – 316 Stainless Steel | 140 | 983 | 200 | 3.4 | 21 | SS | BCL140SS-NC | BCL140SS-CD |
| BCL140-SSH* | Cam-lok Removable Bollard 140mm Premium Lock – 316 Stainless Steel with Handle | 140 | 1050 | 200 | 3.4 | 21 | SS+H | BCL140SS-NC | BCL140SS-CD |
| BCL140E-SSH* | Cam-lok Removable Bollard 140mm Economy Lock – 316 Stainless Steel with Handle | 140 | 1050 | 200 | 3.4 | 21 | SS+H | BCL140SS-NC | BCL140SS-CD |
Note: All dimensions in mm. Finish: Hot Dip Galvanised (HDG) only/and Powder Coated (PC), or 316 Stainless Steel (SS) only/and Aluminium cap with handle (H). *Each order of one or more bollards is supplied with TWO registered keys. **Additional keys are available to purchase separately.
Additional Parts
| Code | Description |
| BCLRDB | BCL Rollerdoor Bracket |
| BCLKEY | Cam-lok Additional Registered Key |
| BCL140S-CD | Cam-lok Removable Bollard 140mm Core Drilled Sleeve |
| BCL140SS-CD | Cam-lok Removable Bollard 140mm Core Drilled Sleeve – Stainless Steel Lid |
| BCL140S-NC | Cam-lok Removable Bollard 140mm New Concrete Sleeve |
| BCL140SS-NC | Cam-lok Removable Bollard 140mm New Concrete Sleeve – Stainless Steel Lid |
| BCL90S-CD | Cam-lok Removable Bollard 90mm Core Drilled Sleeve |
| BCL90SS-CD | Cam-lok Removable Bollard 90mm Core Drilled Sleeve – Stainless Steel Lid |
| BCL90S-NC | Cam-lok Removable Bollard 90mm New Concrete Sleeve |
| BCL90SS-NC | Cam-lok Removable Bollard 90mm New Concrete Sleeve – Stainless Steel Lid |
| BCLKEY-E | Economy Cam-lok Additional Key |
