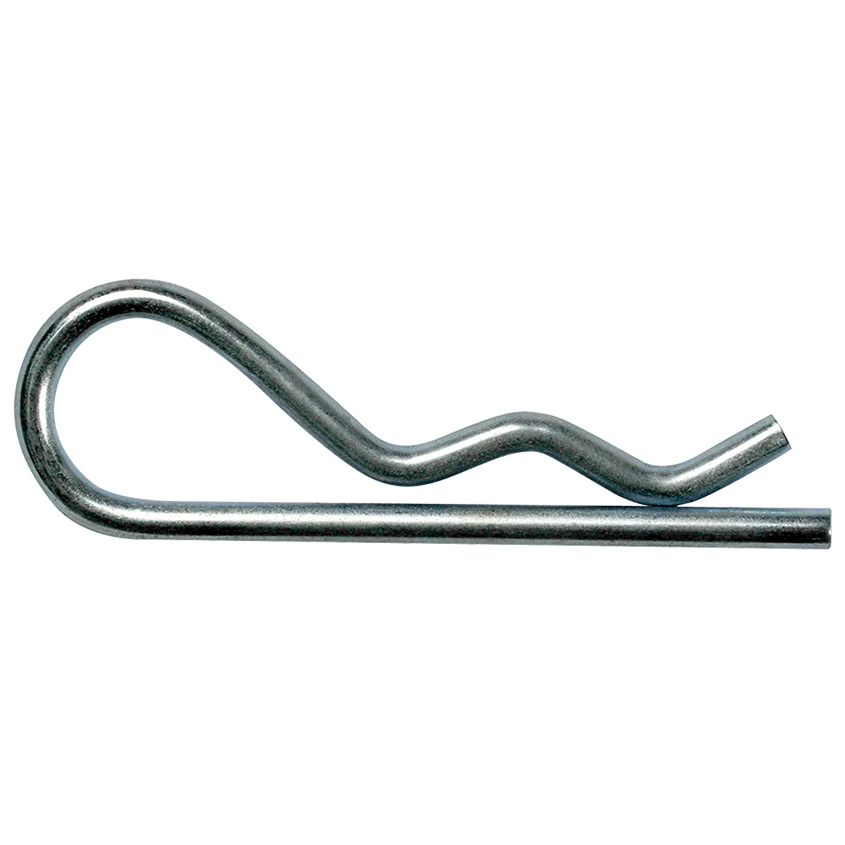

R Clip
Austlift R-Clips are commonly used as a removable securing pin for shafts.
- Pin sizes from 3mm to 6mm available.
- Made from low carbon steel and zinc plated.
WARNING – NOT FOR LIFTING APPLICATIONS

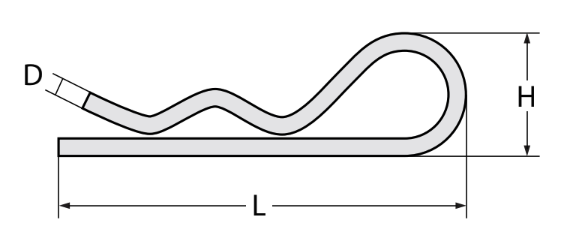

| CODE | SIZE (mm) | Wt. (kg/ea) | DESCRIPTION | DIMENSIONS (mm) | ||
|---|---|---|---|---|---|---|
| D | L | H | ||||
| 701203 | 3 | 0.008 | Suits 10-12mm Shaft | 3 | 67 | 20 |
| 701204 | 4 | 0.016 | Suits 12-22mm Shaft | 4 | 88 | 28 |
| 701205 | 5 | 0.034 | Suits 16-27mm Shaft | 5 | 106 | 35 |
| 701206 | 6 | 0.058 | Suits 19-32mm Shaft | 6 | 120 | 44 |
