PR-Rail Gate
- Self-closing operation.
- Post, wall or in-line mounting.
- Supplied with 1.5 metre aluminium rail.
- Can swing inward or outward.
- Economical single gate.
- Adjustable spring tension.
- Aluminium rails include hi-vis reflective tape.
- Full installation service available.

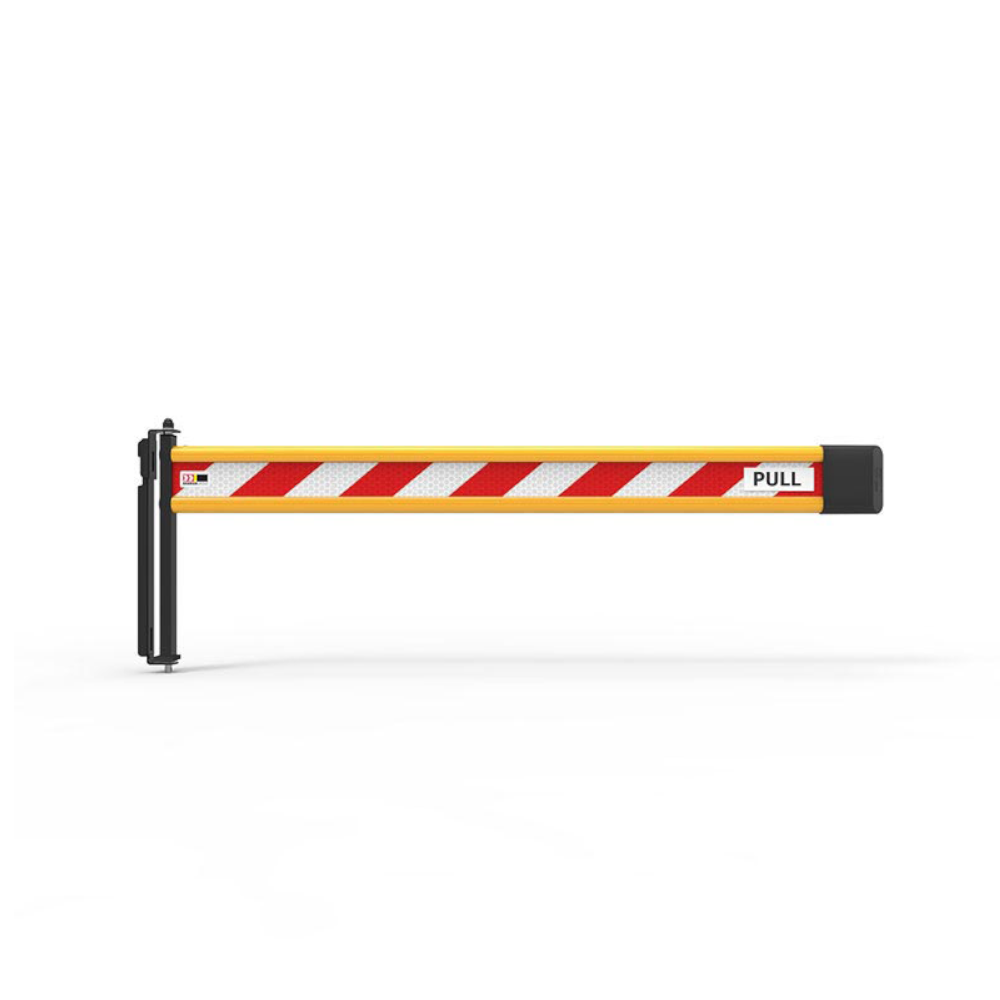

Self-closing aluminium rail gates for rail, post or wall mount applications
PR-Rail industrial self-closing gates are designed to complement the PR-Rail fencing system by being directly mounted onto the posts or rails, or alternatively, fixed onto a solid wall. This economical single gate features an adjustable spring tension system that allows the self-closing inward or outward operation. The aluminium rail is powder coated Yellow and includes a hi-vis reflective Red/White diagonal tape.
| Code | Description | Dimensions | Standard Rail Length | MAX Recommended Rail Length | MIN Recommended Rail Length | Clear Opening INCLUDES Base Plates | Clear Opening EXCLUDES Base Plates | Floor to Top of Rail |
| PRG1500-PA | PR-Rail Gate Assembly | 1610 x 75 x 550 mm | 1500 mm | 1500 mm | 560 mm | 1490 mm | N/A | 990 mm |
Fixings
| Code | Image | Description |
| KIT23 |  |

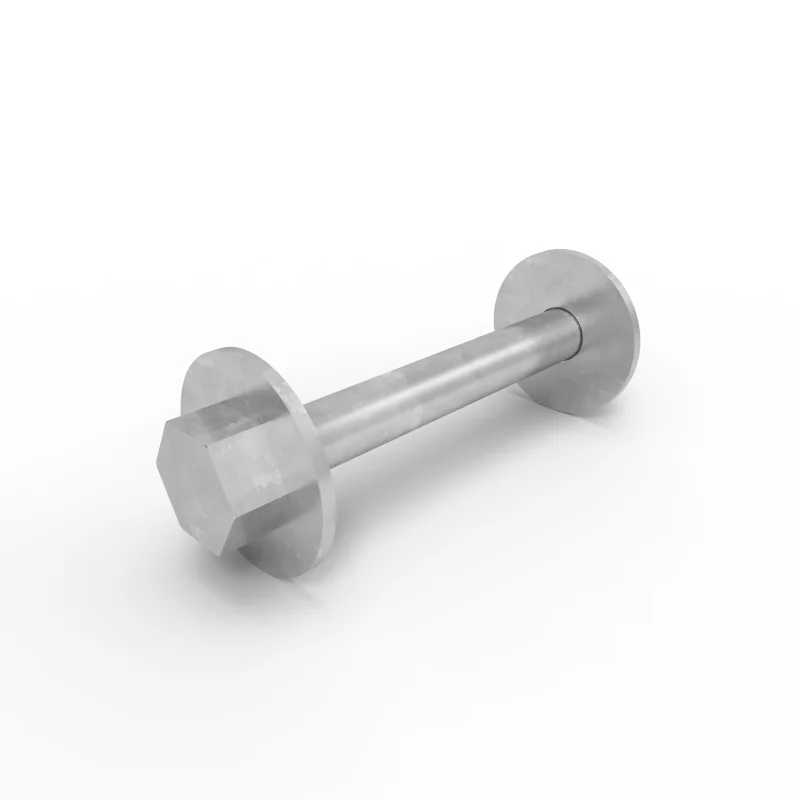

Fixing Kit for Gate to Post – suits up to 63mm Diameter Post |
| KIT24 |  |
Fixing Kit for Gate to Post – suits up to 90mm Diameter Post |
