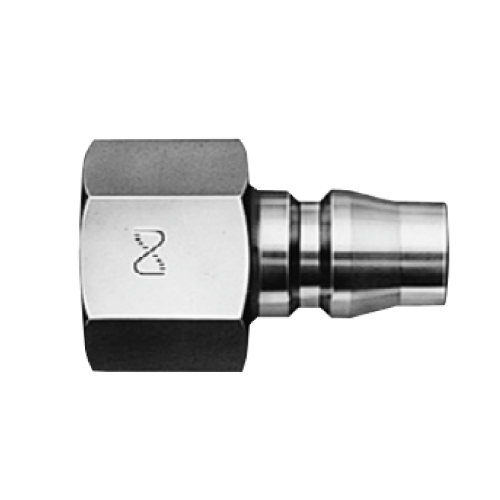

PF Type Plug and Female Thread Hi Cupla – Nitto
From factory air line to pneumatic tool connection, available in various body materials, sizes and end configurations. Excellent durability.
- An excellent general purpose coupling for connecting factory air supply to pneumatic tools.
- Steel coupling is suitable for air. Brass or stainless steel is suitable for water. Note that fluid will come out from the plug when disconnected.
- Critical structural parts of steel models are heat-treated for increased strength giving greater durability and resistance to wear.
- Available in various body materials, sizes and end configurations applicable to a wide range of applications.

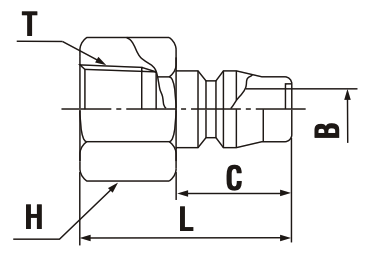

| Model | Application | Mass (g) Steel | Mass (g) Brass | Mass (g) S/Steel | L (mm) | H (WAF) | C (mm) | T (mm) | øB (mm) |
| 20PF | R 1/4 | 28 | 31 | 29 | 36 | Hex.17 | 20 | Rc 1/4 | 7.5 |
| 30PF | R 3/8 | 35 | 41 | 38 | 37 | Hex.21 | 20 | Rc 1/4 | 7.5 |
| 40PF | R 1/2 | 69 | 76 | 70 | 38 | Hex.29 | 20 | Rc 1/2 | 7.5 |
| 400PF | R 1/2 | 82 | 86 | 81 | 41 | Hex.29 | 23 | Rc 1/2 | 13 |
| 600PF | R 3/4 | 115 | 124 | 115 | 45 | Hex.35 | 23 | Rc 3/4 | 13 |
| 800PF | R 1 | 189 | 207 | 190 | 54 | Hex.41 | 23 | Rc 1 | 13 |
Not suitable for vacuum application in either connected or disconnected condition.
Fluid must run form socket to plug.
